ABB 1SVR405650R0200 CR-PLC Socket - UL 508
Part Number: 1SVR405650R0200
Quick Summary
The ABB 1SVR405650R0200 CR-PLC Socket is a logical socket for PCB relays used in compact automation panels. Engineers often struggle with wiring errors and space constraints when mounting 1- or 2-c/o CR-P relays in crowded control cabinets. This solution carries UL 508, CE and CSA/cURus certifications, reflecting robust global compliance. Its modular design and spring-terminal wiring streamline installation and serviceability, while accessories like function modules, holders, and markers improve labeling and future upgrades. For system integrators seeking reliable relay interfacing, this socket delivers predictable performance and minimizes downtime in breakout cabinets and machine control panels.
Product Information
Extended Description

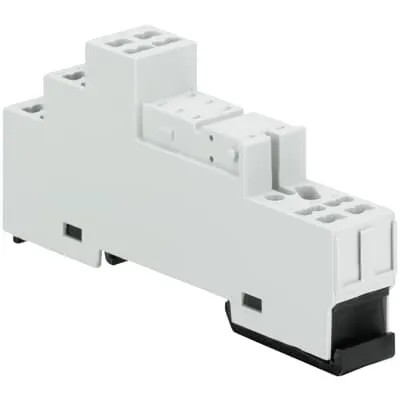

1SVR405650R0200 ABB: The CR-PLC socket is from the CR-P (pcb) relay range. The logical socket is suitable for CR-P relays with 1 or 2 c/o (SPDT) output contacts. The socket has spring connection terminals. Pluggable function modules, holder and marker are available as accessories.
EAN
4013614528583
Minimum Order Quantity
10 piece
Customs Tariff Number
85366990
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-MxLC, CR-PLC sockets
Product Net Width
16 mm
Product Net Height
45.2 mm
Product Net Depth / Length
97 mm
Product Net Weight
0.042 kg
Function
Accessory for interface relays CR-P
Sub-Function
Socket for PCB relays
Sub-Function 2
Logical socket for pcb relay 1 c/o or 2 c/o
Rated Operational Voltage
250 V
Output
none
Terminal Type
Spring Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 2 A
Rated Insulation Voltage (Ui)
5 V
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61984 | UL 508
Connecting Capacity Main Circuit UL/CSA
Flexible with Ferrule 2x 16 AWG | Rigid 2x 24-16 AWG | Stranded 2 x 24-16 AWG
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +70 °C
Maximum Operating Altitude Permissible
2000 m
RoHS Information
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
RoHS Status
Following EU Directive 2011/65/EU
CSA Certificate
CSA Certificate – Sockets and function modules for pluggable interface relays CR-S, CR-P, CR-M, CR-U
cURus Certificate
cURus508_E244328
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
Package Level 1 Units
box 10 piece
Package Level 1 Width
100 mm
Package Level 1 Depth / Length
82 mm
Package Level 1 Height
84 mm
Package Level 1 Gross Weight
0.422 kg
Package Level 1 EAN
4013614380174
Object Classification Code
K
ETIM 7
EC001456 - Relay socket
ETIM 8
EC001456 - Relay socket
ETIM 9
EC001456 - Relay socket
eClass
V11.0 : 27371603
UNSPSC
39122335
E-Number (Norway)
4187349
Feature: Spring-terminal socket compatible with CR-P PCB relays for 1 c/o or 2 c/o SPDT outputs. Business impact: secure, vibration-tolerant connections that reduce wiring errors and maintenance time. Application: automation panels and control cabinets where space is at a premium. Feature: Pluggable function modules, holder and marker accessories. Business impact: scalable labeling and easy customization for future upgrades, improving traceability and serviceability. Application: production lines with frequent configuration changes and multiple relay blocks. Feature: Wide electrical ratings and safe construction — 250 V, (230 V) 2 A AC-12. Business impact: supports common control circuits with predictable current handling and enhanced insulation margin. Application: PLC interfaces and interface-relay circuits in industrial environments. Feature: Spring-terminal type and compact form factor (16 mm width, 45.2 mm height, 97 mm depth). Business impact: compact footprint enables dense panel layouts and easier harness routing. Application: mass deployment across automation racks and distributed control systems. Feature: Compliance and safety certifications (UL 508, CE, UKCA, CSA, cURus, EAC). Business impact: accelerates approvals for global deployments and reduces project risk. Application: multinational machines and integrated systems requiring ongoing compliance. Feature: Environmental and mechanical resilience — operation -40 to +70 °C, up to 2000 m altitude. Business impact: reliable performance in harsh factory floors and high-altitude installations. Application: outdoor or rugged indoor environments where ambient conditions vary.
