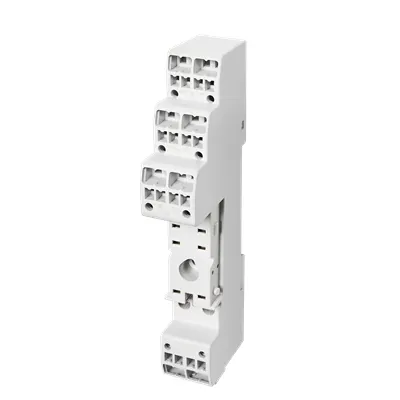

ABB 1SVR405650R0310 CR-PLP Socket - UL 508 Certified
Part Number: 1SVR405650R0310
Quick Summary
CR-PLP socket provides push-in connection for CR-P PCB relays in compact control panels. Engineers often face time-consuming wiring and unreliable terminations when assembling relays in crowded cabinets, risking signal integrity. This socket complies with UL 508, CE, and CSA CAN/CSA 22.2 No.14, plus UKCA where applicable, supporting worldwide deployments. By integrating pluggable function modules, holders, and markers, it enables faster, safer installations and easier maintenance, delivering tangible value through reduced wiring time and lower total cost of ownership.
Product Information
Extended Description
1SVR405650R0310 ABB: The CR-PLP socket is from the CR-P (pcb) relay range. The logical socket with safety isolation is suitable for CR-P relays with 1 or 2 c/o (SPDT) output contacts. The socket has push-in connection terminals. Pluggable function modules, holder and marker are available as accessories.
EAN
4053546062113
Minimum Order Quantity
10 piece
Customs Tariff Number
85366990
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-MxLP, CR-PLP sockets
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
15.8 mm
Product Net Height
98.4 mm
Product Net Depth / Length
42.5 mm
Product Net Weight
0.036 kg
Function
Accessory for interface relays CR-P
Sub-Function
Socket for PCB relays
Sub-Function 2
Standard socket for pcb relay 1 c/o or 2 c/o
Rated Operational Voltage
250 V
Output Signal
250 V / 10 A
Terminal Type
Push-in Spring Terminals
Rated Insulation Voltage (Ui)
2000 V
Wire Stripping Length
10 mm
Recommended Screw Driver
2.5
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61984 | UL 508
Connecting Capacity Main Circuit UL/CSA
Flexible with Ferrule 2x 20-17 AWG | Rigid 2x 20-16 AWG | Stranded 2 x 20-16 AWG
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +70 °C
Maximum Operating Altitude Permissible
2000 m
RoHS Information
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
RoHS Status
Following EU Directive 2011/65/EU
CSA Certificate
CSA Certificate – Sockets and function modules for pluggable interface relays CR-S, CR-P, CR-M, CR-U
cURus Certificate
cURus508_E244328
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
Package Level 1 Units
carton 10 piece
Package Level 1 Width
102 mm
Package Level 1 Depth / Length
163 mm
Package Level 1 Height
50 mm
Package Level 1 Gross Weight
0.401 kg
Package Level 1 EAN
4053546062120
Object Classification Code
K
ETIM 7
EC001456 - Relay socket
ETIM 8
EC001456 - Relay socket
ETIM 9
EC001456 - Relay socket
eClass
V11.0 : 27371603
UNSPSC
39122335
E-Number (Norway)
4187814
Push-in Spring Terminals enable quick, tool-free wiring, reducing installation time and human error while maintaining solid contact reliability for 1C/O or 2C/O CR-P relays. The resulting efficiency translates directly to faster panel builds and easier maintenance in the field. The socket provides safety isolation and robust performance with a 250 V rated operational voltage and 10 A output, supporting common automation circuits and minimizing the need for additional adapters. With rated insulation up to 2000 V, it delivers reliable isolation even in higher-voltage control environments, helping you stay compliant and reduce risk. The compact footprint (15.8 mm width, 98.4 mm height, 42.5 mm depth) eases panel design and cable routing, while the -40 to +70 °C operating range ensures dependable operation in harsh environments. RoHS-compliant and UL/CSA/CE certified, the product supports easy batch procurement and consistent quality across projects. Accessory options for marking, mounting, and function modules simplify lifecycle management and future upgrades, aligning with modular automation strategies and cost-optimised maintenance planning.
Get a Quick Quote for a ABB 1SVR405650R0310
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405650R0310?
Enquire Now
FAQs
The CR-PLP socket is designed for CR-P PCB relays with 1 c/o or 2 c/o (SPDT) outputs. Compatibility should be confirmed against the relay's footprint and mounting provisions, and the socket works with standard push-in terminal wiring. When paired correctly, you gain reliable signal transfer with safe isolation in compact panels.
Yes. The socket operates from -40 to +70 °C and is specified for up to 2000 V insulation, supporting reliable performance in rugged industrial environments and in applications requiring high isolation margins. This makes it suitable for machine control panels, HVAC systems, and safety-related circuits.
Push-in terminals allow tool-free or minimal-tool wiring, reducing labor time and the risk of loose connections. This is especially beneficial when wiring multiple CR-P relays in dense control cabinets, where fast, repeatable terminations improve overall build quality and serviceability.
The CR-PLP socket carries UL 508, CE, UKCA, CSA, CAN/CSA 22.2 No.14, and RoHS compliance, reflecting broad regulatory acceptance for global projects. Verifying these certifications helps ensure your panel meets safety, electromagnetic compatibility, and environmental requirements in multiple markets.
The combination of tool-free wiring, reliable safety isolation, and straightforward accessory integration reduces installation time and maintenance effort. Over a typical project, this translates to lower labor costs, fewer field service calls due to wiring issues, and faster deployment of updated relay configurations.
