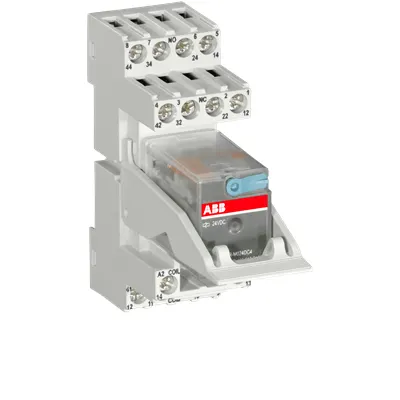

ABB CR-M3LSH Socket for CR-M Relays - UL 508, CE
Part Number: 1SVR405651R5100
Quick Summary
ABB CR-M3LSH Socket for CR-M relays enables a compact, plug-in interface for miniature relay control in industrial panels. Field wiring and downtime frustration are common when relays fail; this socket simplifies connections with screw terminals and modular fit. Certified to UL 508, cURus, CE and CAN/CSA standards, it meets global safety and compliance requirements across panels. Designed for 24 V AC control and 250 V output, it supports reliable operation and fast maintenance in automation environments. Overall, the CR-M3LSH socket reduces spare parts and downtime while enabling seamless CR-M interface integration. With pluggable modules and markers available as accessories, installation is even faster.
Product Information
Extended Description
1SVR405651R5100 ABB: The CR-M3LSH socket is from the CR-M (miniature) relay range. The logical socket is suitable for CR-M relays with 3 c/o (SPDT) output contacts. The socket has screw connection terminals. Pluggable function modules, holder and marker are available as accessories.
EAN
4053546047837
Minimum Order Quantity
10 piece
Customs Tariff Number
85366990
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-PLS, CR-PSS, CR-MxLS(H), CR-MxSS, CR-MxSF(B), CR-UxS(M) sockets
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
16 mm
Product Net Height
69 mm
Product Net Depth / Length
76 mm
Product Net Weight
0.061 kg
Function
Pluggable miniature interface relay CR-MX | Accessory for interface relays CR-M
Sub-Function
Relay with built in LED | Socket for miniature relays
Sub-Function 2
Logical socket for miniature relay 3 c/o
Rated Control Supply Voltage (Us)
24 V AC
Rated Operational Voltage
250 V
Output Signal
250 V / 7 A
Terminal Type
Screw Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 10 A
Rated Insulation Voltage (Ui)
2 V
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61984 | UL 508
Connecting Capacity Main Circuit UL/CSA
Flexible with Ferrule 2x 20-16 AWG | Rigid 2x 20-14 AWG | Stranded 2 x 20-14 AWG
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +70 °C
Maximum Operating Altitude Permissible
2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
RoHS Status
Following EU Directive 2011/65/EU
CSA Certificate
CSA Certificate – Sockets and function modules for pluggable interface relays CR-S, CR-P, CR-M, CR-U
cURus Certificate
cURus508_E244328
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
Package Level 1 Units
carton 10 piece
Package Level 1 Width
92 mm
Package Level 1 Depth / Length
220 mm
Package Level 1 Height
65 mm
Package Level 1 Gross Weight
0.707 kg
Package Level 1 EAN
4053546047844
Object Classification Code
K
ETIM 7
EC001456 - Relay socket
ETIM 8
EC001456 - Relay socket
ETIM 9
EC001456 - Relay socket
eClass
V11.0 : 27371603
UNSPSC
39122335
Feature: Socket is designed for CR-M relays with 3 changeover (SPDT) contacts, enabling precise logic wiring and minimizing misconnections. Benefit: reduces wiring errors and rework, improving panel reliability and uptime. Application: control circuits in machine tools and automation racks where space is constrained. Feature: Screw-terminal connections provide robust, vibration-tolerant terminations, reducing loosening under operation. Benefit: fewer intermittent faults and easier field servicing. Application: harsh industrial environments with frequent vibration. Feature: Rated control voltage of 24 V AC and output up to 250 V / 7 A, supporting typical control and signaling loads. Benefit: compatible with standard PLC and safety interlock circuits, simplifying design. Application: PLC-driven control panels and interlock networks. Feature: Full compliance with UL 508, CAN/CSA, CE, and cURus, ensuring regulatory acceptance across regions. Benefit: streamlines audits and accelerates time-to-production. Application: global manufacturing and systems integrators pursuing cross-border deployments. Feature: Accessories like function modules, holders and markers are available, enabling quick customization and diagnostics. Benefit: reduces setup time and simplifies maintenance planning. Application: field upgrades and configuration changes in evolving control systems.
Get a Quick Quote for a ABB 1SVR405651R5100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405651R5100?
Enquire Now
FAQs
To install the CR-M3LSH socket, align the socket with the CR-M relay, insert the plug-in interface correctly, and secure the screw terminals with appropriate conductor sizes (2x20-16 AWG for flexible, 2x20-14 AWG for rigid). Verify 24 V AC control supply is present and that the output contacts can switch up to 250 V at 7 A. After mounting, test continuity and signal integrity. This minimizes downtime and ensures reliable operation within panel layouts constrained by narrow spaces.
Key ratings include a 24 V AC control supply, 250 V output with 7 A maximum switching capacity, and an AC-12 rating of 10 A at 230 V. The socket supports operation from -40 to +70 °C and up to 2000 m altitude, with can/csa, CE, and RoHS compliance. It uses screw terminals for durable connections and is designed for CR-M miniature relays with 3 changeover contacts.
Ideal for machine control panels, automation racks, and safety interlock circuits in manufacturing environments. Its compact 16 mm width and 69 mm height fit tight enclosures, while the 24 V AC control and 250 V output support PLC interfaces and signaling circuits common in automotive, food and beverage, and general industrial automation. The plasmic modular design also suits retrofit projects requiring quick, reliable relay socket replacements.
The socket carries UL 508 and cURus certifications, along with CE marking and CAN/CSA compliance, meeting North American and European safety standards. UKCA is also listed for certain regions, ensuring alignment with evolving regulatory regimes. This broad certification footprint simplifies supplier qualification, audits, and cross-border deployments for global manufacturers.
By enabling plug-in replacement of CR-M relays, the socket reduces downtime and spare parts inventory while speeding maintenance workflows. Screw terminals provide secure connections, lowering rework due to loose contacts. The availability of accessories such as function modules and markers supports faster commissioning and diagnostics, delivering a favorable return on investment through improved uptime and easier future upgrades.
