ABB 1SVR405651R6010 Push-in Socket - UL 508
Part Number: 1SVR405651R6010
Quick Summary
Push-in Socket for CR-M relays enables fast, reliable field wiring in compact control panels. Wiring by hand can be error-prone and time-consuming, so tool-free terminations speed setup and reduce commissioning risk. This socket aligns with UL 508, CE and UKCA standards, and carries CSA and CAN/CSA listings for broader North American compatibility. RoHS-compliant materials support ESG and compliance programs. Designed for CR-M interface relays with 2 C/O outputs, it also supports modular accessories such as function modules, holders, and markers to simplify maintenance and future upgrades. In demanding environments, the robust push-in terminals paired with a 2000 V Ui insulation rating help maintain electrical integrity across shocks, vibrations, and temperature variations. The solution delivers reliable, scalable control in modern automation architectures.
Product Information
Extended Description

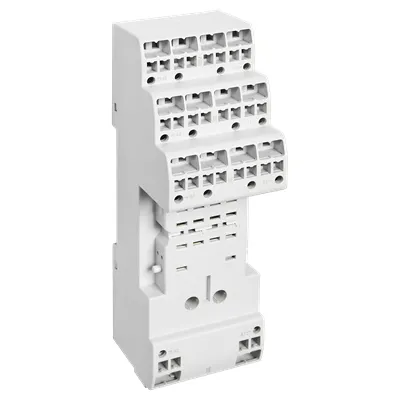

1SVR405651R6010 ABB: The CR-M2LP socket is from the CR-M (miniature) relay range. The logical socket is suitable for CR-M relays with 2 c/o (SPDT) output contacts. The socket has push-in connection terminals. Pluggable function modules, holder and marker are available as accessories.
EAN
4053546062137
Minimum Order Quantity
10 piece
Customs Tariff Number
85366990
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-MxLP, CR-PLP sockets
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
30.6 mm
Product Net Height
42.5 mm
Product Net Depth / Length
98.4 mm
Product Net Weight
0.057 kg
Function
Accessory for interface relays CR-M
Sub-Function
Socket for miniature relays
Sub-Function 2
Logical socket for miniature relay 2 c/o or 4 c/o
Rated Operational Voltage
250 V
Output Signal
250 V / 10 A
Terminal Type
Push-in Spring Terminals
Rated Insulation Voltage (Ui)
2000 V
Wire Stripping Length
10 mm
Recommended Screw Driver
2.5
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61984 | UL 508
Connecting Capacity Main Circuit UL/CSA
Flexible with Ferrule 2x 20-17 AWG | Rigid 2x 20-16 AWG | Stranded 2 x 20-16 AWG
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +70 °C
Maximum Operating Altitude Permissible
2000 m
RoHS Information
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
RoHS Status
Following EU Directive 2011/65/EU
CSA Certificate
CSA Certificate – Sockets and function modules for pluggable interface relays CR-S, CR-P, CR-M, CR-U
cURus Certificate
cURus508_E244328
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
Package Level 1 Units
carton 10 piece
Package Level 1 Width
104 mm
Package Level 1 Depth / Length
162 mm
Package Level 1 Height
87 mm
Package Level 1 Gross Weight
0.624 kg
Package Level 1 EAN
4053546062144
Object Classification Code
K
ETIM 7
EC001456 - Relay socket
ETIM 8
EC001456 - Relay socket
ETIM 9
EC001456 - Relay socket
eClass
V11.0 : 27371603
UNSPSC
39122335
E-Number (Norway)
4187815
Feature → Business Impact → Application: Push-in spring terminals enable rapid, error-free terminations, reducing wiring time and labor costs in control panels while improving contact reliability. Application: ideal for ABB CR-M relay installations in machine controls and packaging lines where speed and consistency matter. Feature → Business Impact → Application: Flexible compatibility with miniature CR-M relays that offer 2 C/O or 4 C/O outputs. Application: supports scalable logic configurations in modular automation, enabling quick reconfiguration for changes in process logic. Feature → Business Impact → Application: Rated operational voltage of 250 V and output of 250 V / 10 A with Ui of 2000 V. Application: safe switching in medium-power circuits, with robust insulation to withstand transients in industrial environments. Feature → Business Impact → Application: Push-in spring terminals and a compact footprint (30.6 mm W × 42.5 mm H × 98.4 mm D) fit tight control panels. Application: enables denser panel layouts and easier service in retrofit projects. Feature → Business Impact → Application: RoHS compliant, UL/CE/UKCA certified, and CAN/CSA listed. Application: simplifies regulatory approvals for global deployments and reduces compliance risk during audits. Feature → Business Impact → Application: Availability of accessories (function modules, holder, marker) and CAD drawings supports faster installation planning and future upgrades. Application: reduces lifecycle costs through extended usability and easier maintenance.
Get a Quick Quote for a ABB 1SVR405651R6010
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405651R6010?
Enquire Now
FAQs
The CR-M2LP push-in socket is designed for ABB CR-M miniature interface relays. It provides a logical 2 C/O or 4 C/O output socket and uses push-in spring terminals for fast, tool-free terminations. This combination enables seamless replacement or upgrades within existing CR-M installations while preserving connection integrity during vibration and cycling in automation panels.
The socket supports UL/CSA-capable connections with ferrule-equipped flex or rigid conductors up to 20 AWG to 16 AWG equivalents, as 2 x 20-16 AWG for rigid or 2 x 20-17 AWG for flexible ferrule setups. The design uses push-in terminals with a 10 mm wire stripping length, ensuring reliable terminations and standard maintenance practices.
Operating temperature ranges from -40 to +70 °C, suitable for harsh factory environments. The product features an insulation rating Ui of 2000 V, indicating strong insulation for high-side switching. Rated operational voltage is 250 V with an output of 250 V / 10 A, supporting common control-signal and low-power load applications in automation cabinets.
The socket is certified to UL 508 and CE, with UKCA marking and CSA CAN/CSA listings. These certifications support regulatory compliance in North American and European markets, aiding fast acceptance in safety reviews and audits. RoHS compliance further ensures materials meet environmental guidelines across regions.
The push-in design speeds wiring and reduces commissioning time, while the small footprint supports dense panel layouts. Accessories such as function modules, holders and markers simplify upgrades and maintenance. With documented CAD drawings and manuals, field teams can plan installations efficiently, lowering total cost of ownership through easier service and scalable automation.
