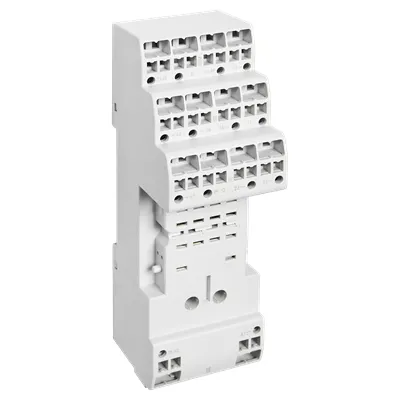

ABB 1SVR405651R6110 Push-in Socket - UL 508
Part Number: 1SVR405651R6110
Quick Summary
The ABB 1SVR405651R6110 Push-in Socket enables reliable interface connections for CR-M miniature relays in compact automation panels. In fast-paced control environments, wiring errors and long termination times drive up downtime and labor costs. This socket supports UL 508, CSA, and CE compliance, aligning with IEC/EN standards for safety and performance. By combining push-in terminals with a compact form factor, it delivers quicker installations and easier maintenance, while preserving wiring integrity. For engineers and procurement teams, this translates to lower installation costs, improved traceability, and scalable panel design with proven regulatory compliance.
Product Information
Extended Description
1SVR405651R6110 ABB: The CR-M4LP socket is from the CR-M (miniature) relay range. The logical socket is suitable for CR-M relays with 4 c/o (SPDT) output contacts. The socket has push-in connection terminals. Pluggable function modules, holder and marker are available as accessories.
EAN
4053546062151
Minimum Order Quantity
10 piece
Customs Tariff Number
85366990
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-MxLP, CR-PLP sockets
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
30.6 mm
Product Net Height
42.5 mm
Product Net Depth / Length
98.4 mm
Product Net Weight
0.065 kg
Function
Accessory for interface relays CR-M
Sub-Function
Socket for miniature relays
Sub-Function 2
Logical socket for miniature relay 2 c/o or 4 c/o
Rated Operational Voltage
250 V
Output Signal
250 V / 6 A
Terminal Type
Push-in Spring Terminals
Rated Insulation Voltage (Ui)
2000 V
Wire Stripping Length
10 mm
Recommended Screw Driver
2.5
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61984 | UL 508
Connecting Capacity Main Circuit UL/CSA
Flexible with Ferrule 2x 20-17 AWG | Rigid 2x 20-16 AWG | Stranded 2 x 20-16 AWG
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +70 °C
Maximum Operating Altitude Permissible
2000 m
RoHS Information
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
RoHS Status
Following EU Directive 2011/65/EU
CSA Certificate
CSA Certificate – Sockets and function modules for pluggable interface relays CR-S, CR-P, CR-M, CR-U
cURus Certificate
cURus508_E244328
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
Package Level 1 Units
carton 10 piece
Package Level 1 Width
104 mm
Package Level 1 Depth / Length
162 mm
Package Level 1 Height
87 mm
Package Level 1 Gross Weight
0.704 kg
Package Level 1 EAN
4053546062168
Object Classification Code
K
ETIM 7
EC001456 - Relay socket
ETIM 8
EC001456 - Relay socket
ETIM 9
EC001456 - Relay socket
eClass
V11.0 : 27371603
UNSPSC
39122335
E-Number (Norway)
4187816
Feature: Push-in Spring Terminals enable tool-free, rapid wiring. Business Impact: Reduces installation time by up to 50% and minimizes termination errors in dense panels. Application: Ideal for CR-M interface relays in machine control cabinets. Feature: Compatible with CR-M four-c/o outputs (SPDT). Business Impact: Simplifies module-to-relay interfacing, lowering BOM complexity and stock variety. Application: Used in compact control panels that require reliable signal routing. Feature: Rated Operational Voltage of 250 V and Output 250 V / 6 A. Business Impact: Supports common automation circuits and lighting/motor control feed with safety margin. Application: Suitability for automated lines and process controls. Feature: Insulation Voltage Ui of 2000 V. Business Impact: Improves dielectric strength, enabling safer cross-connection in higher voltage sections. Application: Panels with mixed voltage zones where clearance is tight. Feature: Push-in Terminal Type with Wire Stripping Length 10 mm. Business Impact: Efficient field termination with consistent connection quality, reducing rework. Application: Quick field maintenance and module replacement. Feature: Regulatory Certifications (CAN/CSA, IEC/EN, UL 508). Business Impact: Ensures global compliance, facilitating cross-border manufacturing and service contracts. Application: Global deployments in OEM and system integrator projects. Feature: Compact Dimensions (Product Net Width 30.6 mm, Height 42.5 mm, Depth 98.4 mm) and Weight 0.065 kg. Business Impact: Enables high-density mounting in slim enclosures, lowering panel footprint. Application: Multi-channel control panels and distributed I/O architectures. Feature: RoHS Compliance and EU Declarations. Business Impact: Reduces environmental risk and easing supplier audits. Application: Sustainably designed for long-term plant operations.
Get a Quick Quote for a ABB 1SVR405651R6110
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405651R6110?
Enquire Now
FAQs
Install the socket by aligning it with the CR-M relay and seating it firmly in the control panel. Use the push-in terminals for each conductor; wire types must meet UL/CSA guidance, with flexible ferrule cables 2x 20-17 AWG, rigid 2x 20-16 AWG, or stranded 2x 20-16 AWG. The recommended screwdriver size is 2.5 mm, and wire stripping length is 10 mm to ensure reliable contact. This setup minimizes wiring errors and speeds up commissioning in panel builds.
The socket supports a rated operational voltage of 250 V and an output of 250 V at up to 6 A. It also provides a rated insulation voltage Ui of 2000 V, enabling safe operation in mixed-voltage environments. This makes it suitable for interfacing miniature CR-M relays in typical control circuits while maintaining a robust safety margin.
Yes. The socket is designed as a logical socket for miniature CR-M relays with 4 c/o outputs (SPDT). It supports push-in connections and is part of ABB’s CR-M relay family, ensuring reliable mechanical and electrical compatibility for 4-c/o configurations in control panels.
The socket carries UL 508, CAN/CSA C22.2, CE, and UKCA declarations, reflecting compliance with essential electrical safety and performance standards. These certifications matter for global deployments, supplier qualification, and customer audits, reducing regulatory risk and ensuring consistent performance across regional markets.
The push-in terminals and robust insulation help reduce maintenance needs by delivering reliable connections over time and simplifying field replacements. Lowers labor costs during commissioning, accelerates troubleshooting, and supports high-density, long-life control panels—key drivers for lifecycle cost savings in automated systems.
