ABB 1SVR405652R0000 Pluggable diode module for CR-P/CR-M sockets - CE/UL
Part Number: 1SVR405652R0000
Quick Summary

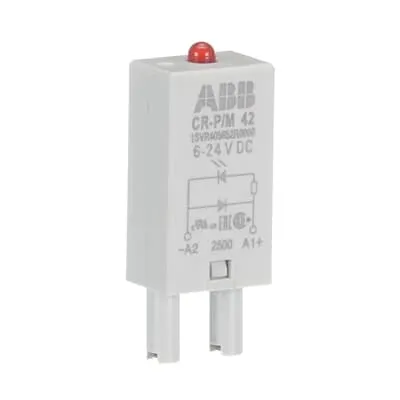

ABB 1SVR405652R0000 is a pluggable diode module with a red LED for CR-P/CR-M sockets. Engineers often face reverse polarity damage and lack of immediate status indication in tight panel layouts. This module carries CE, UKCA, and UL 508 certifications, along with RoHS compliance, helping you meet diverse global safety and environmental standards. Rated for 6-24 V DC control voltage, it provides reverse polarity protection, a free-wheeling diode, and a red LED indicator that speeds fault isolation and reduces maintenance costs. Its compact footprint, 13 mm width, 24 mm height, and 9 mm depth, supports easy installation and spare-part management across ABB interface relays.
Product Information
Extended Description
1SVR405652R0000 ABB: The CR-P/M 42 plug-in module is a pluggable function module for the CR-P and CR-M range sockets. This module provides reverse polarity protection/free wheeling diode and a red LED indication. The rated control supply voltage is 6-24 V DC.
Country of Origin
China (CN)
Lead Time
56 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
EAN
4013614528712
Minimum Order Quantity
10 piece
Customs Tariff Number
85411000
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
13 mm
Product Net Height
24 mm
Product Net Depth / Length
9 mm
Product Net Weight
0.003 kg
Function
Accessory for interface relays CR-M | Accessory for interface relays CR-P
Sub-Function
Pluggable function module for pcb and miniature relay sockets
Sub-Function 2
Reverse polarity protection | Free-wheeling diode | red LED
Rated Control Supply Voltage (Us)
6 ... 24 V DC
Output
none
Output Signal
none
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61984 | UL 508
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
RoHS Status
Following EU Directive 2011/65/EU
CSA Certificate
CSA Certificate – Sockets and function modules for pluggable interface relays CR-S, CR-P, CR-M, CR-U
cURus Certificate
cURus508_E244328
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
Package Level 1 Units
bag 10 piece
Package Level 1 Width
130 mm
Package Level 1 Depth / Length
9 mm
Package Level 1 Height
180 mm
Package Level 1 Gross Weight
0.032 kg
Package Level 1 EAN
4013614373848
Object Classification Code
K
ETIM 7
EC002586 - Accessories for switching relay
ETIM 8
EC002586 - Accessories/spare parts for switching relay
ETIM 9
EC002586 - Accessories/spare parts for switching relay
eClass
V11.0 : 27371692
UNSPSC
39122331
E-Number (Finland)
2712721
E-Number (Norway)
4187439
E-Number (Sweden)
4005381
Feature: The 1SVR405652R0000 is a pluggable function module for CR-P and CR-M sockets. Business impact: Its plug-in design reduces maintenance downtime and simplifies spare-parts logistics in automation panels. Application: It fits ABB control relays and is ideal for compact protection blocks in machine control enclosures and panel subracks. Feature: It provides reverse polarity protection and a free-wheeling diode. Business impact: This protects connected loads from inductive kick and incorrect polarity, extending relay life and reducing field faults. Application: Particularly beneficial in conveyor drives, pumps, and valve control circuits where wiring can be challenging and fault rates must be minimized. Feature: Red LED indication for status. Business impact: Operators quickly verify relay status in crowded panels, cutting fault-detection time. Application: Great for ongoing line monitoring in robot cells or packaging lines where quick visual cues matter. Feature: Rated control supply voltage 6-24 V DC and compact footprint. Business impact: Supports universal integration across ABB sockets, reducing part diversity and inventory costs. Application: Suitable for tight spaces where a slim protective module is required. Feature: Certifications and compliance. Business impact: CE, UKCA, UL 508, and RoHS alignment simplify approvals and regulatory filings. Application: Ideal for European and North American control-relay assemblies and interface modules.
