ABB 1SVR405652R4000 Pluggable module - 24-60 VDC UL508
Part Number: 1SVR405652R4000
Quick Summary
ABB 1SVR405652R4000 is a pluggable protection module for CR-P/CR-M sockets. Engineers use it to add reverse polarity protection and a clear LED status in compact control panels. This device carries CE, UKCA and UL 508 certifications, with CSA and cURus listings that support global deployment. As a small, pluggable accessory for interface relays, it reduces wiring complexity, speeds commissioning, and improves diagnostics in 24-60 V DC control circuits for automation equipment.
Product Information
Extended Description

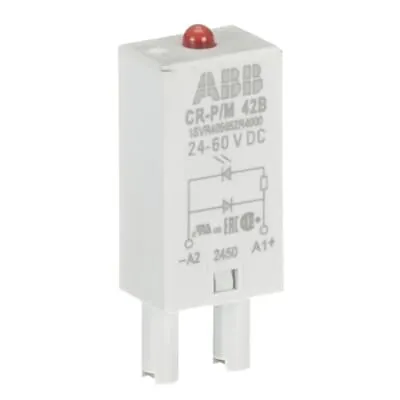

1SVR405652R4000 ABB: The CR-P/M 42B plug-in module is a pluggable function module for the CR-P and CR-M range sockets. This module provides reverse polarity protection/free wheeling diode and a red LED indication. The rated control supply voltage is 24-60 V DC.
EAN
4013614528514
Minimum Order Quantity
10 piece
Customs Tariff Number
85411000
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
13 mm
Product Net Height
24 mm
Product Net Depth / Length
9 mm
Product Net Weight
0.003 kg
Function
Accessory for interface relays CR-M | Accessory for interface relays CR-P
Sub-Function
Pluggable function module for pcb and miniature relay sockets
Sub-Function 2
Reverse polarity protection | Free-wheeling diode | red LED
Rated Control Supply Voltage (Us)
24 ... 60 V DC
Output
none
Output Signal
none
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61984 | UL 508
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
RoHS Status
Following EU Directive 2011/65/EU
CSA Certificate
CSA Certificate – Sockets and function modules for pluggable interface relays CR-S, CR-P, CR-M, CR-U
cURus Certificate
cURus508_E244328
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
Package Level 1 Units
bag 10 piece
Package Level 1 Width
130 mm
Package Level 1 Depth / Length
9 mm
Package Level 1 Height
180 mm
Package Level 1 Gross Weight
0.032 kg
Package Level 1 EAN
4013614383847
Object Classification Code
K
ETIM 7
EC002586 - Accessories for switching relay
ETIM 8
EC002586 - Accessories/spare parts for switching relay
ETIM 9
EC002586 - Accessories/spare parts for switching relay
eClass
V11.0 : 27371692
UNSPSC
39122331
E-Number (Norway)
4187764
Feature → Reverse polarity protection and free-wheeling diode reduce the risk of miswiring and voltage spikes, delivering a tangible business impact: fewer faults and reduced downtime when used with CR-P/CR-M sockets in automation controls. Application: Ideal for PCB and miniature relay sockets in machine panels, packaging lines, and process automation. Feature → Red LED indication provides immediate visual feedback on relay status, which decreases fault investigation time and improves operator confidence. Application: Essential for quick diagnostics in 24-60 V DC control systems and safety interlock circuits. Feature → Compact footprint (13 mm width, 24 mm height, 9 mm depth) and lightweight design enable easy retrofits and denser panel layouts. Application: Supports scalable deployment in space-constrained cabinets. Feature → Pluggable function module for CR-P/CR-M sockets ensures fast maintenance and lower spares inventory. Application: Reduces downtime during replacements and simplifies stocking of interface-relay accessories. Feature → Broad certifications (CE, UKCA, UL 508, CSA, cURus) guarantee compliance and risk mitigation across regional markets. Application: Facilitates global rollout with consistent safety and reliability standards.
