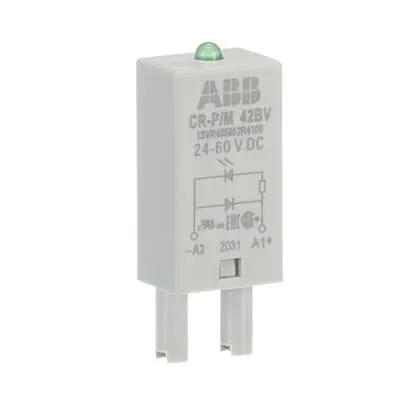

ABB 1SVR405652R4100 CR-P/M Plug-in Module - 24-60VDC
Part Number: 1SVR405652R4100
Quick Summary
ABB 1SVR405652R4100 CR-P/M plug-in module provides reverse-polarity protection for CR-P/CR-M sockets. Engineers often wrestle with wiring errors and downtime when safety functions are bulky or hard to replace in field installations. In automated control circuits, CE marking and SIL/IP safety considerations are standard expectations; confirm the exact certifications for this part with the supplier. This compact module simplifies installation while delivering a visible green status LED, helping maintenance teams quickly verify operation and reduce troubleshooting time. The device integrates neatly into existing 24-60 VDC architectures, supporting efficient diagnostics and reliable protection in power control and signaling paths. By offering a pluggable form factor and clear indication, it minimizes spare part variety and accelerates replacement, delivering measurable uptime improvements for industrial systems.
Product Information
Extended Description
1SVR405652R4100 ABB: The CR-P/M 42BV plug-in module is a pluggable function module for the CR-P and CR-M range sockets. This module provides reverse polarity protection/free wheeling diode and a green LED indication. The rated control supply voltage is 24-60 V DC.
