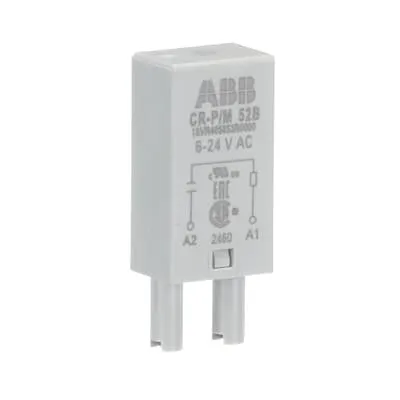

ABB 1SVR405653R0000 CR-P/M 52B - Spark Quenching
Part Number: 1SVR405653R0000
Quick Summary
ABB 1SVR405653R0000 CR-P/M 52B is a pluggable module that provides arc elimination for CR-P/CR-M sockets in industrial control panels. When wiring dense cabinets, arc-induced wear and nuisance trips can disrupt production; this module minimizes such events by quenching sparks at the source. Certified to UL 508, CE and CSA standards, it also aligns with RoHS directives to support global compliance. As an ABB-compatible accessory for interface relays, it streamlines procurement, reduces downtime, and supports scalable automation architectures for panel builders and OEMs.
Product Information
Extended Description
1SVR405653R0000 ABB: The CR-P/M 52B plug-in module is a pluggable function module for the CR-P and CR-M range sockets. This module provides arc elemination. The rated control supply voltage is 6-24 V AC/DC.
EAN
4013614528750
Minimum Order Quantity
10 piece
Customs Tariff Number
85480090
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
13 mm
Product Net Height
24 mm
Product Net Depth / Length
9 mm
Product Net Weight
0.003 kg
Function
Accessory for interface relays CR-M | Accessory for interface relays CR-P
Sub-Function
Pluggable function module for pcb and miniature relay sockets
Sub-Function 2
Spark quenching
Rated Control Supply Voltage (Us)
6 ... 24 V AC/DC | 6 ... 24 V AC
Output
none
Output Signal
none
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61984 | UL 508
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
RoHS Status
Following EU Directive 2011/65/EU
CSA Certificate
CSA Certificate – Sockets and function modules for pluggable interface relays CR-S, CR-P, CR-M, CR-U
cURus Certificate
cURus508_E244328
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
Package Level 1 Units
bag 10 piece
Package Level 1 Width
130 mm
Package Level 1 Depth / Length
9 mm
Package Level 1 Height
180 mm
Package Level 1 Gross Weight
0.032 kg
Package Level 1 EAN
4013614373862
Object Classification Code
K
ETIM 7
EC002586 - Accessories for switching relay
ETIM 8
EC002586 - Accessories/spare parts for switching relay
ETIM 9
EC002586 - Accessories/spare parts for switching relay
eClass
V11.0 : 27371692
UNSPSC
39122331
E-Number (Finland)
2712723
E-Number (Norway)
4187441
E-Number (Sweden)
4005383
Feature → Business Impact → Application: The 52B plug-in module provides arc elimination for CR-P/M sockets, reducing contact wear and improving system reliability in harsh industrial environments. This translates to lower maintenance costs and less unscheduled downtime in automation panels using ABB interface relays, such as packaging lines or conveyor systems. Application: Suitably installed in CR-P/CR-M based control circuits to enhance life expectancy of relays and minimize EMI-related disturbances. Feature → Business Impact → Application: Rated control supply voltage of 6 … 24 V AC/DC enables flexible integration with both logic and control circuits in mixed-voltage environments. Benefit: simplifies design and stocking, lowers wiring errors, and supports scalable automation across OEM equipment. Application: Ideal for modular panel bays and retrofits where power rails vary between projects. Feature → Business Impact → Application: Spark quenching and arc suppression extend contact life and reduce EMI/EMC concerns in safety-critical relays. Benefit: longer maintenance intervals and improved signal integrity in critical machines. Application: Widely applicable in process lines, sorting systems, and material handling. Feature → Business Impact → Application: Compact footprint (13 mm width × 24 mm height × 9 mm depth) and light 0.003 kg weight enable easy installation in tight panels. Benefit: saves board space, accelerates assembly, and simplifies field upgrades. Application: Suitable for compact control cabinets and retrofits where space is at a premium. Feature → Business Impact → Application: Compliance with UL 508, CE, CSA and RoHS ensures regulatory alignment and risk reduction. Benefit: mitigates certification challenges for global deployments and supports sustainable sourcing. Application: Critical for multinational manufacturing and cross-border deployments of ABB-based control solutions.
Get a Quick Quote for a ABB 1SVR405653R0000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405653R0000?
Enquire Now
FAQs
The 1SVR405653R0000 is designed as a pluggable module for ABB CR-P and CR-M sockets, acting as an arc suppression accessory. It plugs into the corresponding socket to provide spark quenching without altering the primary relay function. Installation is straightforward in standard ABB interface relay assemblies, ensuring reliable compatibility across typical CR-P/CR-M configurations.
The module operates with a rated control supply voltage from 6 to 24 V AC/DC (and 6 to 24 V for AC only in some configurations). It provides no additional output, serving as an accessory that enhances arc suppression. This flexibility supports integration with both DC logic and AC control circuits in mixed-voltage automation panels.
Yes, the CR-P/M 52B plug-in module includes spark quenching to suppress arcing across relay contacts. This reduces contact wear, lowers EMI/EMC noise, and minimizes nuisance trips in safety-critical circuits. The result is longer relay life, improved reliability in high-energy control lines, and safer, more stable operation in industrial automation environments.
The module carries UL 508, CE, CSA (and cURus), UKCA declarations of conformity, and RoHS compliance. These certifications validate safety, international compatibility for panel builders, and regulatory alignment for global deployments, helping to simplify procurement and ensure compliant integration in multi-region manufacturing environments.
The module is compact, with a product net width of 13 mm, net height of 24 mm, and net depth of 9 mm, weighing about 0.003 kg. It is packaged as a small plug-in accessory compatible with CR-P/CR-M sockets, enabling easier installation in tight control panels and reducing packaging waste during assembly.
