ABB 1SVR405654R0100 Pluggable module for CR-P/CR-M sockets - UL 508
Part Number: 1SVR405654R0100
Quick Summary
ABB 1SVR405654R0100 is a pluggable module for CR-P and CR-M interface relays, delivering a red LED status indicator in control circuits. In compact panels, engineers often struggle to confirm relay statuses quickly; this module provides instant visual feedback and reduces diagnostic time. It meets UL 508, CE, and CSA certifications and is RoHS-compliant, ensuring safe use in regulated environments. Its plug‑in design and small footprint simplify retrofits and future upgrades, delivering measurable reductions in wiring and maintenance costs while maintaining system integrity and compliance.
Product Information
Extended Description

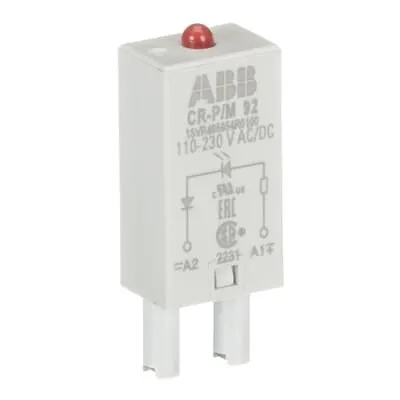

1SVR405654R0100 ABB: The CR-P/M 92 plug-in module is a pluggable function module for the CR-P and CR-M range sockets. This module provides diode and a red LED indication. The rated control supply voltage is 110-230 V AC/DC.
EAN
4013614528798
Minimum Order Quantity
10 piece
Customs Tariff Number
85480090
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
13 mm
Product Net Height
24 mm
Product Net Depth / Length
9 mm
Product Net Weight
0.003 kg
Function
Accessory for interface relays CR-M | Accessory for interface relays CR-P
Sub-Function
Pluggable function module for pcb and miniature relay sockets
Sub-Function 2
red LED
Rated Control Supply Voltage (Us)
110 ... 230 V AC/DC
Output
none
Output Signal
none
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61984 | UL 508
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
RoHS Status
Following EU Directive 2011/65/EU
CSA Certificate
CSA Certificate – Sockets and function modules for pluggable interface relays CR-S, CR-P, CR-M, CR-U
cURus Certificate
cURus508_E244328
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
Package Level 1 Units
bag 10 piece
Package Level 1 Width
130 mm
Package Level 1 Depth / Length
9 mm
Package Level 1 Height
180 mm
Package Level 1 Gross Weight
0.032 kg
Package Level 1 EAN
4013614373909
Object Classification Code
K
ETIM 7
EC002586 - Accessories for switching relay
ETIM 8
EC002586 - Accessories/spare parts for switching relay
ETIM 9
EC002586 - Accessories/spare parts for switching relay
eClass
V11.0 : 27371692
UNSPSC
39122331
E-Number (Finland)
2712731
E-Number (Norway)
4187445
E-Number (Sweden)
4005386
Feature: Pluggable module for CR-P/CR-M sockets enables rapid retrofit and modular upgrades. Business impact: reduces installation time and panel disruption, lowering total cost of ownership. Application: ideal for legacy interfaces in automation cabinets that require quick status indication without rewiring. Feature: Red LED indicator provides immediate status visibility. Business impact: accelerates fault isolation and reduces downtime, improving MTTR metrics. Application: critical in safety and alarm circuits where clear visual signals are essential. Feature: Rated control supply voltage of 110–230 V AC/DC offers broad compatibility. Business impact: supports global deployment and mixed-voltage environments without adapters. Application: suitable for diverse control panels and relays in machinery. Feature: Compact dimensions of 13 mm W x 24 mm H x 9 mm D and light weight. Business impact: saves valuable cabinet space, enabling higher device density and better airflow. Application: dense automation enclosures and retrofit projects. Feature: RoHS-compliant with standard certifications (UL 508, CE, CSA). Business impact: reduces regulatory risk and procurement complexity, enabling compliant sourcing. Application: industrial environments with strict material and safety standards. Feature: Compatibility as an accessory for CR-P and CR-M sockets; easy installation alongside PCB and miniature relay sockets. Business impact: minimizes design changes and improves maintainability. Application: panel builders and OEMs delivering compact control modules.
