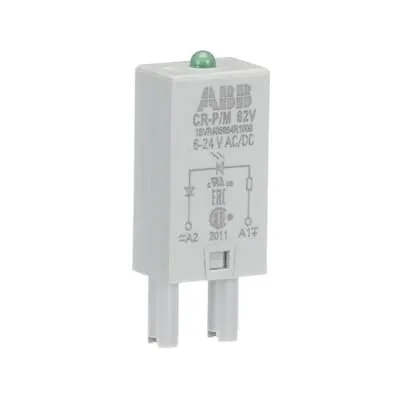

ABB 1SVR405654R1000 Pluggable module for CR-P/CR-M sockets - UL 508
Part Number: 1SVR405654R1000
Quick Summary
ABB 1SVR405654R1000 is a pluggable module for CR-P/CR-M sockets that provides a diode and a green LED indicator for relay status signaling in control panels. In tight panel environments, engineers need a quick, field-replaceable solution without bulky wiring or custom hardware. This accessory carries essential certifications—CE, UKCA, and UL 508 safety marks—along with RoHS compliance to meet global compliance requirements. Designed for 6-24 V AC/DC control supplies, it fits seamlessly into existing CR-P/CR-M assemblies, enabling scalable automation. For procurement and maintenance teams, the module delivers lower spare-parts variety and faster diagnostics, translating into reduced downtime and smoother commissioning of modular relay systems.
Product Information
Extended Description
1SVR405654R1000 ABB: The CP-P/M 62V plug-in module is a pluggable function module for sockets of the CR-P and CR-M range. This module provides a diode and a green LED indication. The rated control supply voltage is 6-24 V AC / DC.
EAN
4013614528804
Minimum Order Quantity
10 piece
Customs Tariff Number
85480090
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
13 mm
Product Net Height
24 mm
Product Net Depth / Length
9 mm
Product Net Weight
0.003 kg
Function
Accessory for interface relays CR-M | Accessory for interface relays CR-P
Sub-Function
Pluggable function module for pcb and miniature relay sockets
Sub-Function 2
green LED
Rated Control Supply Voltage (Us)
6 ... 24 V AC/DC
Output
none
Output Signal
none
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61984 | UL 508
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
RoHS Status
Following EU Directive 2011/65/EU
CSA Certificate
CSA Certificate – Sockets and function modules for pluggable interface relays CR-S, CR-P, CR-M, CR-U
cURus Certificate
cURus508_E244328
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
Package Level 1 Units
bag 10 piece
Package Level 1 Width
130 mm
Package Level 1 Depth / Length
9 mm
Package Level 1 Height
180 mm
Package Level 1 Gross Weight
0.032 kg
Package Level 1 EAN
4013614373893
Object Classification Code
K
ETIM 7
EC002586 - Accessories for switching relay
ETIM 8
EC002586 - Accessories/spare parts for switching relay
ETIM 9
EC002586 - Accessories/spare parts for switching relay
eClass
V11.0 : 27371692
UNSPSC
39122331
E-Number (Finland)
2712727
E-Number (Norway)
4187444
E-Number (Sweden)
4005387
Feature: Pluggable module for CR-P/CR-M sockets. Benefit: Simplifies maintenance and field replacement, reducing panel downtime and easing spares management in automation installations. Application: Ideal for interface relays in compact control panels where quick diagnostics are critical. Feature: Green LED indicator. Benefit: Immediate visual status feedback, improving troubleshooting speed during commissioning and ongoing operation. Application: Used on CR-P and CR-M based control circuits to verify relay signaling without wiring changes. Feature: Rated control supply voltage 6-24 V AC/DC. Benefit: Flexible power options across global installations, minimizing converter needs and inventory. Application: Suitable for mixed-voltage automation environments and retrofit projects. Feature: No output signal alteration. Benefit: Non-intrusive integration preserves existing relay logic while adding diagnostic visibility. Application: Compatible with standard CR-P/CR-M configurations without rewire. Feature: Certifications and RoHS compliance (UL 508, CE, UKCA, CSA, cURus, EAC; RoHS). Benefit: Ensures regulatory readiness and risk mitigation in diverse markets. Application: Suitable for automotive, process, and machine-building sectors requiring robust compliance. Feature: Compact mechanical footprint (13 mm x 24 mm x 9 mm; 0.003 kg). Benefit: Minimal panel intrusion and easy stocking with other CR-P/CR-M accessories. Application: Fits in tight relay housings and modular racks while preserving wiring space.
Get a Quick Quote for a ABB 1SVR405654R1000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405654R1000?
Enquire Now
FAQs
To install, unplug the existing socket where the pluggable module will insert, align with the CR-P or CR-M socket, and press firmly until seated. Verify compatibility by confirming socket type (CR-P/CR-M), ensure the control supply is within 6-24 V AC/DC, and check that the module is used as an indicator accessory rather than a direct switch. The EAN and MOQ on the packaging support procurement alignment.
The module operates with a rated control supply of 6-24 V AC/DC and provides a green LED indicator with no output signal. This non-intrusive accessory leaves relay logic intact while offering status visibility. Its compact dimensions (13 mm width, 24 mm height, 9 mm depth) minimize space impact in densely populated panels.
Yes. The module is designed as an accessory for CR-P and CR-M interface relays, enabling a durable, plug-in status indicator without modifying relay behavior. It supports widespread automation use cases—from packaging and material handling to process controls—where quick status checks and easy replacement are valuable.
The module carries UL 508 safety certification, CE and UKCA markings, CSA and cURus listings, and EAC where applicable, along with RoHS compliance under EU Directive 2011/65/EU. This suite supports regulatory acceptance in global manufacturing environments and helps satisfy supplier qualification requirements.
The ABB 1SVR405654R1000 reduces downtime by providing immediate visual diagnostics without wiring changes, lowers spare-parts complexity by serving across CR-P/CR-M installations, and accelerates commissioning in modular automation. Its compact form and field-replaceable nature translate to faster repairs, lower labor costs, and improved overall equipment efficiency.
