ABB 1SVR405654R1100 Pluggable Module - 110-230 VAC/DC
Part Number: 1SVR405654R1100
Quick Summary
CR-P/M 92V plug-in module provides diode indication for ABB CR-P/CR-M sockets in control panels. Engineers often face unclear status signals and crowded layouts; this module simplifies visibility while preserving panel space. It carries CE, UL 508, and CSA certifications, ensuring compliance across global automation environments. Designed for 110-230 V AC/DC control supplies, it integrates with standard sockets and CAD tooling, accelerating installation and maintenance tasks while delivering reliable visual status indicators in demanding industrial environments.
Product Information
Extended Description

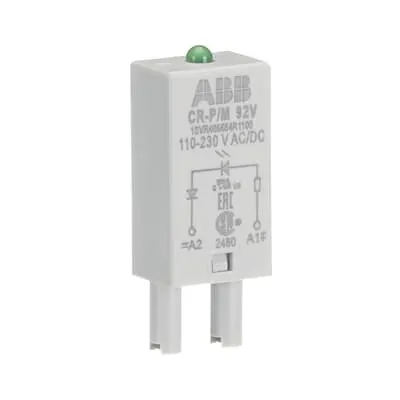

1SVR405654R1100 ABB: The CR-P/M 92V plug-in module is a pluggable function module for the CR-P and CR-M range sockets. This module provides diode and a green LED indication. The rated control supply voltage is 110-230 V AC/DC.
EAN
4013614528811
Minimum Order Quantity
10 piece
Customs Tariff Number
85480090
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
13 mm
Product Net Height
24 mm
Product Net Depth / Length
9 mm
Product Net Weight
0.003 kg
Function
Accessory for interface relays CR-M | Accessory for interface relays CR-P
Sub-Function
Pluggable function module for pcb and miniature relay sockets
Sub-Function 2
green LED
Rated Control Supply Voltage (Us)
110 ... 230 V AC/DC
Output
none
Output Signal
none
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61984 | UL 508
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
RoHS Status
Following EU Directive 2011/65/EU
CSA Certificate
CSA Certificate – Sockets and function modules for pluggable interface relays CR-S, CR-P, CR-M, CR-U
cURus Certificate
cURus508_E244328
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
Package Level 1 Units
bag 10 piece
Package Level 1 Width
130 mm
Package Level 1 Depth / Length
9 mm
Package Level 1 Height
180 mm
Package Level 1 Gross Weight
0.032 kg
Package Level 1 EAN
4013614373916
Object Classification Code
K
ETIM 7
EC002586 - Accessories for switching relay
ETIM 8
EC002586 - Accessories/spare parts for switching relay
ETIM 9
EC002586 - Accessories/spare parts for switching relay
eClass
V11.0 : 27371692
UNSPSC
39122331
E-Number (Finland)
2712734
E-Number (Norway)
4187446
E-Number (Sweden)
4005388
Feature: Pluggable function module for CR-P and CR-M sockets. Business impact: Simplifies replacement, minimizes downtime, and reduces spare parts inventory. Application: Ideal for modular control panels and automation cabinets where quick field swaps are required while maintaining a tidy installation. A second benefit is the integrated green LED indicator, which provides immediate status feedback, speeding fault isolation and reducing MTTR in production lines. Application context: Suitable for interface relays and small signaling modules in automotive, machine building, and process automation environments. Feature: Rated control supply voltage of 110 to 230 V AC/DC. Business impact: Broad compatibility with common automation controllers and safe operation across regions. Application: Enables universal use in mixed-voltage control systems without additional adapters. Feature: Compact dimensions (13 mm wide, 24 mm high, 9 mm deep) and low weight (0.003 kg). Business impact: Maximizes panel density and reduces enclosure footprint, improving fitment in crowded control panels. Application: Large-scale relay banks and compact PLC I/O blocks benefit from the minimal form factor. Feature: Standards and RoHS compliance (CAN/CSA C22.2 No.14, IEC/EN 63000, 61984, UL 508; RoHS). Business impact: Simplifies procurement and regulatory approvals across global operations. Application: Suitable for certified machinery and safety-critical installations. Feature: CAD and documentation support (2D/3D files, data sheets). Business impact: Accelerates engineering workflows and reduces installation errors. Application: Integrates smoothly with design tools and BOM processes.
