ABB 1SVR405654R4000 CR-P/M 62E Pluggable Module - UL 508
Part Number: 1SVR405654R4000
Quick Summary
ABB 1SVR405654R4000 is a pluggable LED red indicator module designed for CR-P/M interface relays in industrial control panels. Engineers often struggle with quickly diagnosing status in crowded cabinets, leading to extended downtime and maintenance bottlenecks. This module carries safety and conformity marks including UL 508, CE, and CSA/cURus, helping you meet essential electrical standards. By delivering a compact plug-in indicator with minimal wiring, it accelerates commissioning, improves diagnostics, and fits neatly into CAD-driven design workflows, enhancing BOM accuracy and field service velocity.
Product Information
Extended Description

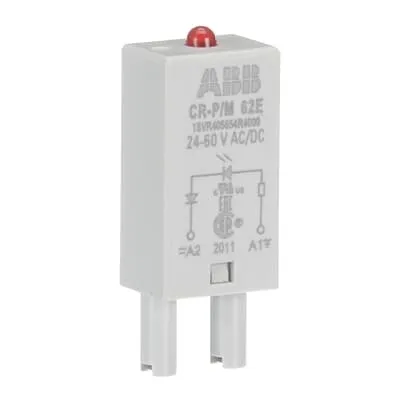

1SVR405654R4000 ABB: The CR-P/M 62E plug-in module is a pluggable function module for the CR-P and CR-M range sockets. This module provides a diode and a red LED indication. The rated control supply voltage is 24-60 V AC / DC.
EAN
4013614528828
Minimum Order Quantity
10 piece
Customs Tariff Number
85480090
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
13 mm
Product Net Height
24 mm
Product Net Depth / Length
9 mm
Product Net Weight
0.003 kg
Function
Accessory for interface relays CR-M | Accessory for interface relays CR-P
Sub-Function
Pluggable function module for pcb and miniature relay sockets
Sub-Function 2
red LED
Rated Control Supply Voltage (Us)
24 ... 60 V AC/DC
Output
none
Output Signal
none
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61984 | UL 508
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
RoHS Status
Following EU Directive 2011/65/EU
CSA Certificate
CSA Certificate – Sockets and function modules for pluggable interface relays CR-S, CR-P, CR-M, CR-U
cURus Certificate
cURus508_E244328
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
Package Level 1 Units
bag 10 piece
Package Level 1 Width
130 mm
Package Level 1 Depth / Length
9 mm
Package Level 1 Height
180 mm
Package Level 1 Gross Weight
0.032 kg
Package Level 1 EAN
4013614383892
Object Classification Code
K
ETIM 7
EC002586 - Accessories for switching relay
ETIM 8
EC002586 - Accessories/spare parts for switching relay
ETIM 9
EC002586 - Accessories/spare parts for switching relay
eClass
V11.0 : 27371692
UNSPSC
39122331
E-Number (Norway)
4187769
Feature → The LED red indicator with an integrated diode provides immediate visual status, reducing fault-finding time and enhancing machine uptime. Business Impact → Faster diagnostics translates to shorter outages and measurable productivity gains on powered systems. Application → Suitable for CR-P/M sockets in panel envelopes where clear indication is required without extra relays. Feature → Pluggable function module for PCB and miniature relay sockets enables easy retrofits and scalable solutions. Business Impact → Simplified maintenance, lower spares inventory, and rapid replacement during upgrades. Application → Ideal for modular control panels and automation installations that evolve over time. Feature → Rated control supply voltage of 24–60 V AC/DC supports common industrial logic levels. Business Impact → Flexible integration with existing PLCs and field buses, reducing voltage conversion needs. Application → Widely applicable across machinery, conveyors, and process controls. Feature → Compact footprint (13 mm wide, 24 mm high, 9 mm deep) with light 0.003 kg weight. Business Impact → Dense panel layouts without compromising accessibility or serviceability. Application → Best for space-constrained control cabinets and compact relay assemblies. Feature → Comprehensive certification and RoHS compliance (UL 508, CE, CSA/cURus, RoHS). Business Impact → Compliance reduces risk and accelerates approvals for global deployments. Application → Suited for electrical panels requiring strict safety and environmental standards. Feature → CAD-friendly with available dimensional drawings and technical catalogs. Business Impact → Streamlined integration into mechanical designs and accurate BOM management. Application → Supports rapid engineering workflows for interface relays and optocouplers.
