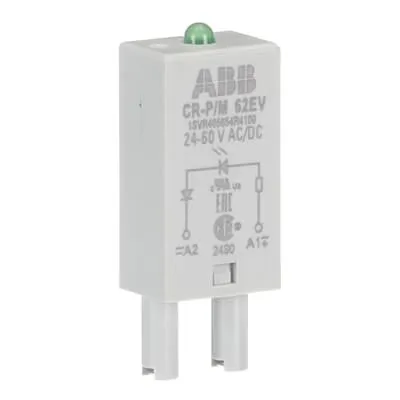

ABB 1SVR405654R4100 CR-P/M 62EV Pluggable Module - UL 508
Part Number: 1SVR405654R4100
Quick Summary
ABB 1SVR405654R4100 is a pluggable module for CR-P/CR-M sockets that adds LED indication. This compact accessory improves visibility in control panels, reducing misinterpretation of signals and wiring complexity. Certified to UL 508, CE, and CSA standards, it aligns with common industry safety and compliance requirements. With a rated control supply of 24-60 V AC/DC, it supports diverse industrial circuits without extra adapters. Its compact footprint and pluggable design simplify installation, maintenance, and spare-part planning across conveyors, machine tools, and packaging lines. This translates to faster commissioning, easier diagnostics, and improved uptime in automated systems. Engineers also benefit from CAD data access and RoHS compliance ensuring smooth integration.
Product Information
Extended Description
1SVR405654R4100 ABB: The CR-P/M 62EV plug-in module is a pluggable function module for the CR-P and CR-M range sockets. This module provides a diode and a green LED indication. The rated control supply voltage is 24-60 V AC / DC.
EAN
4013614528835
Minimum Order Quantity
10 piece
Customs Tariff Number
85480090
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
13 mm
Product Net Height
24 mm
Product Net Depth / Length
9 mm
Product Net Weight
0.003 kg
Function
Accessory for interface relays CR-M | Accessory for interface relays CR-P
Sub-Function
Pluggable function module for pcb and miniature relay sockets
Sub-Function 2
green LED
Rated Control Supply Voltage (Us)
24 ... 60 V AC/DC
Output
none
Output Signal
none
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61984 | UL 508
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
RoHS Status
Following EU Directive 2011/65/EU
CSA Certificate
CSA Certificate – Sockets and function modules for pluggable interface relays CR-S, CR-P, CR-M, CR-U
cURus Certificate
cURus508_E244328
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
Package Level 1 Units
bag 10 piece
Package Level 1 Width
130 mm
Package Level 1 Depth / Length
9 mm
Package Level 1 Height
180 mm
Package Level 1 Gross Weight
0.032 kg
Package Level 1 EAN
4013614383908
Object Classification Code
K
ETIM 7
EC002586 - Accessories for switching relay
ETIM 8
EC002586 - Accessories/spare parts for switching relay
ETIM 9
EC002586 - Accessories/spare parts for switching relay
eClass
V11.0 : 27371692
UNSPSC
39122331
E-Number (Norway)
4187770
LED indication and a built-in diode provide immediate status visibility, reducing misread signals and wiring errors. This improves fault detection during startup and operation, especially in crowded control panels where multiple relays share a common backplane. Compatibility with CR-P and CR-M sockets simplifies retrofits and spare-parts planning. The pluggable format lets technicians swap or upgrade modules without removing a unit from service, reducing downtime. Operational versatility comes from a rated control supply voltage of 24–60 V AC/DC, enabling use across diverse control panels without changing components. For installers, no extra power supply adapter is needed. Compact footprint (13 mm wide, 24 mm high, 9 mm deep) and light weight (0.003 kg) save panel space and support dense layouts. Pair with 2D/3D CAD drawings for accurate enclosure design and quick integration. Standards and certifications, including UL 508, CE, CSA, and RoHS, ensure safe operation in industrial environments and streamline compliance across regions.
Get a Quick Quote for a ABB 1SVR405654R4100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405654R4100?
Enquire Now
FAQs
Install this module by simply aligning it with the CR-P or CR-M socket and inserting it into the pluggable position until it seats firmly. No wiring is required for the module itself, since it provides a diode and a green LED indicator for status feedback. Verify polarity and fit with the socket to ensure reliable operation and avoid contact damage.
Key electrical spec is a rated control supply voltage of 24-60 V AC/DC, with no direct output signals from the module itself. The unit acts as an indicator and protection diode in the signal path, not a power-consuming actuator. It is designed for use with CR-P/CR-M sockets in standard control circuits and automation panels.
Yes. The module is designed for industrial automation where clear status indication is critical. It plugs into CR-P/CR-M sockets, provides a green LED indicator, and maintains compatibility with common safety standards. Its compact 13x24x9 mm profile supports dense panel layouts, while the UL 508, CE, and CSA certifications help meet regulatory requirements for machinery and process equipment.
Certified to UL 508, CE, and CSA standards, RoHS-compliant, with cURus, UKCA, and EAC declarations in place, this module meets essential electrical safety and environmental requirements. For manufacturers, this simplifies regulatory submissions; for operators, it reduces risk during audits and supports global deployment in machinery and packaging lines.
The pluggable LED module reduces panel wiring, speeds diagnostics, and lowers maintenance time by providing at-a-glance status. With a compact footprint and plug-in design, it minimizes downtime during replacements and reduces spare-part stocking by standardizing CR-P/CR-M accessories across lines. The result is faster commissioning and improved uptime in automated processes.
