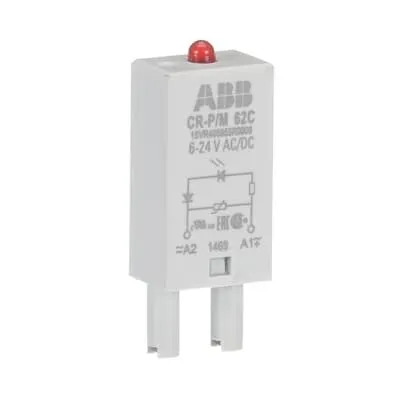

ABB 1SVR405655R0000 Pluggable module - UL 508
Part Number: 1SVR405655R0000
Quick Summary
ABB 1SVR405655R0000 Pluggable module is a compact overvoltage protection accessory for CR-P and CR-M interface relays. Engineers often struggle to shield control logic without sacrificing plug-in accessibility or increasing panel depth. This device carries UL 508, CE and UKCA certifications, along with CAN/CSA C22.2 No.14 and RoHS conformity, ensuring regulatory compliance across markets. With a rated control supply of 6-24 V AC/DC and a visible red LED for status, it supports reliable, serviceable protection in compact enclosures. Designed for CR-P and CR-M sockets, it enables quick field swaps and helps minimize wiring complexity while keeping panel profiles tight.
Product Information
Extended Description
1SVR405655R0000 ABB: The CP-P/M 62C plug-in module is a pluggable funtion module for sockets of the CR-P and CR-M range. This module provides overvoltage protection and a red LED indication. The rated control supply voltage is 6-24 V AC / DC.
EAN
4013614528842
Minimum Order Quantity
10 piece
Customs Tariff Number
85480090
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
13 mm
Product Net Height
24 mm
Product Net Depth / Length
9 mm
Product Net Weight
0.003 kg
Function
Accessory for interface relays CR-M | Accessory for interface relays CR-P
Sub-Function
Pluggable function module for pcb and miniature relay sockets
Sub-Function 2
Overvoltage protection | red LED
Rated Control Supply Voltage (Us)
6 ... 24 V AC/DC
Output
none
Output Signal
none
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61984 | UL 508
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
RoHS Status
Following EU Directive 2011/65/EU
CSA Certificate
CSA Certificate – Sockets and function modules for pluggable interface relays CR-S, CR-P, CR-M, CR-U
cURus Certificate
cURus508_E244328
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
Package Level 1 Units
bag 10 piece
Package Level 1 Width
130 mm
Package Level 1 Depth / Length
9 mm
Package Level 1 Height
180 mm
Package Level 1 Gross Weight
0.032 kg
Package Level 1 EAN
4013614373923
Object Classification Code
K
ETIM 7
EC002586 - Accessories for switching relay
ETIM 8
EC002586 - Accessories/spare parts for switching relay
ETIM 9
EC002586 - Accessories/spare parts for switching relay
eClass
V11.0 : 27371692
UNSPSC
39122331
E-Number (Finland)
2712726
E-Number (Norway)
4187447
E-Number (Sweden)
4005389
The pluggable protection module delivers overvoltage protection and a red LED status for CR-P and CR-M sockets, enabling rapid diagnostics and reduced maintenance time. This compact plug-in approach preserves valuable panel space and supports faster field replacements, lowering downtime costs in automated lines and assembly cells. Compatible with 6-24 V AC/DC control supplies, it integrates seamlessly with common control architectures, reducing engineering lead times and ensuring consistent behavior across machines. By meeting key standards such as UL 508, CE, UKCA, CAN/CSA C22.2 No.14 and RoHS, it simplifies compliance documentation for machine builders and integrators while lowering risk during audits. The 13 mm width, 24 mm height and 9 mm depth deliver a minimal footprint without compromising protection, enabling dense panel layouts and easier serviceability. The red LED provides immediate status indication, supporting preventive maintenance and quick fault isolation in control circuits. Installation is straightforward due to plug-in sockets, which supports spare parts rationalization and inventory control for maintenance teams. This module is specifically designed as an accessory for CR-P and CR-M sockets, ensuring compatibility and a consistent maintenance workflow across ABB interface relays.
Get a Quick Quote for a ABB 1SVR405655R0000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405655R0000?
Enquire Now
FAQs
The 1SVR405655R0000 is designed as a plug-in accessory for ABB CR-P and CR-M sockets. It fits standard PCB and miniature relay sockets, with dimensions of 13 mm width, 24 mm height and 9 mm depth, ensuring a clean installation in compact control panels. It requires a control supply within 6-24 V AC/DC and provides no output signals, only protection and status indication via the red LED.
The module complies with UL 508, CE and UKCA declarations, and also aligns with CAN/CSA C22.2 No.14, IEC/EN 63000 and IEC/EN 61984, plus RoHS requirements. This broad certification suite supports regulatory compliance across North America and Europe, making it suitable for machine builders targeting global markets.
Key specs include a rated control supply voltage of 6-24 V AC/DC, overvoltage protection via a 62C varistor, and an integrated red LED indicator for status. The module has no active output, functioning purely as a protective accessory plus visual indication, and is designed to plug into CR-P/CR-M sockets.
Because it is a pluggable function module, field swaps require no wiring or tools beyond unplugging the failed unit and plugging in a replacement. This reduces maintenance time, minimizes downtime, and simplifies spare parts inventory for CR-P and CR-M based control architectures.
The module delivers measurable ROI by reducing downtime, improving fault visibility with a red LED, and enabling compact, compliant panel designs. Its plug-in format lowers labor costs during maintenance, while its broad certification coverage reduces regulatory risk across global production lines.
