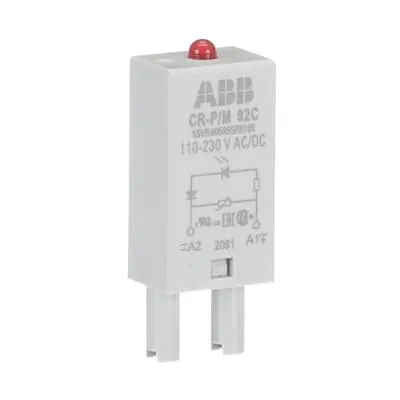

ABB 1SVR405655R0100 Pluggable module varistor - UL 508
Part Number: 1SVR405655R0100
Quick Summary
CR-P/M 92C plug-in module provides overvoltage protection for ABB CR-P sockets in industrial control panels. Engineers often battle transient spikes that damage relays and logic, driving unplanned downtime and costly repairs. Certified to UL 508, CE, and cURus standards, this pluggable module enables safe, global compliance in modern automation cabinets. Its compact form factor and 110-230 V AC/DC rating simplify retrofits on existing CR-P and CR-M sockets, while the integrated red LED delivers immediate fault signaling. The result is increased equipment reliability, faster diagnostics, and lower maintenance costs across relatively small, modular control systems.
Product Information
Extended Description
1SVR405655R0100 ABB: The CP-P/M 92C plug-in module is a pluggable funtion module for sockets of the CR-P and CR-M range. This module provides overvoltage protection and a red LED indication. The rated control supply voltage is 110-230 V AC/DC.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
160 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
EAN
4013614528859
Minimum Order Quantity
10 piece
Customs Tariff Number
85480090
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
13 mm
Product Net Height
24 mm
Product Net Depth / Length
9 mm
Product Net Weight
0.003 kg
Function
Accessory for interface relays CR-M | Accessory for interface relays CR-P
Sub-Function
Pluggable function module for pcb and miniature relay sockets
Sub-Function 2
Overvoltage protection | red LED
Rated Control Supply Voltage (Us)
110 ... 230 V AC/DC
Output
none
Output Signal
none
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61984 | UL 508
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
RoHS Status
Following EU Directive 2011/65/EU
CSA Certificate
CSA Certificate – Sockets and function modules for pluggable interface relays CR-S, CR-P, CR-M, CR-U
cURus Certificate
cURus508_E244328
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
Package Level 1 Units
bag 10 piece
Package Level 1 Width
130 mm
Package Level 1 Depth / Length
9 mm
Package Level 1 Height
180 mm
Package Level 1 Gross Weight
0.032 kg
Package Level 1 EAN
4013614373947
Object Classification Code
K
ETIM 7
EC002586 - Accessories for switching relay
ETIM 8
EC002586 - Accessories/spare parts for switching relay
ETIM 9
EC002586 - Accessories/spare parts for switching relay
eClass
V11.0 : 27371692
UNSPSC
39122331
E-Number (Finland)
2712732
E-Number (Norway)
4187449
E-Number (Sweden)
4005390
Plug-in modular design for CR-P/CR-M sockets enables fast swaps in the field, reducing downtime and service window impact while maintaining high safety standards. The business impact is clear: technicians can replace a failed protection module in minutes instead of disassembling large sections of the control panel, shortening mean time to repair and reducing maintenance costs. This module provides dedicated overvoltage protection with a visible red LED indicator, accelerating fault isolation and ensuring operators recognize a fault condition quickly during routine checks. Compatible with 110-230 V AC/DC control supplies, it supports global automation architectures and minimizes the risk of mis-wiring thanks to its clearly defined plug-in interface. In practice, panel builders gain a scalable, store-and-rotate spare strategy for CR-P/CR-M ecosystems.
Get a Quick Quote for a ABB 1SVR405655R0100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405655R0100?
Enquire Now
FAQs
Install the 92C module by removing power to the controller, align it with the CR-P or CR-M socket, and insert firmly until it seats. The red LED provides live fault signaling. Ensure the control supply voltage is within 110-230 V AC/DC and verify compatibility with ABB CR-P/CR-M assemblies before powering the system.
The module is rated for 110-230 V AC/DC control voltage, providing overvoltage protection without an active output signal. It is designed as an accessory for interface relays, with a visible fault indicator via the red LED to aid rapid diagnostics and maintenance planning.
Yes. With a wide control voltage range and compatibility with CR-P/CR-M sockets, it supports global panel designs. Certifications including UL 508, CE, and cURus ensure regulatory compliance across North American and European projects, simplifying procurement and certification workflows.
Key certifications include UL 508 for safety in control panel environments, CE for European conformity, and cURus for recognized safety in North America. These declarations help ensure the module meets electrical protection standards necessary for industrial automation installations.
By enabling plug-in replacement rather than full socket rework, the module reduces maintenance time and panel downtime. The integrated LED aids quick fault detection, while the compact footprint minimizes space impact, delivering lower service costs and faster diagnostics in daily operations.
