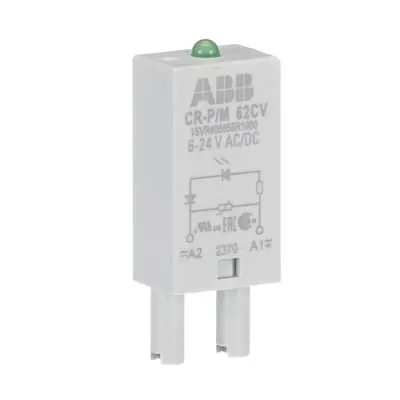

ABB 1SVR405655R1000 Pluggable Module - 62CV Overvoltage
Part Number: 1SVR405655R1000
Quick Summary
ABB 1SVR405655R1000 is a pluggable module for CR-P/CR-M sockets that provides overvoltage protection. In practice, engineers often struggle to shield sensitive interface relays without adding excess panel depth or wiring. This module delivers a compact 13 mm wide, 24 mm high, 9 mm deep form factor with a green LED status indicator and operates from 6–24 V AC/DC. It aligns with essential safety and performance standards, including UL 508 for industrial control equipment and CE/UKCA conformity, alongside CSA and CAN/CSA requirements. By enabling plug-in versatility and reliable transient suppression, the CP-P/M 62CV simplifies maintenance, reduces downtime, and supports compliant system integration, boosting uptime and lowering lifecycle costs. It is a pragmatic choice for automation projects demanding robust protection of interface relays.
Product Information
Extended Description
1SVR405655R1000 ABB: The CP-P/M 62CV plug-in module is a pluggable funtion module for sockets of the CR-P and CR-M range. This module provides overvoltage protection and a green LED indication. The rated control supply voltage is 6-24 V AC / DC.
EAN
4013614528866
Minimum Order Quantity
10 piece
Customs Tariff Number
85480090
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
13 mm
Product Net Height
24 mm
Product Net Depth / Length
9 mm
Product Net Weight
0.003 kg
Function
Accessory for interface relays CR-M | Accessory for interface relays CR-P
Sub-Function
Pluggable function module for pcb and miniature relay sockets
Sub-Function 2
Overvoltage protection | green LED
Rated Control Supply Voltage (Us)
6 ... 24 V AC/DC
Output
none
Output Signal
none
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61984 | UL 508
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
RoHS Status
Following EU Directive 2011/65/EU
CSA Certificate
CSA Certificate – Sockets and function modules for pluggable interface relays CR-S, CR-P, CR-M, CR-U
cURus Certificate
cURus508_E244328
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
Package Level 1 Units
bag 10 piece
Package Level 1 Width
130 mm
Package Level 1 Depth / Length
9 mm
Package Level 1 Height
180 mm
Package Level 1 Gross Weight
0.032 kg
Package Level 1 EAN
4013614373930
Object Classification Code
K
ETIM 7
EC002586 - Accessories for switching relay
ETIM 8
EC002586 - Accessories/spare parts for switching relay
ETIM 9
EC002586 - Accessories/spare parts for switching relay
eClass
V11.0 : 27371692
UNSPSC
39122331
E-Number (Finland)
2712735
E-Number (Norway)
4187448
E-Number (Sweden)
4005391
Feature: Pluggable module design for PCB and miniature relay sockets → Business Impact: Simplified retrofits and faster maintenance, reducing downtime and labor costs in panel refurbishments. Application: Ideal for ABB CR-P/CR-M interface relays in control cabinets. Long-tail keywords: pluggable relay module, PCB socket accessory, CR-P socket accessory. Feature: 62CV varistor-based overvoltage protection with green LED indication → Business Impact: Reliable transient suppression and immediate visual confirmation, improving fault diagnosis and system reliability. Application: Protected control circuits in automation lines across manufacturing. Long-tail keywords: overvoltage protection module, varistor protection, green LED status. Feature: 6–24 V AC/DC rated control supply and no output signals → Business Impact: Flexible operation from common control buses without additional interfaces, lowering integration risk. Application: Standalone protection module within CR-P/CR-M sockets in PLC and relay logic. Long-tail keywords: 6-24V control voltage, flexible supply, no output signal. Feature: Compact dimensions and lightweight construction (13 mm W × 24 mm H × 9 mm D; 0.003 kg) → Business Impact: Minimal panel footprint and efficient space utilization, enabling denser control architectures. Application: Panel layouts requiring compact protection modules. Long-tail keywords: compact module, space-saving protection, panel density. Feature: Compliance and documentation coverage (UL 508, CE, UKCA, CSA, DoC) → Business Impact: Regulatory readiness and easier audit trails, reducing certification delays and procurement risk. Application: Industrial environments with strict standards, including energy and safety audits. Long-tail keywords: UL 508 compliance, CE/UKCA conformity, CSA documentation, RoHS alignment. Feature: RoHS-compliant material and global classification (EAC, ETIM, eClass, UNSPSC) → Business Impact: Reduced regulatory and supply-chain risk, enabling global deployments. Application: International projects and multi-site rollouts. Long-tail keywords: RoHS directive, RoHS compliance, international classifications.
Get a Quick Quote for a ABB 1SVR405655R1000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405655R1000?
Enquire Now
FAQs
The CP-P/M 62CV is designed as a pluggable accessory for ABB CR-P and CR-M sockets. Simply insert the module into the compatible plug-in socket, supply 6–24 V AC/DC, and verify the green LED indicates proper operation. There is no active output signal from the module itself, but it provides transient suppression to protect the relay coil and associated circuitry. Ensure the assembly is within the specified dimensions to maintain panel clearance.
Key specs include a 6–24 V AC/DC rated control supply and a 62CV varistor-based overvoltage protection scheme. The module is intended as an accessory for interface relays CR-P/CR-M with no output signal. It is compatible with standard control circuits and supports safe operation across common automation voltages, improving reliability without adding complex wiring.
Yes, the module aligns with major standards and certifications essential for industrial automation. It bears UL 508, CE, and UKCA conformity, alongside CSA and CAN/CSA C22.2 approvals. RoHS compliance is documented, and DoC documentation for CE and UKCA is available. These certifications facilitate regulatory approvals for panel builds and multi-site deployments.
The module is ideal for protecting interface relays in control panels used in manufacturing, packaging, and process automation. It fits CR-P/CR-M sockets, offering compact protection in tight spaces and enabling straightforward retrofits. Its status LED aids diagnostics, while its small footprint supports high-density panel layouts.
The module’s plug-in design allows rapid replacement with minimal downtime, reducing maintenance time during transient events. Its compact footprint saves panel space, enabling more reliable cooling and wiring. Overall, the product contributes to lower maintenance costs and more predictable uptime in automation environments.
