ABB 1SVR405655R4000 Plug-in Module - Overvoltage
Part Number: 1SVR405655R4000
Quick Summary
ABB 1SVR405655R4000 is a plug-in module for CR-P/CR-M sockets that provides overvoltage protection in industrial control panels. It reduces downtime by preventing voltage spikes from damaging relays and control circuitry, while its red LED clearly indicates fault conditions for fast maintenance. The unit adheres to major safety and compliance standards, including UL 508, CAN/CSA C22.2 No.14, and IEC/EN 63000 with CE and UKCA declarations, supporting robust regulatory approvals across markets. With a compact footprint of 13 mm width, 24 mm height and 9 mm depth, it fits dense panel spaces and minimizes installation footprint. This accessory streamlines installation, reduces wiring complexity, and improves serviceability for OEMs and maintenance teams.
Product Information
Extended Description

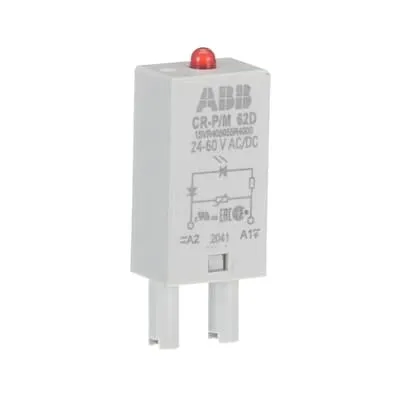

1SVR405655R4000 ABB: The CR-P/M 62D plug-in module is a pluggable function module for the CR-P and CR-M range sockets. This module provides overvoltage protection and a red LED indication. The rated control supply voltage is 24-60 V AC / DC.
EAN
4013614528880
Minimum Order Quantity
10 piece
Customs Tariff Number
85480090
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
13 mm
Product Net Height
24 mm
Product Net Depth / Length
9 mm
Product Net Weight
0.003 kg
Function
Accessory for interface relays CR-M | Accessory for interface relays CR-P
Sub-Function
Pluggable function module for pcb and miniature relay sockets
Sub-Function 2
Overvoltage protection | red LED
Rated Control Supply Voltage (Us)
24 ... 60 V AC/DC
Output
none
Output Signal
none
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61984 | UL 508
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
RoHS Status
Following EU Directive 2011/65/EU
CSA Certificate
CSA Certificate – Sockets and function modules for pluggable interface relays CR-S, CR-P, CR-M, CR-U
cURus Certificate
cURus508_E244328
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
Package Level 1 Units
bag 10 piece
Package Level 1 Width
130 mm
Package Level 1 Depth / Length
9 mm
Package Level 1 Height
180 mm
Package Level 1 Gross Weight
0.032 kg
Package Level 1 EAN
4013614383915
Object Classification Code
K
ETIM 7
EC002586 - Accessories for switching relay
ETIM 8
EC002586 - Accessories/spare parts for switching relay
ETIM 9
EC002586 - Accessories/spare parts for switching relay
eClass
V11.0 : 27371692
UNSPSC
39122331
E-Number (Norway)
4187771
Feature: Pluggable module for CR-P/CR-M sockets → Business Impact: Enables quick field upgrades and simplified maintenance, reducing downtime and spare parts complexity → Application: Retrofit or new panel builds in automation cabinets. Feature: 24-60 V AC/DC rated control supply → Business Impact: Supports a wide range of control circuits without additional power supplies, lowering total cost of ownership → Application: PLC control logic and relay control in machine automation. Feature: Overvoltage protection with red LED indication → Business Impact: Immediate fault signaling reduces diagnostic time and prevents secondary damage to inputs and control logic → Application: Signaling relays and safety circuits in panel assemblies. Feature: Compact dimensions (13 mm width, 24 mm height, 9 mm depth) → Business Impact: Improves panel density and cable routing, enabling more compact installations → Application: Dense control panels and compact automation enclosures. Feature: Compliance and certifications (CE, UKCA, UL 508, CAN/CSA C22.2 No.14, RoHS) → Business Impact: Streamlines multi-market approvals and supplier qualification → Application: Global manufacturing lines and regulated industries requiring certified components.
Get a Quick Quote for a ABB 1SVR405655R4000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405655R4000?
Enquire Now
FAQs
Yes. It is a pluggable function module designed specifically for CR-P and CR-M sockets. Its form factor fits the CR-P/M interface relays' plug-in sockets, enabling a quick upgrade path without rewiring. When incorporated in new panels or retrofits, it preserves existing wiring footprints while adding overvoltage protection.
The module is rated for 24 to 60 V AC or DC control supply, covering standard PLC and relay control voltages. This wide range allows use with diverse automation platforms, reducing the need for additional voltage converters and simplifying spare parts stock. It supports both low-voltage control logic and higher voltage control schemes found in modern machines.
The red LED provides immediate visual fault indication when overvoltage protection engages, helping technicians quickly locate the problem source. With a pluggable module, field replacement is fast, minimizing downtime and ensuring critical control circuits return to service promptly. The indicator complements standard diagnostic practices in automated lines.
The module meets IEC/EN 63000, IEC/EN 61984, CAN/CSA C22.2 No.14, and UL 508, and carries CE and UKCA declarations. RoHS conformity ensures restricted substances are controlled. These approvals streamline regulatory submissions for multi-market deployments and support supplier qualification in regulated industries.
Its compact 13 mm width, 24 mm height, and 9 mm depth allow dense packing in control cabinets. The plug-in design reduces wiring, supports easy field upgrades, and enables consistent clearance around adjacent components. Verify socket compatibility and ensure the CR-P/CR-M chassis remains accessible for replacement during maintenance.
