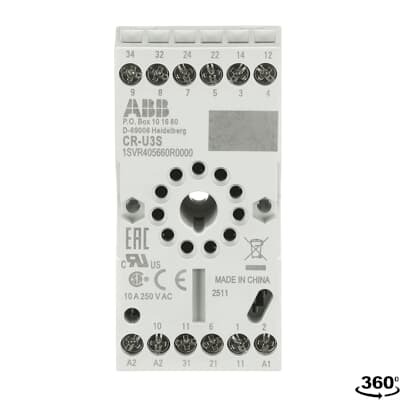

ABB 1SVR405660R0000 Socket - 3 c/o CR-U Relay, UL 508
Part Number: 1SVR405660R0000
Quick Summary
ABB 1SVR405660R0000 Socket is a CR-U3S socket for 3 c/o relays used in control panels. Designed for reliable, screw-terminal wiring, it simplifies field installation and maintenance in busy automation environments. Engineers often struggle with wiring misincrements and downtime; this socket addresses those challenges with secure connections and modular compatibility. The CR-U socket family carries certifications such as UL 508, CE, and CSA to support global compliance, RoHS materials, and safety requirements. By integrating this socket into a control architecture, you gain a scalable path for future upgrades, while maintaining consistent performance across ABB’s universal relay ecosystem. In short, it enables dependable, serviceable control interfaces for automated machinery and process control.
Product Information
Extended Description
1SVR405660R0000 ABB: The CR-U3S socket is from the CR-U (universal) relay range. The socket is suitable for CR-U relays with 3 c/o (SPDT) output contacts. The socket has screw connection terminals. Pluggable function modules, holder and marker are available as accessories
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Turkiye (TR)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Switzerland (CH)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHABB001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
Turkiye (TR)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
35 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Country of Origin
Turkiye (TR)
Quote Only
No
Lead Time
28 day
Product Sales Status
Active
Made To Order
No
Stocked At Warehouses
TRESA001EXPU
Warranty Return
Product under warranty must be returned
EAN
4013614528996
Minimum Order Quantity
10 piece
Customs Tariff Number
85369010
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-PLS, CR-PSS, CR-MxLS(H), CR-MxSS, CR-MxSF(B), CR-UxS(M) sockets
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
38 mm
Product Net Height
26 mm
Product Net Depth / Length
75 mm
Product Net Weight
0.065 kg
Function
Accessory for interface relays CR-U
Sub-Function
Socket for universal relays
Sub-Function 2
Socket for universal relay 3 c/o
Rated Operational Voltage
250 V
Output
none
Terminal Type
Screw Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 10 A
Rated Insulation Voltage (Ui)
2 V
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61984 | UL 508
Connecting Capacity Main Circuit UL/CSA
Flexible with Ferrule 2x 20-16 AWG | Rigid 2x 20-14 AWG | Stranded 2 x 20-14 AWG
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +70 °C
Maximum Operating Altitude Permissible
2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
RoHS Status
Following EU Directive 2011/65/EU
CSA Certificate
CSA Certificate – Sockets and function modules for pluggable interface relays CR-S, CR-P, CR-M, CR-U
cURus Certificate
cURus508_E244328
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
Package Level 1 Units
box 10 piece
Package Level 1 Width
133 mm
Package Level 1 Depth / Length
81 mm
Package Level 1 Height
84 mm
Package Level 1 Gross Weight
0.652 kg
Package Level 1 EAN
4013614374364
Object Classification Code
K
ETIM 7
EC001456 - Relay socket
ETIM 8
EC001456 - Relay socket
ETIM 9
EC001456 - Relay socket
eClass
V11.0 : 27371603
UNSPSC
39122335
E-Number (Finland)
2712801
E-Number (Norway)
4187495
E-Number (Sweden)
4005436
Feature → Business Impact → Application: Screw-terminal wiring provides robust, vibration-resistant connections reducing commissioning time and field wiring errors in panel installations; Application: ideal for compact control cabinets in packaging and processing lines. Feature → Business Impact → Application: Compatibility with CR-U universal relays supports rapid replacement and easy upgrades; Application: switchgear and interface relays in machine control schemes. Feature → Business Impact → Application: 3 c/o SPDT outputs enable versatile signal routing while preserving compact form factor; Application: safety interlocks and logic control in automation panels. Feature → Business Impact → Application: Rated 250 V and 10 A delivers reliable load handling for control circuits; Application: industrial automation and building management systems. Feature → Business Impact → Application: Screw-terminal design simplifies field wiring and maintenance, reducing downtime by enabling quick re-wiring and diagnostics; Application: service-friendly panel upgrades and modular expansion. Feature → Business Impact → Application: RoHS, CE, UL 508 and CSA certifications ensure regulatory compliance and risk mitigation; Application: global deployment across machinery, food & beverage lines, and process automation. Feature → Business Impact → Application: Accessory ecosystem with pluggable modules, holder and marker supports customized, future-ready installations; Application: scalable control architectures and streamlined serviceability.
Get a Quick Quote for a ABB 1SVR405660R0000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405660R0000?
Enquire Now
FAQs
The 1SVR405660R0000 socket is designed for CR-U universal relays with 3 c/o (SPDT) outputs. It uses screw terminals for secure wiring and is compatible with the CR-U family and related interface relay configurations in ABB’s ecosystem.
Electrical ratings include a rated operational voltage of 250 V and a rated operational current of 10 A (AC-12 at 230 V). Safety certifications referenced in the data set include UL 508, CE, CSA, and RoHS conformance to EU directive 2011/65/EU, ensuring broad regulatory compliance.
This socket is typically used to connect CR-U universal relays in control panels for interface and control tasks, such as machine protection, interlock logic, and signal routing in automation and process control systems.
Certifications include UL 508, CE, UKCA, CSA, and EAC where applicable, along with RoHS compliance. The product also carries a CE Declaration of Conformity for the CR-M, CR-P, CR-U socket family.
The screw-terminal design simplifies field wiring, reducing commissioning time and maintenance effort. Availability in the ABB CR-U ecosystem supports modular upgrades, consistent spare parts, and improved total cost of ownership in automated systems.
