ABB 1SVR405670R0000 Socket - UL/CSA Certified
Part Number: 1SVR405670R0000
Quick Summary

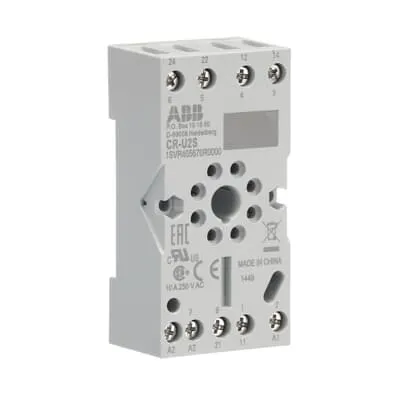

The CR-U2S socket is a plug-in accessory for ABB universal CR-U relays, enabling 2 c/o SPDT outputs in compact control panels. This design addresses common wiring errors and space constraints by delivering screw-terminal accessibility and clear module compatibility. It carries CE, cURus and CSA/UL certifications to underpin safety and reliability in harsh industrial environments. With German engineering backing and RoHS compliance, the socket supports efficient procurement, easy maintenance, and a longer lifecycle for automated control applications.
Product Information
Extended Description
1SVR405670R0000 ABB: The CR-U2S socket is from the CR-U (universal) relay range. The socket is suitable for CR-U relays with 2 c/o (SPDT) output contacts. The socket has screw connection terminals. Pluggable function modules, holder and marker are available as accessories
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
160 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
EAN
4013614529290
Minimum Order Quantity
10 piece
Customs Tariff Number
85369010
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-PLS, CR-PSS, CR-MxLS(H), CR-MxSS, CR-MxSF(B), CR-UxS(M) sockets
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
38 mm
Product Net Height
26 mm
Product Net Depth / Length
75 mm
Product Net Weight
0.065 kg
Function
Accessory for interface relays CR-U
Sub-Function
Socket for universal relays
Sub-Function 2
Socket for universal relay 2 c/o and module
Rated Operational Voltage
250 V
Output
none
Terminal Type
Screw Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 10 A
Rated Insulation Voltage (Ui)
2 V
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61984 | UL 508
Connecting Capacity Main Circuit UL/CSA
Flexible with Ferrule 2x 20-16 AWG | Rigid 2x 20-14 AWG | Stranded 2 x 20-14 AWG
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +70 °C
Maximum Operating Altitude Permissible
2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
RoHS Status
Following EU Directive 2011/65/EU
CSA Certificate
CSA Certificate – Sockets and function modules for pluggable interface relays CR-S, CR-P, CR-M, CR-U
cURus Certificate
cURus508_E244328
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
Package Level 1 Units
box 10 piece
Package Level 1 Width
133 mm
Package Level 1 Depth / Length
81 mm
Package Level 1 Height
84 mm
Package Level 1 Gross Weight
0.652 kg
Package Level 1 EAN
4013614374357
Object Classification Code
K
ETIM 7
EC001456 - Relay socket
ETIM 8
EC001456 - Relay socket
ETIM 9
EC001456 - Relay socket
eClass
V11.0 : 27371603
UNSPSC
39122335
E-Number (Finland)
2712799
E-Number (Norway)
4187494
E-Number (Sweden)
4005435
Feature: 2 c/o SPDT socket for CR-U relays with screw terminals. Business Impact: Simplified wiring, reduced miswiring risk, and faster field servicing in control panels. Application: Panel-mounted interface relays in machine automation projects. The CR-U2S socket enables reliable, plug-in connections for universal relays, improving uptime and ease of replacement in critical processes. Feature: Rated 250 V and 10 A Ie at 230 V. Business Impact: Supports standard industrial control circuits with ample headroom, ensuring safe switching of common loads. Application: Process automation and safety interlock applications that demand robust control interfaces. Feature: Compact footprint (38 mm x 26 mm x 75 mm) and 0.065 kg weight. Business Impact: Space-efficient installation in dense cabinets, reducing enclosure size and material costs. Application: Modern control panels where real estate is premium. Feature: RoHS compliant with CE, cURus and UL/CSA certifications. Business Impact: Compliance reduces risk during audits and accelerates global deployment. Application: International projects requiring regulated electrical safety. Feature: Accessories availability (function modules, holder, marker). Business Impact: Extends functionality without replacing sockets, saving capital expenditure. Application: Customizable interfaces for complex automation sequences. Feature: Stocked at multiple warehouses with zero lead time in listed sources. Business Impact: Immediate availability lowers downtime and accelerates project timelines. Application: Just-in-time procurement for large installations and OEMs.
Get a Quick Quote for a ABB 1SVR405670R0000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405670R0000?
Enquire Now
FAQs
The ABB 1SVR405670R0000 socket is designed for CR-U universal relays with 2 changeover outputs (SPDT). It uses screw terminals for secure, vibration-resistant wiring and supports pluggable accessories such as function modules, holder, and markers to match specific automation needs in control panels.
This socket carries CE, cURus, and CSA/UL certifications, along with UL 508 compatibility in its documented standards. These certifications confirm electrical safety, compatibility with international electrical codes, and reliability in industrial environments, helping ensure regulatory compliance and smoother cross-border deployments.
Key specs include a rated operational voltage of 250 V, rated operational current (Ie) of 10 A at 230 V, and screw terminal connections. Mechanical dimensions are 38 mm wide, 26 mm high, and 75 mm deep, with a package weight of 0.065 kg, designed for mounting in 1 position and standard CAN/CSA IEC/EN dimensions.
Yes, the datasheet indicates operation from -40 to +70 °C and up to 2000 m altitude, with RoHS compliance and compliant materials. This makes the socket appropriate for harsh industrial environments, automotive-like control panels, and process automation where temperature and environmental tolerance are essential.
