ABB 1SVR405670R1100 Socket Small for CR-U Relay - UL 508
Part Number: 1SVR405670R1100
Quick Summary
ABB 1SVR405670R1100 Socket Small for CR-U Relay powers compact control panels by housing CR-U relays with two SPDT outputs. Engineers often wrestle with space constraints and wiring complexity in tight enclosures. This socket carries CE, UL 508, CSA and cURus certifications, ensuring regulatory compliance across global control panels. By offering a compact footprint and straightforward screw-terminals, it delivers reduced wiring time and scalable automation, while remaining compatible with CR-U interface relays and common control architectures.
Product Information
Extended Description

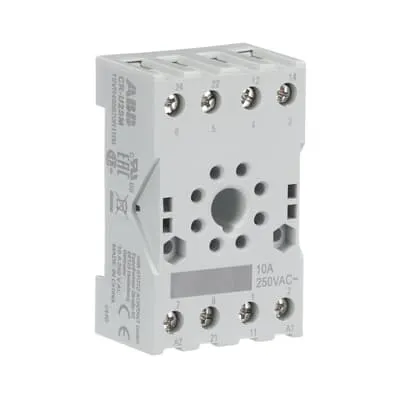

1SVR405670R1100 ABB: The CR-U2SM socket is from the CR-U (universal) relay range. The small socket is suitable for CR-U relays with 2 c/o (SPDT) output contacts. The socket has screw connection terminals. Pluggable function modules, holder and marker are available as accessories
EAN
4013614529306
Minimum Order Quantity
10 piece
Customs Tariff Number
85369010
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-PLS, CR-PSS, CR-MxLS(H), CR-MxSS, CR-MxSF(B), CR-UxS(M) sockets
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
38 mm
Product Net Height
24.2 mm
Product Net Depth / Length
68.2 mm
Product Net Weight
0.054 kg
Function
Accessory for interface relays CR-U
Sub-Function
Socket for universal relays
Sub-Function 2
Socket small for universal relay 2 c/o
Rated Operational Voltage
250 V
Output
none
Terminal Type
Screw Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 10 A
Rated Insulation Voltage (Ui)
2 V
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61984 | UL 508
Connecting Capacity Main Circuit UL/CSA
Flexible with Ferrule 2x 20-16 AWG | Rigid 2x 20-14 AWG | Stranded 2 x 20-14 AWG
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +70 °C
Maximum Operating Altitude Permissible
2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
RoHS Status
Following EU Directive 2011/65/EU
CSA Certificate
CSA Certificate – Sockets and function modules for pluggable interface relays CR-S, CR-P, CR-M, CR-U
cURus Certificate
cURus508_E244328
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-P, CR-U Socket and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
Package Level 1 Units
box 10 piece
Package Level 1 Width
73 mm
Package Level 1 Depth / Length
120 mm
Package Level 1 Height
84 mm
Package Level 1 Gross Weight
0.59 kg
Package Level 1 EAN
4013614378881
Object Classification Code
K
ETIM 7
EC001456 - Relay socket
ETIM 8
EC001456 - Relay socket
ETIM 9
EC001456 - Relay socket
eClass
V11.0 : 27371603
UNSPSC
39122335
E-Number (Norway)
4187497
Compact form factor with a 38 mm width, 24.2 mm height, and 68.2 mm depth saves panel space and simplifies installation in crowded control cabinets. Feature → Business Impact → Application. The screw-terminal interface supports flexible with ferrule and rigid conductors, delivering secure terminations that reduce maintenance and rework in machine controls. Compatibility with CR-U relays that have two SPDT outputs enables fast plug-and-play integration in safety interlocks and signal routing within electrical protection and circuit control applications. Certifications including CE, UL 508, CSA and UKCA streamline validation and regulatory compliance, cutting project lead times and risk for panel builders. Accessory ecosystem with pluggable function modules, holders and markers enhances modularity and labeling, speeding up commissioning in automated lines. The operating range of -40 to +70 °C and operation up to 2000 m altitude ensures consistent performance in harsh industrial environments, while a compact 0.054 kg weight supports straightforward handling during installation. With a rated operating voltage of 250 V and current of 10 A (AC-12), this socket reliably supports typical control loads in factory floors and process lines.
