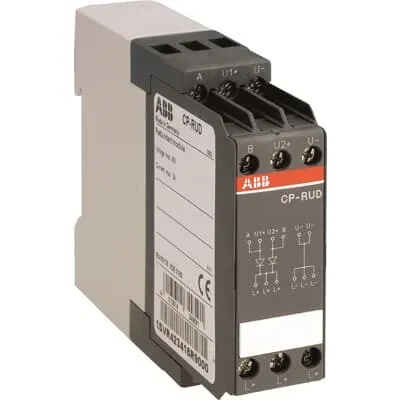

ABB 1SVR423418R9000 Redundancy unit - IEC 60950-1
Part Number: 1SVR423418R9000
Quick Summary
ABB CP-RUD redundancy unit decouples two CP-E power supplies to provide a single 24 V DC output. In automated control panels, a single failing supply can cascade into downtime, and this module prevents that by isolating and sharing load between sources. It carries IEC 60950-1 safety certification, CE Declaration of Conformity, and RoHS compliance, with IP20 housing on both the unit and terminals. Designed for CP-E compatibility and easy cabinet integration, it supports fast installation, predictable maintenance, and lower spare-parts inventory while delivering robust uptime for critical processes. This makes it suitable for machine builders and integrators seeking reliable power resilience.
Product Information
Extended Description
1SVR423418R9000 ABB: The CP-RUD is a redundancy unit for CP-E range power supplies. This module, with 2 inputs each up to 2.5 A and an output up to 5 A, provides decoupling of two CP-E range power supplies with an output < 35 V.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
160 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Minimum Order Quantity
1 piece
Customs Tariff Number
85044083
Replacement Product ID (NEW)
1SVR427049R0000
Data Sheet, Technical Information
Data sheet - CP-RUD Redundancy unit
Instructions and Manuals
Data sheet - CP-RUD Redundancy unit
Product Net Width
22.5 mm
Product Net Height
78 mm
Product Net Depth / Length
100 mm
Product Net Weight
0.118 kg
Package Level 1 Width
106 mm
Package Level 1 Depth / Length
81 mm
Package Level 1 Height
26 mm
Package Level 1 Gross Weight
0.132 kg
Package Level 1 EAN
4013614349591
Package Level 1 Units
box 1 piece
Function
Redundancy unit
Input Voltage (Uin)
5 ... 35 V DC
Output Voltage (Uout)
24 V DC
Output Current
5 A
Degree of Protection
Housing IP20 | Terminals IP20
Standards
IEC 60950-1
Ambient Air Temperature
Operation -20 ... +60 °C | Storage -40 ... +85 °C
RoHS Information
1SVD981001-4400
RoHS Status
Following EU Directive 2011/65/EU
SCIP
3059f5cd-63e4-4a27-b107-4efad23e2612 Germany (DE)
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Declaration of Conformity - CE
1SVD982030-00
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
Feature: Dual input capability up to 2.5 A per input enables power decoupling for two CP-E supplies. Business Impact: Reduces single-point failures and improves system availability in critical automation lines. Application: Suitable for machinery that relies on two redundant DC feeds delivering up to 5 A at 24 V DC. The 5–35 V DC input range and 24 V DC output simplify integration with existing CP-E modules. Feature: IP20 housing and terminals provide a protected, accessible interface in standard cabinets. Business Impact: Easier mounting and safer maintenance, lowering installation time. Application: Ideal for panel builders seeking compact redundancy in tightly packaged control panels. Feature: RoHS, SCIP, and WEEE compliance ensure regulatory readiness. Business Impact: Compliance reduces risk and streamlines procurement for global deployments. Application: Global manufacturing environments seeking safe, sustainable power solutions. Feature: 0 day lead time and 'Active' sales status support fast deployment. Business Impact: Shorter project timelines and improved ROI. Application: Projects with tight schedules requiring immediate availability.
Get a Quick Quote for a ABB 1SVR423418R9000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR423418R9000?
Enquire Now
FAQs
The CP-RUD module is designed to decouple two CP-E range power supplies, using two inputs up to 2.5 A each and a common 24 V DC output rated at 5 A. It fits CP-E based control architectures and uses a 5–35 V DC input range.
Key specs include 5–35 V DC input, 24 V DC output, up to 5 A output current, and two input channels each capable of 2.5 A. The unit maintains output below 35 V and is IP20 rated for housing and terminals.
Ideal for manufacturing and packaging lines where DC control circuits rely on two redundant feeds. It decouples supply faults, improves uptime, and simplifies cabinet design by sharing load across CP-E power sources.
The module complies with IEC 60950-1 safety standards, carries a CE Declaration of Conformity, and adheres to RoHS and WEEE requirements, with IP20 protection for housing and terminals.
With 0 day lead time and Active stock at multiple warehouses, deployment is fast. The product’s warranty policy states warranty returns are handled, and the module reduces spare-parts and downtime costs, delivering faster ROI in uptime-critical applications.
