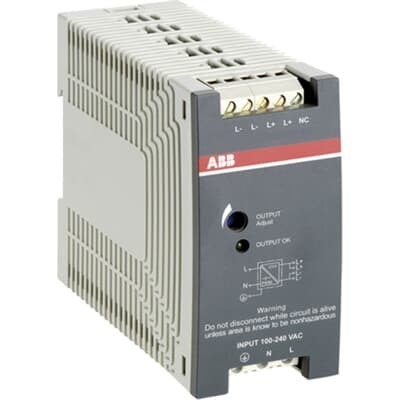

ABB 1SVR427032R0000 Power Supply - 24 V DC 60 W UL/CE/UKCA
Part Number: 1SVR427032R0000
Quick Summary
ABB 1SVR427032R0000 power supply delivers 24 V DC at up to 2.5 A for industrial automation applications. It addresses the need for a stable rail in control panels despite fluctuating mains input. This module carries robust safety and regulatory marks including CE, UKCA, and UL/cUL approvals, backed by RoHS/REACH declarations. Its DIN rail-friendly form factor, parallel operation capability, and signaling output for voltage OK help reduce panel space, simplify wiring, and improve system uptime in harsh environments.
Product Information
Extended Description
1SVR427032R0000 ABB: The CP-E 24/2.5 is a power supply from the CP-E range. The primary switch mode power supply offers a wide range input of 85-264 V AC and 90-375 V DC, rated input voltage is 100-240 V AC. The rated output power is 60 W, rated output current is 2.5 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 24 to 28 V DC. The power supply provides a U/I output characteristic and allows parallel operation to enable redundancy. A further feature is the signalling output (transistor) for output voltage OK. A redundancy unit is available as accessory.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Germany (DE)
Lead Time
90 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHABB001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
160 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Country of Origin
Taiwan (Chinese Taipei)
Lead Time
5 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Warranty Return
Product under warranty must be returned
Country of Origin
Taiwan (Chinese Taipei)
Lead Time
5 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
INABB005EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
5 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Saleable
Yes
Stocked At Warehouses
SEPOW002EXPU
Minimum Order Quantity
1 piece
Customs Tariff Number
85044095
Data Sheet, Technical Information
Data sheet - CP-E 24/2.5 Primary switch mode power supply
Instructions and Manuals
Instruction Sheet / Manual - CP-E 12/2.5, CP-E 24/1.25, CP-E 24/2.5, CP-E 48/0.62 and CP-E 48/1.25
Product Net Width
40.5 mm
Product Net Height
90 mm
Product Net Depth / Length
114 mm
Product Net Weight
0.331 kg
Package Level 1 Width
132 mm
Package Level 1 Depth / Length
154 mm
Package Level 1 Height
58 mm
Package Level 1 Gross Weight
0.4 kg
Package Level 1 EAN
4016779656887
Package Level 1 Units
box 1 piece
Function
Switch mode power supply
Number of Phases
1
Rated Input Voltage (UIN)
100 ... 240 V AC
Input Voltage (Uin)
85 ... 264 V AC | 90 ... 375 V DC
Rated Frequency (f)
50 Hz
Rated Frequency Limits
47 ... 63 Hz
Characteristic of Output
U/I characteristic curve
Rated Output Power
60 W
Output Power
60 W
Rated Output Voltage
24 V DC
Output Voltage (Uout)
24 V DC
Rated Output Current
2.5 A
Output Current
2.5 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit / Output Circuit 4 kV | Input Circuit / PE 2.5 kV | Input Circuit / Relay Contact 4 kV | Output Circuit / PE 0.5 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 300 V | Input Circuit / PE 300 V | Input Circuit / Relay Contact 300 V | Output Circuit / PE 50 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.2 ... 2.5 mm² | Rigid 0.2 ... 2.5 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 0.2 ... 2.5 mm² | Rigid 0.2 ... 2.5 mm²
Tightening Torque
Input Circuit 0.6 N·m | Output Circuit 0.6 N·m
Wire Stripping Length
Input Circuit 6 mm | Output Circuit 6 mm
Recommended Screw Driver
PH1
Minimum Mounting Distance
Electrical Conductive Board, Horizontal 25 mm | Electrical Conductive Board, Vertical 25 mm | Other Device Same Type, Horizontal 25 mm | Other Device Same Type, Vertical 25 mm
Mounting Position
1
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
ANSI/ISA-12.12 | CAN/CSA C22.2 No.107.1 | CAN/CSA C22.2 No.213 | CAN/CSA C22.2 No.223 | CAN/CSA C22.2 No.60950 | IEC/EN 63000 | IEC 60950-1 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | UL 1310 | UL 508 | UL 60950
Connecting Capacity Input Circuit UL/CSA
Rigid 24-14 AWG
Connecting Capacity Output Circuit UL/CSA
Rigid 24-14 AWG
Tightening Torque UL/CSA
Input Circuit 5 in·lb | Output Circuit 5 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 15 kV | Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3
Level 3 10 V/m
Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4
Level 4 Power Supply Port Signal 4 kV
Surge Immunity acc. to IEC 61000-4-5
Level 3 Line-to-Line 2 kV | Level 4 Line-to-Ground 4 kV
Conducted Disturbances Immunity acc. to IEC 61000-4-6
Level 3 10 V
Electromagnetic Compatibility (EMC)
Immunity - Class B | Emission - Class B
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
5000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
RoHS Declaration of conformity for Power Supplies
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Power Supplies
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
cUL Certificate
cUL508_E174460
cUR Certificate
cUR60950_E196145 | cUR1310_E313203 | cUR_ANSI_E317914
Declaration of Conformity - CE
EU Declaration of conformity - CP-E 48/0.62; CP-E 24/1.25; CP-E 48/1.25; CP-E 24/2.5; CON.CP-E 24/2.5 and CP-E 12/2.5 Power supply units
Declaration of Conformity - UKCA
UK Declaration of conformity - CP-E 48/0.62; CP-E 24/1.25; CP-E 48/1.25; CP-E 24/2.5; CON.CP-E 24/2.5 and CP-E 12/2.5 Power supply units
UL Certificate
UL Certificate (UL 508) - CP-C, CP-D, CP-E, CP-S, and CP-T range power supply units, CP-ASI power supply units and DC/DC converter, CP-B range buffer modules and extension module, CC-E and CC-U range analog signal converters
UR Certificate
UR Certificate (UL 60950) - CP-C, CP-D, CP-E, CP-S, CP-T range power supply units, CP-A range accessories, and CP-ASI power supply units and DC/DC converter | UR Certificate (UL 1310) - CP-D, CP-E range power supply units | UR Certificate (ANSI/ISA-12.12) - CP-D, CP-T range power supply units
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
E-Number (Finland)
2712838
E-Number (Norway)
6609444
E-Number (Sweden)
5218703
Feature: Wide input range and 60 W output provide reliable performance across global mains conditions. Business Impact: Fewer panel redesigns and less inventory for regional deployments, lowering total cost of ownership. Application: Ideal for machine control and process automation in manufacturing lines. Feature: Parallel operation for redundancy with a signaling output to verify voltage OK. Business Impact: Improves availability and fault detection, enabling quick maintenance and reduced downtime. Application: Critical control loops and safety interlocks in automated cells. Feature: 24 V DC output with U/I characteristic and adjustable voltage (24–28 V). Business Impact: Ensures compatibility with different loads and sensing circuits, reducing the need for additional regulators. Application: PLC input cards, sensors, and actuators in control cabinets. Feature: DIN rail mounting (TH35-15 or TH35-7.5) and compact footprint. Business Impact: Easier installation, faster commissioning, and scalable cabinet design. Application: Standardized industrial enclosures and panel design. Feature: Broad compliance footprint including CE, UKCA, UL/cUL, RoHS/REACH; IP20 enclosure protection. Business Impact: Simplifies global procurement and regulatory acceptance, easing audits and product stewardship. Application: Global manufacturing lines with strict compliance requirements. Feature: Ambient operating range -40 to +70 °C and up to 5000 m altitude. Business Impact: Greater resilience in harsh environments, reducing the need for climate-controlled cabinets. Application: Industrial automation in factories, outdoor enclosures, and equipment rooms with limited cooling. Insight: The CP-E 24/2.5 family is known for robust reliability and easy integration with ABB and third-party control systems, making it a trusted choice for engineers aiming to minimize lifecycle costs and maximize uptime.
Get a Quick Quote for a ABB 1SVR427032R0000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR427032R0000?
Enquire Now
FAQs
Follow standard DIN rail mounting procedures for TH35 rails (TH35-15 or TH35-7.5). Use 0.6 N·m tightening torque on inputs/outputs, clamp flexible or rigid conductors up to 2.5 mm², and trim wire to length per the stripping guide. Verify polarity and connect the signaling output to your PLC input so you can monitor the voltage OK condition.
Input voltage covers 100–240 VAC (and 85–264 VAC supported in practice) or 90–375 VDC; output is 24 V DC up to 2.5 A (60 W). It features an adjustable output range of 24–28 V DC, with an U/I characteristic curve and a transistor-based OK signal for health monitoring in automation panels.
Yes. It is rated for operation from -40 to +70 °C and up to 5000 m altitude. The enclosure is IP20, with suitable wiring protection for typical industrial cabinets. This makes it suitable for factories, process plants, and remote installations where ambient conditions can vary.
It carries CE and UKCA declarations, UL 508 and cUL certifications, and UR/UL60950 related approvals. RoHS/REACH declarations and WEEE categorization (B2B) are included, aiding regulatory compliance and global procurement for multi-region production lines.
Lead time is listed as 0 days in supplier information, indicating immediate availability at stocked warehouses. Warranty terms specify that products under warranty must be returned, aligning with standard ABB warranty practices for power supplies and related components.
