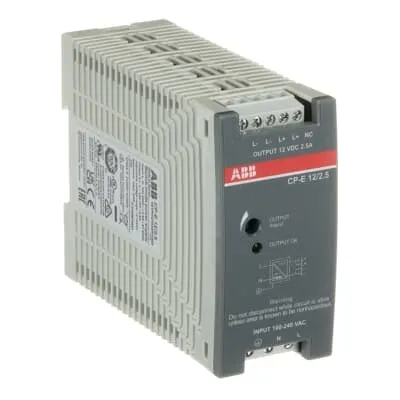

ABB 1SVR427032R1000 Power Supply - CE/UL Listed
Part Number: 1SVR427032R1000
Quick Summary
ABB 1SVR427032R1000 Power Supply delivers 12 V DC for automation control hardware from a 100-240 VAC input. Facing fluctuating mains and limited spare parts, engineers need a versatile, quickly deployable solution. Certified for CE and UL/cUL compliance, with UKCA, EMC immunity, and IP20 housing, it meets stringent industrial standards. Designed for OEM builds and control cabinets, it reduces inventory overhead while delivering reliable performance and easy DIN-rail installation.
Product Information
Extended Description
1SVR427032R1000 ABB: The CP-E 12/2.5 is a power supply from the CP-E range. The primary switch mode power supply offers a wide range input of 85-264 V AC and 90-375 V DC, rated input voltage is 100-240 V AC. The rated output power is 30 W, rated output current is 2.5 A at an output voltage of 12 V DC. The output voltage is adjustable within a range of 12 to 14 V DC. The power supply provides a U/I output characteristic and allows parallel operation to enable redundancy. A redundancy unit is available as accessory.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
160 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Minimum Order Quantity
1 piece
Customs Tariff Number
85044095
Data Sheet, Technical Information
Data sheet - CP-E 12/2.5 Primary switch mode power supply
Instructions and Manuals
Instruction Sheet / Manual - CP-E 12/2.5, CP-E 24/1.25, CP-E 24/2.5, CP-E 48/0.62 and CP-E 48/1.25
Product Net Width
40.5 mm
Product Net Height
90 mm
Product Net Depth / Length
114 mm
Product Net Weight
0.287 kg
Package Level 1 Width
132 mm
Package Level 1 Depth / Length
154 mm
Package Level 1 Height
58 mm
Package Level 1 Gross Weight
0.358 kg
Package Level 1 EAN
4016779656900
Package Level 1 Units
box 1 piece
Function
Switch mode power supply
Number of Phases
1
Rated Input Voltage (UIN)
100 ... 240 V AC
Input Voltage (Uin)
85 ... 264 V AC | 90 ... 375 V DC
Rated Frequency (f)
50 Hz
Rated Frequency Limits
47 ... 63 Hz
Characteristic of Output
U/I characteristic curve
Rated Output Power
30 W
Output Power
30 W
Rated Output Voltage
12 V DC
Output Voltage (Uout)
12 V DC
Rated Output Current
2.5 A
Output Current
2.5 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit / Output Circuit 4 kV | Input Circuit / PE 2.5 kV | Input Circuit / Relay Contact 4 kV | Output Circuit / PE 0.5 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 300 V | Input Circuit / PE 300 V | Input Circuit / Relay Contact 300 V | Output Circuit / PE 50 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.2 ... 2.5 mm² | Rigid 0.2 ... 2.5 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 0.2 ... 2.5 mm² | Rigid 0.2 ... 2.5 mm²
Tightening Torque
Input Circuit 0.6 N·m | Output Circuit 0.6 N·m
Wire Stripping Length
Input Circuit 6 mm | Output Circuit 6 mm
Recommended Screw Driver
PH1
Minimum Mounting Distance
Electrical Conductive Board, Horizontal 25 mm | Electrical Conductive Board, Vertical 25 mm | Other Device Same Type, Horizontal 25 mm | Other Device Same Type, Vertical 25 mm
Mounting Position
1
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
ANSI/ISA-12.12 | CAN/CSA C22.2 No.107.1 | CAN/CSA C22.2 No.213 | CAN/CSA C22.2 No.223 | CAN/CSA C22.2 No.60950 | IEC/EN 63000 | IEC 60950-1 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | UL 1310 | UL 508 | UL 60950
Connecting Capacity Input Circuit UL/CSA
Rigid 24-14 AWG
Connecting Capacity Output Circuit UL/CSA
Rigid 24-14 AWG
Tightening Torque UL/CSA
Input Circuit 5 in·lb | Output Circuit 5 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 15 kV | Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3
Level 3 10 V/m
Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4
Level 4 Power Supply Port Signal 4 kV
Surge Immunity acc. to IEC 61000-4-5
Level 3 Line-to-Line 2 kV | Level 4 Line-to-Ground 4 kV
Conducted Disturbances Immunity acc. to IEC 61000-4-6
Level 3 10 V
Electromagnetic Compatibility (EMC)
Immunity - Class B | Emission - Class B
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
5000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
RoHS Declaration of conformity for Power Supplies
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Power Supplies
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
cUL Certificate
cUL508_E174460
cUR Certificate
cUR60950_E196145 | cUR1310_E313203 | cUR_ANSI_E317914
Declaration of Conformity - CE
EU Declaration of conformity - CP-E 48/0.62; CP-E 24/1.25; CP-E 48/1.25; CP-E 24/2.5; CON.CP-E 24/2.5 and CP-E 12/2.5 Power supply units
Declaration of Conformity - UKCA
UK Declaration of conformity - CP-E 48/0.62; CP-E 24/1.25; CP-E 48/1.25; CP-E 24/2.5; CON.CP-E 24/2.5 and CP-E 12/2.5 Power supply units
UL Certificate
UL Certificate (UL 508) - CP-C, CP-D, CP-E, CP-S, and CP-T range power supply units, CP-ASI power supply units and DC/DC converter, CP-B range buffer modules and extension module, CC-E and CC-U range analog signal converters
UR Certificate
UR Certificate (UL 60950) - CP-C, CP-D, CP-E, CP-S, CP-T range power supply units, CP-A range accessories, and CP-ASI power supply units and DC/DC converter | UR Certificate (UL 1310) - CP-D, CP-E range power supply units | UR Certificate (ANSI/ISA-12.12) - CP-D, CP-T range power supply units
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
E-Number (Finland)
2712840
E-Number (Norway)
6609446
Wide input tolerance reduces the need for multiple SKUs across regions. The CP-E 12/2.5 accepts 85-264 VAC or 90-375 V DC and is rated at 100-240 VAC, simplifying global deployment and lowering stocking variety. In automation projects, this translates to faster commissioning and fewer last-minute substitutions. The unit delivers 30 W of output power at 12 V DC (2.5 A), providing ample headroom for PLCs, sensors, and small actuators, while the U/I characteristic supports stable operation under varying loads to improve control performance. Output is adjustable from 12 to 14 V DC for fine-tuning downstream regulators or motors, reducing the need for additional converters. Parallel operation enables redundancy for uptime-critical processes, with a dedicated accessory available. The compact DIN-rail package (40.5 mm wide, 114 mm deep) and mounting options TH35-15/TH35-7.5 simplify panel layouts and fastenings, cutting installation time. Certification and EMC features—IP20 enclosure, RoHS/REACH compliance, and robust immunity ratings—help meet regulatory requirements and audit expectations. The operating range of -40 to +70 C and altitude up to 5000 m makes the device suitable for harsh environments without derating, expanding deployment options for manufacturing and process environments.
Get a Quick Quote for a ABB 1SVR427032R1000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR427032R1000?
Enquire Now
FAQs
Mount the unit on a compatible DIN rail (TH35-15 or TH35-7.5). Use the provided mounting hardware and tighten input and output terminals to 0.6 N·m as specified. Connect flexible ferrule 0.2–2.5 mm² or rigid 0.2–2.5 mm² conductors, and strip 6 mm of insulation. Ensure a minimum 25 mm clearance from other devices and maintain IP20 protection.
Input voltage range is 85–264 VAC or 90–375 V DC, with a rated input of 100–240 VAC. The device delivers 12 V DC at up to 2.5 A (30 W) with an adjustable output between 12 and 14 V DC and an U/I characteristic for varied loads, suitable for PLCs and control circuits.
Yes. The CP-E 12/2.5 supports parallel operation to enable redundancy, and ABB offers a redundancy unit as an accessory, enabling high-availability configurations for mission-critical control panels and machines.
The unit carries CE and UKCA declarations, UL 508, cUL and cUR certificates, RoHS and REACH compliance, and robust EMC immunity. These certifications help ensure regulatory compliance across global installations in industrial environments.
Mount on DIN rail with TH35-15 or TH35-7.5, maintain IP20 rating for enclosure and terminals, and observe -40 to +70 °C operating conditions and up to 5000 m altitude. Use the redundancy accessory for uptime, and keep wiring tidy to minimize interference and heat buildup in cabinets.
