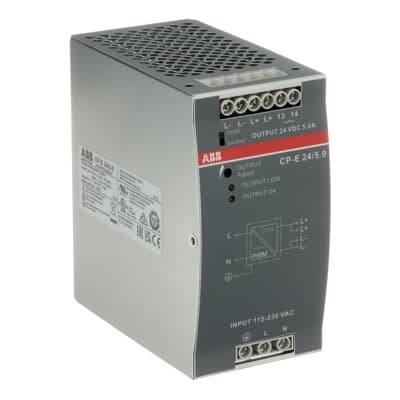

ABB 1SVR427034R0000 Power Supply - CE UL cUL
Part Number: 1SVR427034R0000
Quick Summary
ABB CP-E 24/5.0 power supply provides 24 V DC at 5 A for industrial control systems. Engineers often struggle with devices that fail under wide input swings or harsh environments; this unit auto-selects 115/230 VAC or 210–375 VDC to maintain uptime. It carries CE and UL 508 certifications and features an IP20 enclosure, signaling safety and regulatory compliance. With DIN-rail mounting, robust EMC performance, and the option to connect up to three units in parallel, it reduces panel complexity, stocking requirements, and downtime for OEMs and automation integrators.
Product Information
Extended Description
1SVR427034R0000 ABB: The CP-E 24/5.0 is a power supply from the CP-E range. The primary switch mode power supply offers a wide range input of 90-132 V AC, 180-264 V AC and 210-375 V DC, rated input voltage is 115 or 230 V AC (auto select). The rated output power is 120 W, rated output current is 5 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 22.5 to 28.5 V DC. The power supply provides an U/I output characteristic. In order to increase capacity, up to 3 units can be connected in parallel. A redundancy unit is available as accessory.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Switzerland (CH)
Lead Time
28 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
160 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Lead Time
51 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USSVCEXPU
Warranty Return
Product under warranty must be returned
Minimum Order Quantity
1 piece
Customs Tariff Number
85044095
Data Sheet, Technical Information
Data sheet - CP-E 24/5.0 Primary switch mode power supply
Instructions and Manuals
Instruction Sheet / Manual - CP-E 12/10.0 and CP-E 24/5.0
Product Net Width
63.2 mm
Product Net Height
123.6 mm
Product Net Depth / Length
123.6 mm
Product Net Weight
0.882 kg
Package Level 1 Width
162 mm
Package Level 1 Depth / Length
160 mm
Package Level 1 Height
85 mm
Package Level 1 Gross Weight
0.998 kg
Package Level 1 EAN
4016779669689
Package Level 1 Units
box 1 piece
Function
Switch mode power supply
Number of Phases
1
Rated Input Voltage (UIN)
115 / 230 V AC
Input Voltage (Uin)
90 ... 132 V AC | 180 ... 264 V AC | 210 ... 375 V DC
Rated Frequency (f)
50 Hz
Rated Frequency Limits
47 ... 63 Hz
Characteristic of Output
U/I characteristic curve
Rated Output Power
120 W
Output Power
120 W
Rated Output Voltage
24 V DC
Output Voltage (Uout)
24 V DC
Rated Output Current
5 A
Output Current
5 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit / Output Circuit 4 kV | Input Circuit / PE 2.5 kV | Input Circuit / Relay Contact 4 kV | Output Circuit / PE 0.5 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 300 V | Input Circuit / PE 300 V | Input Circuit / Relay Contact 300 V | Output Circuit / PE 50 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.2 ... 4 mm² | Rigid 0.2 ... 6 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 0.2 ... 4 mm² | Rigid 0.2 ... 6 mm²
Tightening Torque
Input Circuit 1 N·m | Output Circuit 0.62 N·m
Wire Stripping Length
Input Circuit 8 mm | Output Circuit 8 mm
Recommended Screw Driver
PH2
Minimum Mounting Distance
Electrical Conductive Board, Horizontal 25 mm | Electrical Conductive Board, Vertical 25 mm | Other Device Same Type, Horizontal 25 mm | Other Device Same Type, Vertical 25 mm
Mounting Position
1
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
ANSI/ISA-12.12 | CAN/CSA C22.2 No.107.1 | CAN/CSA C22.2 No.213 | CAN/CSA C22.2 No.60950 | IEC/EN 63000 | IEC 60950-1 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | UL 508 | UL 60950
Connecting Capacity Input Circuit UL/CSA
Rigid 24-10 AWG
Connecting Capacity Output Circuit UL/CSA
Rigid 24-10 AWG
Tightening Torque UL/CSA
Input Circuit 9 in·lb | Output Circuit 5.5 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 15 kV | Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3
Level 3 10 V/m
Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4
Level 4 Power Supply Port Signal 4 kV
Surge Immunity acc. to IEC 61000-4-5
Level 3 Line-to-Line 2 kV | Level 4 Line-to-Ground 4 kV
Conducted Disturbances Immunity acc. to IEC 61000-4-6
Level 3 10 V
Electromagnetic Compatibility (EMC)
Immunity - Class B | Emission - Class B
Ambient Air Temperature
Operation -35 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
5000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
RoHS Declaration of conformity for Power Supplies
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Power Supplies
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
cUL Certificate
cUL508_E174460
cUR Certificate
cUR60950_E196145 | cUR_ANSI_E317914
Declaration of Conformity - CE
EU Declaration of conformity - CP-E 24/5.0; CP-E 48/5.0; CP-E24/10.0; CP-E 12/10.0; CP-E 48/10.0 and CP-E 24/20.0 Power supply units
Declaration of Conformity - UKCA
UK Declaration of conformity - CP-E 24/5.0; CP-E 48/5.0; CP-E24/10.0; CP-E 12/10.0; CP-E 48/10.0 and CP-E 24/20.0 Power supply units
UL Certificate
UL Certificate (UL 508) - CP-C, CP-D, CP-E, CP-S, and CP-T range power supply units, CP-ASI power supply units and DC/DC converter, CP-B range buffer modules and extension module, CC-E and CC-U range analog signal converters
UR Certificate
UR Certificate (UL 60950) - CP-C, CP-D, CP-E, CP-S, CP-T range power supply units, CP-A range accessories, and CP-ASI power supply units and DC/DC converter | UR Certificate (ANSI/ISA-12.12) - CP-D, CP-T range power supply units
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
E-Number (Finland)
2712082
E-Number (Norway)
6609450
E-Number (Sweden)
5248134
The CP-E 24/5.0 combines a wide input range and stable 24 V DC output to reduce wiring and inventory. The unit accepts 90–132 VAC, 180–264 VAC and 210–375 V DC inputs, auto-selecting to ensure uninterrupted operation across regional grids, which translates to fewer field failures in machine controls and panel builds. In real-world automation, this means faster commissioning and less rework during power-up. The 120 W rated power and 5 A output provide headroom for PLCs, I/O modules, and sensors, delivering reliable performance with tight regulation and a constant 24 V DC rail; the application is industrial control cabinets and automated lines. Output is adjustable from 22.5 to 28.5 V DC, offering flexibility for load variations and voltage-sensitive devices while maintaining system stability. For designer comfort, parallel operation up to three units and available redundancy support improve uptime, minimize maintenance, and simplify funding for scalable automation.
Get a Quick Quote for a ABB 1SVR427034R0000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR427034R0000?
Enquire Now
FAQs
The CP-E 24/5.0 accepts 90–132 VAC, 180–264 VAC, and 210–375 V DC inputs. This auto-select capability simplifies worldwide installation and minimizes the need for multiple part numbers.
Yes. The unit supports DIN rail mounting per TH35 standards (TH35-15 and TH35-7.5), enabling quick, secure installation in control cabinets.
Yes. Up to three CP-E 24/5.0 modules can be connected in parallel to increase available output while maintaining U/I characteristics and current sharing.
The supply is CE and UL 508 certified, with cUL and DoC documentation; RoHS and REACH declarations are provided, and IP20 housing supports safe operation in dry environments.
Ideal for automation panels, PLC power rails, I/O modules, and sensors across production lines, with reliable 24 V DC power, adjustable output, and scalable redundancy for uptime.
