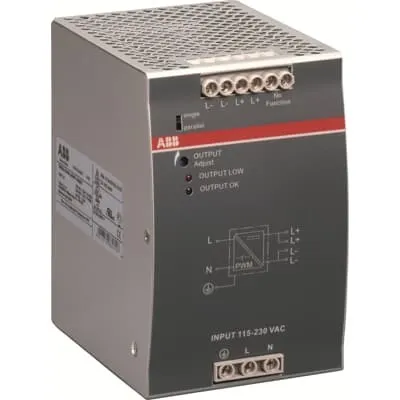

ABB 1SVR427034R2000 Power Supply - UL 508
Part Number: 1SVR427034R2000
Quick Summary
ABB 1SVR427034R2000 Power Supply provides 48 V DC, 5 A for reliable machine control in automation panels. Engineers often contend with varying input voltages and tight cabinet space, which can cause wiring complexity and downtime. This unit carries CE and UKCA certifications, UL 508 and UL/CSA approvals, and RoHS compliance, helping you meet essential regulatory requirements. Wide input ranges with auto-select 115/230 VAC and the ability to parallel up to three units support scalable installations without stock sprawl. The compact DIN-rail package fits standard control panels, while IP20 protection and a broad operating temperature range enable dependable operation in harsh environments. In practice, this translates to faster commissioning and lower lifecycle costs for automation projects.
Product Information
Extended Description
1SVR427034R2000 ABB: The CP-E 48/5.0 is a power supply from the CP-E range. The primary switch mode power supply offers a wide range input of 90-132 V AC, 180-264 V AC and 210-375 V DC, rated input voltage is 115 or 230 V AC (auto select). The rated output power is 240 W, rated output current is 5 A at an output voltage of 48 V DC. The output voltage is adjustable within a range of 47 to 56 V DC. The power supply provides an U/I output characteristic. In order to increase capacity, up to 3 units can be connected in parallel.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
160 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Country of Origin
China (CN)
Lead Time
5 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Saleable
Yes
Stocked At Warehouses
DEUTS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
5 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Saleable
Yes
Stocked At Warehouses
INABB005EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
5 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Saleable
Yes
Stocked At Warehouses
SEPOW002EXPU
Minimum Order Quantity
1 piece
Customs Tariff Number
85044095
Data Sheet, Technical Information
Data sheet - CP-E 48/5.0 Primary switch mode power supply
Instructions and Manuals
Instruction Sheet / Manual - CP-E 24/10.0 and CP-E 48/5.0
Product Net Width
83 mm
Product Net Height
123.6 mm
Product Net Depth / Length
123.6 mm
Product Net Weight
1.322 kg
Package Level 1 Width
162 mm
Package Level 1 Depth / Length
160 mm
Package Level 1 Height
104 mm
Package Level 1 Gross Weight
1.438 kg
Package Level 1 EAN
4016779669726
Package Level 1 Units
box 1 piece
Function
Switch mode power supply
Number of Phases
1
Rated Input Voltage (UIN)
115 / 230 V AC
Input Voltage (Uin)
90 ... 132 V AC | 180 ... 264 V AC | 210 ... 375 V DC
Rated Frequency (f)
50 Hz
Rated Frequency Limits
47 ... 63 Hz
Characteristic of Output
U/I characteristic curve
Rated Output Power
240 W
Output Power
240 W
Rated Output Voltage
48 V DC
Output Voltage (Uout)
48 V DC
Rated Output Current
5 A
Output Current
5 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit / Output Circuit 4 kV | Input Circuit / PE 2.5 kV | Input Circuit / Relay Contact 4 kV | Output Circuit / PE 0.5 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 300 V | Input Circuit / PE 300 V | Input Circuit / Relay Contact 300 V | Output Circuit / PE 60 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.2 ... 4 mm² | Rigid 0.2 ... 6 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 0.2 ... 4 mm² | Rigid 0.2 ... 6 mm²
Tightening Torque
Input Circuit 1 N·m | Output Circuit 0.62 N·m
Wire Stripping Length
Input Circuit 8 mm | Output Circuit 8 mm
Recommended Screw Driver
PH2
Minimum Mounting Distance
Electrical Conductive Board, Horizontal 25 mm | Electrical Conductive Board, Vertical 25 mm | Other Device Same Type, Horizontal 25 mm | Other Device Same Type, Vertical 25 mm
Mounting Position
1
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
ANSI/ISA-12.12 | CAN/CSA C22.2 No.107.1 | CAN/CSA C22.2 No.213 | CAN/CSA C22.2 No.60950 | IEC/EN 63000 | IEC 60950-1 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | UL 508 | UL 60950
Connecting Capacity Input Circuit UL/CSA
Rigid 24-10 AWG
Connecting Capacity Output Circuit UL/CSA
Rigid 24-10 AWG
Tightening Torque UL/CSA
Input Circuit 9 in·lb | Output Circuit 5.5 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 15 kV | Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3
Level 3 10 V/m
Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4
Level 4 Power Supply Port Signal 4 kV
Surge Immunity acc. to IEC 61000-4-5
Level 3 Line-to-Line 2 kV | Level 4 Line-to-Ground 4 kV
Conducted Disturbances Immunity acc. to IEC 61000-4-6
Level 3 10 V
Electromagnetic Compatibility (EMC)
Immunity - Class B | Emission - Class B
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
5000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
RoHS Declaration of conformity for Power Supplies
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Power Supplies
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
cUL Certificate
cUL508_E174460
cUR Certificate
cUR60950_E196145 | cUR_ANSI_E317914
Declaration of Conformity - CE
EU Declaration of conformity - CP-E 24/5.0; CP-E 48/5.0; CP-E24/10.0; CP-E 12/10.0; CP-E 48/10.0 and CP-E 24/20.0 Power supply units
Declaration of Conformity - UKCA
UK Declaration of conformity - CP-E 24/5.0; CP-E 48/5.0; CP-E24/10.0; CP-E 12/10.0; CP-E 48/10.0 and CP-E 24/20.0 Power supply units
UL Certificate
UL Certificate (UL 508) - CP-C, CP-D, CP-E, CP-S, and CP-T range power supply units, CP-ASI power supply units and DC/DC converter, CP-B range buffer modules and extension module, CC-E and CC-U range analog signal converters
UR Certificate
UR Certificate (UL 60950) - CP-C, CP-D, CP-E, CP-S, CP-T range power supply units, CP-A range accessories, and CP-ASI power supply units and DC/DC converter | UR Certificate (ANSI/ISA-12.12) - CP-D, CP-T range power supply units
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
E-Number (Finland)
2712064
E-Number (Norway)
6609452
Feature wide input range provides versatile operation across regions and mains conditions → Business Impact reduces inventory variance and eliminates last-minute substitutions, accelerating global installations → Application automation cabinets and multi-site control panels. Feature 240 W rated output with 48 V DC, 5 A capability and U/I output characteristic → Business Impact ensures stable load regulation and predictable performance, minimizing PLC and I/O noise → Application drives, sensors, and I/O banks in machine automation. Feature parallel operation up to three units → Business Impact increases available current headroom without redesigning power architecture → Application large automation racks and distributed drives. Feature compact DIN rail mounting TH35-15/TH35-7.5 → Business Impact simplifies installation, standardizes panel design, and reduces assembly time → Application retrofit and new-build panels. Feature robust EMC/EMC immunity and IP20 housing with wide ambient temperature range → Business Impact improves reliability in factory floors and cabinet environments, lowering maintenance costs → Application harsh environments and temperature-variant facilities. Feature adjustable output 47–56 V DC and strong protection margins → Business Impact supports load variation and ensures consistent voltage during transients → Application mixed load cabinets and mixed-drive systems. Feature extensive standards and certifications (CE, UKCA, UL/CSA, RoHS) → Business Impact reduces compliance risk and speeds audit processes → Application regulated industries and certified equipment deployments to meet industry mandates. Feature DIN rail and mechanical compatibility with standard installations → Business Impact minimizes retrofit effort and accelerates project timelines → Application retrofits, upgrades, and greenfield deployments in automation plants.
Get a Quick Quote for a ABB 1SVR427034R2000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR427034R2000?
Enquire Now
FAQs
Use the TH35-15 or TH35-7.5 DIN rail mounting options, ensuring a minimum 25 mm clearance around other devices. Tighten input and output terminals to the specified torque (1 N·m for input; 0.62 N·m for output) and use recommended PH2 screwdriver. Verify RoHS and IP20 protections are intact after installation and confirm your load distribution allows for proper parallel operation if additional units are deployed.
The unit supports 115/230 V AC as rated input with auto-select, and accepts a wide range: 90-132 V AC, 180-264 V AC, and 210-375 V DC. This enables seamless operation across regional utilities without manual reconfiguration, simplifying global deployments and reducing wiring errors.
Yes, up to three CP-E 48/5.0 units can be connected in parallel to increase total available output current. This is ideal for multi-axis drives, PLC I/O banks, and large control panels where higher loads are required without redesigning the power architecture.
The CP-E 48/5.0 features CE and UKCA declarations, UL 508 and UL/CSA approvals, and RoHS compliance. These certifications help ensure regulatory alignment for industrial electronics, support customer audits, and mitigate compliance risk across global operations.
Common applications include turning a control cabinet into a reliable power backbone for PLCs, I/O modules, sensors, and small drives. Its wide input range, parallel capability, and DIN-rail form factor make it especially suitable for retrofit projects in existing lines and new builds across global manufacturing environments.
