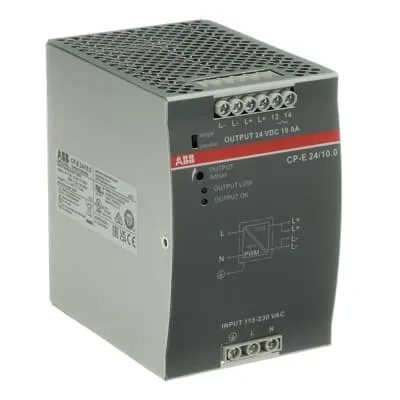

ABB 1SVR427035R0000 Power Supply - UL/CE Certified
Part Number: 1SVR427035R0000
Quick Summary
Power supply 1SVR427035R0000 from ABB provides 24 VDC at up to 10 A for machine control. Engineers often struggle with unreliable outputs and limited headroom for parallel loads. This device carries CE, UL/CSA and cUL certifications, ensuring safety, interoperability and regulatory compliance. From compact control cabinets to distributed I/O, it delivers reliable power with scale-ready parallel operation. The output is adjustable within 22.5 to 28.5 V DC and rated at 240 W, delivering fast response to dynamic loads. Its input range covers 90-132 VAC, 180-264 VAC and 210-375 V DC with auto-select, simplifying global deployments. With DIN rail mounting on TH35 profiles and an IP20 housing, installation is straightforward in crowded panels while maintaining safety.
Product Information
Extended Description
1SVR427035R0000 ABB: The CP-E 24/10.0 is a power supply from the CP-E range. The primary switch mode power supply offers a wide range input of 90-132 V AC, 180-264 V AC and 210-375 V DC, rated input voltage is 115 or 230 V AC (auto select). The rated output power is 240 W, rated output current is 10 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 22.5 to 28.5 V DC. The power supply provides an U/I output characteristic. In order to increase capacity, up to 3 units can be connected in parallel. A redundancy unit is available as accessory.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Country of Origin
China (CN)
Lead Time
120 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Inactive
Quote Only
No
Lead Time
160 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Country of Origin
India (IN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
INABB010EXPU
Warranty Return
Product under warranty must be returned
Minimum Order Quantity
1 piece
Customs Tariff Number
85044095
Data Sheet, Technical Information
Data sheet - CP-E 24/10.0 Primary switch mode power supply
Instructions and Manuals
Instruction Sheet / Manual - CP-E 24/10.0 and CP-E 48/5.0
Product Net Width
83 mm
Product Net Height
123.6 mm
Product Net Depth / Length
123.6 mm
Product Net Weight
1.334 kg
Package Level 1 Width
162 mm
Package Level 1 Depth / Length
160 mm
Package Level 1 Height
104 mm
Package Level 1 Gross Weight
1.445 kg
Package Level 1 EAN
4016779669696
Package Level 1 Units
box 1 piece
Function
Switch mode power supply
Number of Phases
1
Rated Input Voltage (UIN)
115 / 230 V AC
Input Voltage (Uin)
90 ... 132 V AC | 180 ... 264 V AC | 210 ... 375 V DC
Rated Frequency (f)
50 Hz
Rated Frequency Limits
47 ... 63 Hz
Characteristic of Output
U/I characteristic curve
Rated Output Power
240 W
Output Power
240 W
Rated Output Voltage
24 V DC
Output Voltage (Uout)
24 V DC
Rated Output Current
10 A
Output Current
10 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit / Output Circuit 4 kV | Input Circuit / PE 2.5 kV | Input Circuit / Relay Contact 4 kV | Output Circuit / PE 0.5 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 300 V | Input Circuit / PE 300 V | Input Circuit / Relay Contact 300 V | Output Circuit / PE 50 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.2 ... 4 mm² | Rigid 0.2 ... 6 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 0.2 ... 4 mm² | Rigid 0.2 ... 6 mm²
Tightening Torque
Input Circuit 1 N·m | Output Circuit 0.62 N·m
Wire Stripping Length
Input Circuit 8 mm | Output Circuit 8 mm
Recommended Screw Driver
PH2
Minimum Mounting Distance
Electrical Conductive Board, Horizontal 25 mm | Electrical Conductive Board, Vertical 25 mm | Other Device Same Type, Horizontal 25 mm | Other Device Same Type, Vertical 25 mm
Mounting Position
1
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
ANSI/ISA-12.12 | CAN/CSA C22.2 No.107.1 | CAN/CSA C22.2 No.213 | CAN/CSA C22.2 No.60950 | IEC/EN 63000 | IEC 60950-1 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | UL 508 | UL 60950
Connecting Capacity Input Circuit UL/CSA
Rigid 24-10 AWG
Connecting Capacity Output Circuit UL/CSA
Rigid 24-10 AWG
Tightening Torque UL/CSA
Input Circuit 9 in·lb | Output Circuit 5.5 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 15 kV | Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3
Level 3 10 V/m
Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4
Level 4 Power Supply Port Signal 4 kV
Surge Immunity acc. to IEC 61000-4-5
Level 3 Line-to-Line 2 kV | Level 4 Line-to-Ground 4 kV
Conducted Disturbances Immunity acc. to IEC 61000-4-6
Level 3 10 V
Electromagnetic Compatibility (EMC)
Immunity - Class B | Emission - Class B
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
5000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
RoHS Declaration of conformity for Power Supplies
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Power Supplies
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
cUL Certificate
cUL508_E174460
cUR Certificate
cUR60950_E196145 | cUR_ANSI_E317914
Declaration of Conformity - CE
EU Declaration of conformity - CP-E 24/5.0; CP-E 48/5.0; CP-E24/10.0; CP-E 12/10.0; CP-E 48/10.0 and CP-E 24/20.0 Power supply units
Declaration of Conformity - UKCA
UK Declaration of conformity - CP-E 24/5.0; CP-E 48/5.0; CP-E24/10.0; CP-E 12/10.0; CP-E 48/10.0 and CP-E 24/20.0 Power supply units
UL Certificate
UL Certificate (UL 508) - CP-C, CP-D, CP-E, CP-S, and CP-T range power supply units, CP-ASI power supply units and DC/DC converter, CP-B range buffer modules and extension module, CC-E and CC-U range analog signal converters
UR Certificate
UR Certificate (UL 60950) - CP-C, CP-D, CP-E, CP-S, CP-T range power supply units, CP-A range accessories, and CP-ASI power supply units and DC/DC converter | UR Certificate (ANSI/ISA-12.12) - CP-D, CP-T range power supply units
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
E-Number (Finland)
2712065
E-Number (Norway)
6609451
E-Number (Sweden)
5248135
The CP-E 24/10.0 uses a wide input range and auto-select capability, which translates to a simpler global installation and fewer field modifications for different regional power grids, reducing commissioning time and risk. This 240 W switch-mode power supply delivers 24 VDC at 10 A, ensuring reliable regulator performance for PLCs and drives, improving uptime and reducing voltage drop under peak loads in automation panels. The adjustable output from 22.5 to 28.5 V DC lets you tailor the supply to mixed loads and legacy equipment, avoiding overvoltage and wasted energy. Up to three units can be connected in parallel, enabling scalable headroom without complex external redundancy, which cuts total cost of ownership and simplifies maintenance. DIN rail mounting on TH35 profiles and IP20 protection streamline panel installation, helping you meet tight installation schedules. Compliance to CE, UL 508 and related standards minimizes risk during audits and supports safe factory automation.
Get a Quick Quote for a ABB 1SVR427035R0000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR427035R0000?
Enquire Now
FAQs
The CP-E 24/10.0 supports 90-132 VAC, 180-264 VAC, and 210-375 V DC with auto-select to 115/230 VAC, ensuring seamless operation across regional grids. This reduces wiring variations and simplifies site deployment, especially for multi-site installations.
Yes, up to three CP-E 24/10.0 units can be connected in parallel to increase available current while maintaining the same 24 V DC output. This approach provides scalable headroom for growing control loads without introducing external redundancy hardware.
The unit delivers 24 V DC at up to 10 A, equating to 240 W of continuous output. The output voltage is adjustable from 22.5 to 28.5 V DC, allowing precise tailoring to mixed loads and protecting sensitive automation modules from overvoltage scenarios.
Designed for DIN rail installation (TH35-15 or TH35-7.5), the CP-E 24/10.0 sits in standard electrical cabinets with IP20 protection. This combination simplifies installation, improves wiring organization, and enhances overall panel safety in crowded industrial environments.
The CP-E 24/10.0 carries CE, UL 508-based cUL/cUR approvals and UL/CSA compliance, with DoC and EMC considerations. These certifications support regulatory compliance, facilitate audits, and ensure safe operation in industrial automation and control panel applications.
