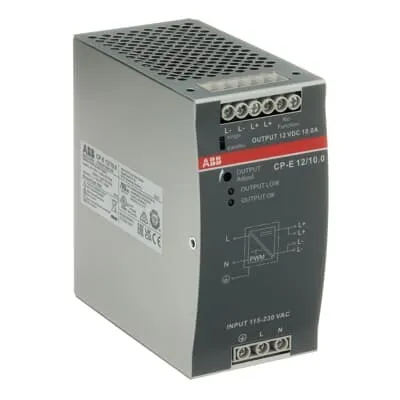

ABB 1SVR427035R1000 Power Supply - UL 508
Part Number: 1SVR427035R1000
Quick Summary
ABB 1SVR427035R1000 Power Supply delivers 12 V DC at 10 A for automation panels. Engineers wrestle with fluctuating mains and limited cabinet space, and this unit auto-selects 115/230 VAC while allowing multiple units to be paralleled. It carries UL 508 and cUL listings, CE and UKCA declarations, and IP20 housing for safe, rugged panel mounting. For OEMs and integrators, this DC power supply reduces spare parts and simplifies compliance, while offering reliability and scalability for industrial control applications. The compact form factor minimizes panel depth, supports easier thermal management, and enhances uptime in demanding environments. It’s a practical choice for motor drives, PLCs, and field devices that require dependable DC power.
Product Information
Extended Description
1SVR427035R1000 ABB: The CP-E 12/10.0 is a power supply from the CP-E range. The primary switch mode power supply offers a wide range input of 90-132 V AC, 180-264 V AC and 210-375 V DC, rated input voltage is 115 or 230 V AC (auto select). The rated output power is 120 W, rated output current is 10 A at an output voltage of 12 V DC. The output voltage is adjustable within a range of 11.4 to 14.5 V DC. The power supply provides an U/I output characteristic. In order to increase capacity, up to 3 units can be connected in parallel. A redundancy unit is available as accessory.
Minimum Order Quantity
1 piece
Customs Tariff Number
85044095
Data Sheet, Technical Information
Data sheet - CP-E 12/10.0 Primary switch mode power supply
Instructions and Manuals
Instruction Sheet / Manual - CP-E 12/10.0 and CP-E 24/5.0
Product Net Width
63.2 mm
Product Net Height
123.6 mm
Product Net Depth / Length
123.6 mm
Product Net Weight
0.888 kg
Package Level 1 Width
162 mm
Package Level 1 Depth / Length
160 mm
Package Level 1 Height
85 mm
Package Level 1 Gross Weight
0.999 kg
Package Level 1 EAN
4016779669719
Package Level 1 Units
box 1 piece
Function
Switch mode power supply
Number of Phases
1
Rated Input Voltage (UIN)
115 / 230 V AC
Input Voltage (Uin)
90 ... 132 V AC | 180 ... 264 V AC | 210 ... 375 V DC
Rated Frequency (f)
50 Hz
Rated Frequency Limits
47 ... 63 Hz
Characteristic of Output
U/I characteristic curve
Rated Output Power
120 W
Output Power
120 W
Rated Output Voltage
12 V DC
Output Voltage (Uout)
12 V DC
Rated Output Current
10 A
Output Current
10 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit / Output Circuit 4 kV | Input Circuit / PE 2.5 kV | Input Circuit / Relay Contact 4 kV | Output Circuit / PE 0.5 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 300 V | Input Circuit / PE 300 V | Input Circuit / Relay Contact 300 V | Output Circuit / PE 50 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.2 ... 4 mm² | Rigid 0.2 ... 6 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 0.2 ... 4 mm² | Rigid 0.2 ... 6 mm²
Tightening Torque
Input Circuit 1 N·m | Output Circuit 0.62 N·m
Wire Stripping Length
Input Circuit 8 mm | Output Circuit 8 mm
Recommended Screw Driver
PH2
Minimum Mounting Distance
Electrical Conductive Board, Horizontal 25 mm | Electrical Conductive Board, Vertical 25 mm | Other Device Same Type, Horizontal 25 mm | Other Device Same Type, Vertical 25 mm
Mounting Position
1
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
ANSI/ISA-12.12 | CAN/CSA C22.2 No.107.1 | CAN/CSA C22.2 No.213 | CAN/CSA C22.2 No.60950 | IEC/EN 63000 | IEC 60950-1 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | UL 508 | UL 60950
Connecting Capacity Input Circuit UL/CSA
Rigid 24-10 AWG
Connecting Capacity Output Circuit UL/CSA
Rigid 24-10 AWG
Tightening Torque UL/CSA
Input Circuit 9 in·lb | Output Circuit 5.5 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 15 kV | Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3
Level 3 10 V/m
Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4
Level 4 Power Supply Port Signal 4 kV
Surge Immunity acc. to IEC 61000-4-5
Level 3 Line-to-Line 2 kV | Level 4 Line-to-Ground 4 kV
Conducted Disturbances Immunity acc. to IEC 61000-4-6
Level 3 10 V
Electromagnetic Compatibility (EMC)
Immunity - Class B | Emission - Class B
Ambient Air Temperature
Operation -35 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
5000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
RoHS Declaration of conformity for Power Supplies
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Power Supplies
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
cUL Certificate
cUL508_E174460
cUR Certificate
cUR60950_E196145 | cUR_ANSI_E317914
Declaration of Conformity - CE
EU Declaration of conformity - CP-E 24/5.0; CP-E 48/5.0; CP-E24/10.0; CP-E 12/10.0; CP-E 48/10.0 and CP-E 24/20.0 Power supply units
Declaration of Conformity - UKCA
UK Declaration of conformity - CP-E 24/5.0; CP-E 48/5.0; CP-E24/10.0; CP-E 12/10.0; CP-E 48/10.0 and CP-E 24/20.0 Power supply units
UL Certificate
UL Certificate (UL 508) - CP-C, CP-D, CP-E, CP-S, and CP-T range power supply units, CP-ASI power supply units and DC/DC converter, CP-B range buffer modules and extension module, CC-E and CC-U range analog signal converters
UR Certificate
UR Certificate (UL 60950) - CP-C, CP-D, CP-E, CP-S, CP-T range power supply units, CP-A range accessories, and CP-ASI power supply units and DC/DC converter | UR Certificate (ANSI/ISA-12.12) - CP-D, CP-T range power supply units
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
E-Number (Finland)
2712066
E-Number (Norway)
6609449
Wide input range and auto-select simplify installation and wiring while reducing design constraints. This delivers faster commissioning and fewer field errors, improving first-pass acceptance. In automation cabinets, the ability to tolerate 90-132 VAC, 180-264 VAC, or 210-375 V DC translates to reliable startup across diverse regional power standards. The 120 W output at 12 V DC provides ample headroom for PLCs, relays, sensors, and drives, stabilizing DC power and minimizing voltage sag during transient loads. Practically, machine builders can rely on a single supply to power core control electronics, reducing cable runs and spare parts, which lowers total cost of ownership. The adjustable output range of 11.4 to 14.5 V DC accommodates varying load conditions and load-sharing needs, enabling tighter regulation without hardware changes. This is especially valuable for sensitive sensors and actuators that require precise voltage control. Parallel operation of up to three units enables scalable capacity for growing lines or concurrent systems, while a redundancy accessory provides fail-safe power for mission-critical loads. This capability reduces downtime and enhances line productivity in manufacturing and packaging lines. Rugged mounting and protection features—DIN rail compatibility (TH35-15 or TH35-7.5) and IP20 protection on housing and terminals—simplify installation in electrical cabinets and harsh environments. Together with EMC compliance and wide operating ranges, these traits boost compliance, reduce maintenance cycles, and support longer service life in industrial settings.
Get a Quick Quote for a ABB 1SVR427035R1000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR427035R1000?
Enquire Now
FAQs
Install the unit on a TH35 DIN rail (TH35-15 or TH35-7.5) in a suitable electrical cabinet. Use flexible ferrule cables (0.2–4 mm²) or rigid 0.2–6 mm² conductors for input and output, tighten input to 1 N·m and output to 0.62 N·m, and ensure an 8 mm wire-stripping length. Connect 115/230 VAC input per labeling, and wire 12 V DC output to the load with appropriate protection and fusing as required.
The unit offers a 12 V DC output at up to 10 A (120 W) with an adjustable output from 11.4 to 14.5 V. Input accepts 90–132 VAC, 180–264 VAC, or 210–375 V DC with auto-select for 115/230 VAC. It has an output/input isolation of 4 kV and 0.5 kV to PE, IP20 protection, and operates from -35 to +70 °C with up to 5000 m altitude.
Yes. The 1SVR427035R1000 carries UL 508/cUL and CE/UKCA conformity declarations, with RoHS, REACH, and WEEE compliance. It’s designed for industrial control panels, meeting EMC Class B immunity and emission requirements, ensuring safe operation in regulated facilities and helping simplify customer audits.
Yes. Up to three units can be connected in parallel to increase total available power. A redundancy accessory is available to protect critical loads, enabling fail-safe operation and reducing the risk of unexpected downtime on production lines or automation systems.
Benefits include fewer spare parts due to a single, scalable DC power solution and faster commissioning from the wide input range. Reliability in demanding environments reduces downtime, while modular paralleling and available redundancy minimize maintenance needs and extend equipment lifetime, delivering improved total cost of ownership over time.
