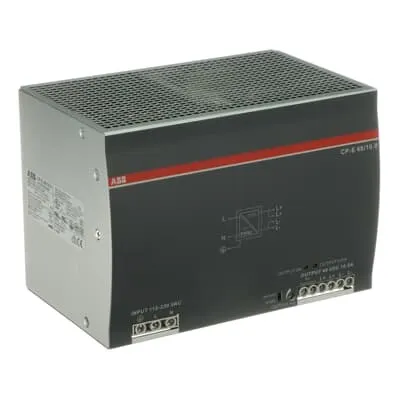

ABB 1SVR427035R2000 Power Supply - UL 508 Certified
Part Number: 1SVR427035R2000
Quick Summary
ABB 1SVR427035R2000 Power Supply delivers 480 W of reliable 48 V DC at up to 10 A for industrial automation and control panels. In the field, wide input tolerance and fluctuating mains can disrupt uptime and drive costly maintenance. The unit carries CE and UKCA declarations, UL 508 certification, and RoHS/REACH compliance to streamline panel approvals and regulatory audits. Compact DIN-rail form and a U/I output characteristic support stable rail voltage across varying loads. With parallel operation for up to three units, you can scale capacity quickly while maintaining protection and consistency. This translates into reduced spare parts, faster commissioning, and robust performance in harsh environments.
Product Information
Extended Description
1SVR427035R2000 ABB: The CP-E 48/10.0 is a power supply from the CP-E range. The primary switch mode power supply offers a wide range input of 90-264 V AC and 120-375 V DC, rated input voltage is 115-230 V AC. The rated output power is 480 W, rated output current is 10 A at an output voltage of 48 V DC. The output voltage is adjustable within a range of 47 to 56 V DC. The power supply provides an U/I output characteristic. In order to increase capacity, up to 3 units can be connected in parallel.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
160 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Country of Origin
India (IN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
INABB003EXPU
Warranty Return
Product under warranty must be returned
Minimum Order Quantity
1 piece
Customs Tariff Number
85044095
Data Sheet, Technical Information
Data sheet - CP-E 48/10.0 Primary switch mode power supply
Instructions and Manuals
Instruction Sheet / Manual - CP-E 24/20.0 and CP-E 48/10.0
Product Net Width
175 mm
Product Net Height
123.6 mm
Product Net Depth / Length
123.6 mm
Product Net Weight
1.839 kg
Package Level 1 Width
173 mm
Package Level 1 Depth / Length
225 mm
Package Level 1 Height
188 mm
Package Level 1 Gross Weight
2.254 kg
Package Level 1 EAN
4016779669733
Package Level 1 Units
box 1 piece
Function
Switch mode power supply
Number of Phases
1
Rated Input Voltage (UIN)
115 / 230 V AC
Input Voltage (Uin)
90 ... 264 V AC | 120 ... 375 V DC
Rated Frequency (f)
50 Hz
Rated Frequency Limits
47 ... 63 Hz
Characteristic of Output
U/I characteristic curve
Rated Output Power
480 W
Output Power
480 W
Rated Output Voltage
48 V DC
Output Voltage (Uout)
48 V DC
Rated Output Current
10 A
Output Current
10 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit / Output Circuit 4 kV | Input Circuit / PE 2.5 kV | Input Circuit / Relay Contact 4 kV | Output Circuit / PE 0.5 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 300 V | Input Circuit / PE 300 V | Input Circuit / Relay Contact 300 V | Output Circuit / PE 60 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.2 ... 4 mm² | Rigid 0.2 ... 6 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 0.2 ... 4 mm² | Rigid 0.2 ... 6 mm²
Tightening Torque
Input Circuit 1 N·m | Output Circuit 0.62 N·m
Wire Stripping Length
Input Circuit 8 mm | Output Circuit 8 mm
Recommended Screw Driver
PH2
Minimum Mounting Distance
Electrical Conductive Board, Horizontal 25 mm | Electrical Conductive Board, Vertical 25 mm | Other Device Same Type, Horizontal 25 mm | Other Device Same Type, Vertical 25 mm
Mounting Position
1
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
ANSI/ISA-12.12 | CAN/CSA C22.2 No.107.1 | CAN/CSA C22.2 No.213 | CAN/CSA C22.2 No.60950 | IEC/EN 63000 | IEC 60950-1 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | UL 508 | UL 60950
Connecting Capacity Input Circuit UL/CSA
Rigid 24-10 AWG
Connecting Capacity Output Circuit UL/CSA
Rigid 24-10 AWG
Tightening Torque UL/CSA
Input Circuit 9 in·lb | Output Circuit 5.5 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 15 kV | Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3
Level 3 10 V/m
Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4
Level 4 Power Supply Port Signal 4 kV
Surge Immunity acc. to IEC 61000-4-5
Level 3 Line-to-Line 2 kV | Level 4 Line-to-Ground 4 kV
Conducted Disturbances Immunity acc. to IEC 61000-4-6
Level 3 10 V
Electromagnetic Compatibility (EMC)
Immunity - Class B | Emission - Class B
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
5000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
RoHS Declaration of conformity for Power Supplies
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Power Supplies
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CCC Certificate
CCC_2009010907324502
cUL Certificate
cUL508_E174460
cUR Certificate
cUR60950_E196145 | cUR_ANSI_E317914
Declaration of Conformity - CE
EU Declaration of conformity - CP-E 24/5.0; CP-E 48/5.0; CP-E24/10.0; CP-E 12/10.0; CP-E 48/10.0 and CP-E 24/20.0 Power supply units
Declaration of Conformity - UKCA
UK Declaration of conformity - CP-E 24/5.0; CP-E 48/5.0; CP-E24/10.0; CP-E 12/10.0; CP-E 48/10.0 and CP-E 24/20.0 Power supply units
UL Certificate
UL Certificate (UL 508) - CP-C, CP-D, CP-E, CP-S, and CP-T range power supply units, CP-ASI power supply units and DC/DC converter, CP-B range buffer modules and extension module, CC-E and CC-U range analog signal converters
UR Certificate
UR Certificate (UL 60950) - CP-C, CP-D, CP-E, CP-S, CP-T range power supply units, CP-A range accessories, and CP-ASI power supply units and DC/DC converter | UR Certificate (ANSI/ISA-12.12) - CP-D, CP-T range power supply units
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
E-Number (Finland)
2712067
E-Number (Norway)
6609454
Feature Wide input range of 90-264 V AC and 120-375 V DC with rated input of 115-230 V AC. Business Impact Reduces variant spares and minimizes downtime across global installations. Application Automation equipment and control panels benefit from universal mains compatibility. Feature Output power of 480 W with 48 V DC at 10 A. Business Impact Enables a single supply to support PLCs, drives, and sensors, simplifying wiring and inventory. Application Control cabinets in factory environments. Feature Output voltage adjustable from 47 to 56 V DC. Business Impact Lets you tailor the rail to different components and load conditions, reducing overspec or underspec events. Application Versatile rail provisioning for mixed actuator ecosystems. Feature Up to three units in parallel. Business Impact Scales capacity for growing lines and adds redundancy without extra controllers. Application High-availability automation lines. Feature DIN rail mounting with TH35-15 or TH35-7.5 compatibility and IP20 protection. Business Impact Simplified installation and cabinet integrity with proven mounting standards. Application Quick deployment in compact panels. Feature Wide certifications including CE, UKCA, UL 508, UL/CSA, cUL, UR, RoHS, REACH, and WEEE B2B readiness. Business Impact Accelerates compliance cycles and reduces auditing risk. Application Supports panel approvals across regions. Feature Harsh-environment capability: -40 to +70 °C and up to 5000 m altitude. Business Impact Maintains performance in rugged locations and high-altitude manufacturing sites. Application Industrial environments with thermal and altitude extremes. Feature Compact dimensions (175 x 123.6 x 123.6 mm) and a weight of 1.839 kg. Business Impact Enables dense rack layouts and easy handling in field installations. Application Suitable for space-constrained control cabinets. Feature Parallelled and scalable DC power distribution with robust U/I characteristics. Business Impact Improves reliability and predictable performance under variable loads. Application Suitable for power-hungry automation tasks in automation and process control.
Get a Quick Quote for a ABB 1SVR427035R2000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR427035R2000?
Enquire Now
FAQs
The CP-E 48/10.0 is designed for DIN rail mounting on TH35-15 or TH35-7.5 rails. It fits standard control cabinets with 175 x 123.6 x 123.6 mm footprint and weighs 1.839 kg. Use the recommended torque values (Input 1 N·m; Output 0.62 N·m) and 8 mm wire stripping length for reliable connections. This streamlines installation and minimizes cabinet rearrangements during upgrades.
It delivers a stable 48 V DC output at up to 10 A with a 480 W rating and an adjustable 47-56 V output range, ensuring consistent voltage under varying loads. Its U/I characteristic helps protect downstream devices, while the wide input tolerance supports both global mains and DC bus sources without additional adapters.
Yes. The CP-E 48/10.0 supports paralleling up to three units, enabling scalable capacity for high-demand automation lines. This simplifies expansion, reduces the need for different power supplies, and helps maintain uniform rail voltage across modules in distributed control cabinets.
The unit carries CE and UKCA declarations, UL 508, UL/CSA, cUL, and UR certifications, along with RoHS, REACH, and WEEE compliance. These certifications streamline panel approvals, facilitate cross-region deployments, and reduce regulatory risk during audits and customer qualifications.
Operating temperature ranges from -40 to +70 °C and supports up to 5000 m altitude, suitable for harsh environments. It is IP20-rated for housing and terminals, with DIN rail mounting capability, and compatible with 0.2-6 mm² conductors. These specs ensure reliable operation in demanding industrial settings.
