ABB 1SVR427041R0000 Power Supply - UL 508
Part Number: 1SVR427041R0000
Quick Summary
ABB 1SVR427041R0000 power supply provides 24 V DC output for control panels and automation cabinets. It tackles the common challenge of fluctuating mains and unexpected downtime by delivering a stable 24 V output under harsh industrial conditions. The device carries safety and performance certifications including UL 508, cUL, CE and UKCA declarations, and robust EMC resilience to IEC 61000-6-2/3, helping you meet global electrical and safety standards. Designed for DIN rail mounting in compact cabinets, it fits a mere 18 mm width while delivering 10 W of power. With RoHS and WEEE compliance, this unit supports sustainable, cost-efficient manufacturing and easier spare-part management.
Product Information
Extended Description

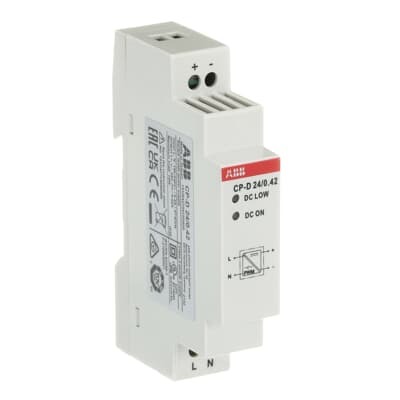

1SVR427041R0000 ABB: The CP-D 24/0.42 is a power supply from the CP-D range. The primary switch mode power supply offers a wide range input of 90-264 V AC and 120-375 V DC, rated input voltage is 100-240 V AC. The rated output power is 10 W, rated output current is 0.42 A at an output voltage of 24 V DC. The power supply provides a U/I output characteristic.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Country of Origin
China (CN)
Lead Time
55 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Inactive
Quote Only
No
Lead Time
160 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Minimum Order Quantity
1 piece
Customs Tariff Number
85044095
Data Sheet, Technical Information
Data sheet - CP-D 24/0.42 Primary switch mode power supply
Instructions and Manuals
Instruction Sheet / Manual - CP-D 12/0.83 and CP-D 24/0.42
Product Net Width
18 mm
Product Net Height
91 mm
Product Net Depth / Length
57.5 mm
Product Net Weight
0.066 kg
Package Level 1 Width
91 mm
Package Level 1 Depth / Length
134 mm
Package Level 1 Height
34 mm
Package Level 1 Gross Weight
0.111 kg
Package Level 1 EAN
4016779661164
Package Level 1 Units
box 1 piece
Function
Switch mode power supply
Number of Phases
1
Rated Input Voltage (UIN)
100 ... 240 V AC
Input Voltage (Uin)
90 ... 264 V AC | 120 ... 375 V DC
Rated Frequency (f)
50 / 60 Hz
Rated Frequency Limits
47 ... 63 Hz
Characteristic of Output
Hiccup-mode
Rated Output Power
10 W
Output Power
10 W
Rated Output Voltage
24 V DC
Output Voltage (Uout)
24 V DC
Rated Output Current
0.42 A
Output Current
0.42 A
Output Current Maximum (Iout)
0.42 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit / Output Circuit 3 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 300 V | Input Circuit / PE 300 V | Output Circuit / PE 50 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.2 ... 1.5 mm² | Rigid 0.2 ... 2.5 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 0.2 .... 2.5 mm² | Rigid 0.2 ... 2.5 mm²
Tightening Torque
Input Circuit 0.6 N·m | Output Circuit 0.6 N·m
Wire Stripping Length
Input Circuit 4 mm | Output Circuit 4 mm
Recommended Screw Driver
PH1
Minimum Mounting Distance
Electrical Conductive Board, Horizontal 25 mm | Electrical Conductive Board, Vertical 25 mm | Other Device Same Type, Horizontal 25 mm | Other Device Same Type, Vertical 25 mm
Mounting Position
1
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.107.1 | CAN/CSA C22.2 No.223 | CAN/CSA C22.2 No.60950 | IEC/EN 63000 | IEC 60950-1 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | UL 1310 | UL 508 | UL 60950
Connecting Capacity Input Circuit UL/CSA
Rigid 24-12 AWG
Connecting Capacity Output Circuit UL/CSA
Rigid 24-12 AWG
Tightening Torque UL/CSA
Input Circuit 5 in·lb | Output Circuit 5 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 8 kV | Level 4 Contact Discharge 4 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3
Level 3 10 V/m
Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4
Level 4 Power Supply Port Signal 4 kV
Surge Immunity acc. to IEC 61000-4-5
Level 3 Line-to-Line 2 kV
Conducted Disturbances Immunity acc. to IEC 61000-4-6
Level 3 10 V
Electromagnetic Compatibility (EMC)
Emission - Class B | Immunity - Class B
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
4850 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
RoHS Declaration of conformity for Power Supplies
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Power Supplies
WEEE B2C / B2B
Business To Consumer
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
cUL Certificate
cUL508_E174460
cUR Certificate
cUR60950_E196145 | cUR1310_E313203
Declaration of Conformity - CE
EU Declaration of conformity - CP-D 24/0.42; CP-D 12/0.83; CP-D 24/1.3 and CP-D 24/1.3; CP-D 12/2.1; CP-D 24/2.5; CP-D 24/2.5; BJE_CP-D_24/2.5; CP-D 24/2.5 Power supply units
Declaration of Conformity - UKCA
UK Declaration of conformity - CP-D 24/0.42; CP-D 12/0.83; CP-D 24/1.3 and CP-D 24/1.3; CP-D 12/2.1; CP-D 24/2.5; CP-D 24/2.5; BJE_CP-D_24/2.5; CP-D 24/2.5 Power supply units
UL Certificate
UL Certificate (UL 508) - CP-C, CP-D, CP-E, CP-S, and CP-T range power supply units, CP-ASI power supply units and DC/DC converter, CP-B range buffer modules and extension module, CC-E and CC-U range analog signal converters
UR Certificate
UR Certificate (UL 60950) - CP-C, CP-D, CP-E, CP-S, CP-T range power supply units, CP-A range accessories, and CP-ASI power supply units and DC/DC converter | UR Certificate (UL 1310) - CP-D, CP-E range power supply units
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
E-Number (Finland)
2712078
E-Number (Norway)
6609492
E-Number (Sweden)
5218726
Wide input range and universal compatibility reduce spare parts and simplify global deployment. Feature → Business Impact → Application: The CP-D 24/0.42 accepts 100-240 V AC or 120-375 V DC input, delivering a consistent 24 V DC at 0.42 A (10 W). This means fewer transformers and quicker panel commissioning in regional builds. Application: automation cabinets and machine controllers where supply variability previously caused downtime. The compact 18 mm width and DIN rail mounting TH35-15/TH35-7.5 save panel space and streamline installation in tight enclosures. Feature → Business Impact → Application: 18 mm footprint enables denser layouts and faster wiring, ideal for compact control panels in packaging and robotics lines. The unit’s IP20 housing and hiccup-mode protection provide load-sequence safety and fault tolerance, reducing maintenance costs and extending equipment life in harsh environments. Application: harsh factory floors and multi-axis systems requiring reliable power for PLCs and I/O.
Get a Quick Quote for a ABB 1SVR427041R0000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR427041R0000?
Enquire Now
FAQs
The unit is designed for DIN rail mounting on TH35-15 or TH35-7.5 rails, with a compact 18 mm width and a 91 mm height profile. This enables high-density installations in control cabinets while maintaining easy access for wiring and maintenance. The IP20 protection class supports operation in standard factory environments, reducing mounting clearance concerns.
Input ranges include 100-240 V AC (with 90-264 V AC tolerance) and 120-375 V DC, while the rated output is 24 V DC at 0.42 A (10 W). This full-performance envelope supports PLCs, relays, and sensors with minimal derating. The hiccup-mode protection adds resilience against short-circuit faults without sudden shutdowns, aiding uptime.
Yes. It carries UL 508 and cUL certifications, plus CE and UKCA declarations, ensuring compliance across North American and European markets. The unit also meets IEC/EN 61000-6-2/3 EMC requirements and RoHS/WEEE directives, making it a safe, regulatory-ready choice for global machine builders and panel shops.
Operating temperature ranges from -40 to +70 °C with storage up to +85 °C, and a maximum altitude of 4850 m. It has IP20-rated housing and IP20-rated terminals, supporting safe operation in typical industrial environments. These specs help maintain performance and reliability in challenging production lines and outdoor enclosures without extra enclosure costs.
The combination of wide input tolerance, reliable 24 V output, and compact DIN-rail form factor reduces part counts and simplifies installation, lowering upfront and ongoing costs. Certifications ease regulatory approvals, while the robust protection features minimize downtime and maintenance needs, delivering faster commissioning and predictable long-term performance in automation cabinets.
