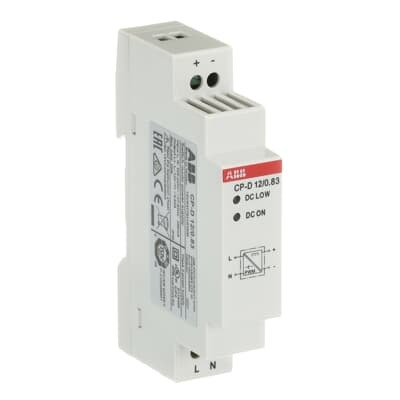

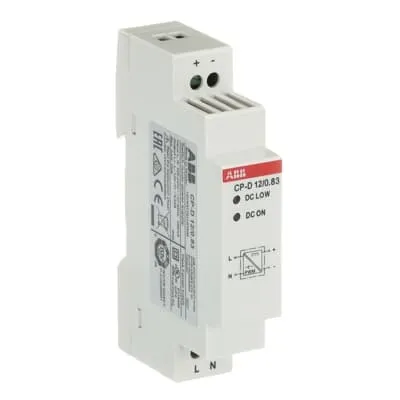

ABB 1SVR427041R1000 Power Supply - UL 508
Part Number: 1SVR427041R1000
Quick Summary
Power supply CP-D 12/0.83 from ABB delivers a stable 12 VDC output for compact automation panels. In demanding environments, engineers struggle with narrow input ranges and space constraints that complicate reliable power delivery. This unit carries CE declarations and UL/cUL/UR certifications, plus IP20 protection, ensuring safe, compliant operation in control cabinets. With its DIN-rail footprint and wide input tolerance, it reduces wiring, speeds installation, and supports scalable automation projects.
Product Information
Extended Description
1SVR427041R1000 ABB: The CP-D 12/0.83 is a power supply from the CP-D range. The primary switch mode power supply offers a wide range input of 90-264 V AC and 120-375 V DC, rated input voltage is 100-240 V AC. The rated output power is 10 W, rated output current is 0.83 A at an output voltage of 12 V DC. The power supply provides a U/I output characteristic.
Minimum Order Quantity
1 piece
Customs Tariff Number
85044095
Data Sheet, Technical Information
Data sheet - CP-D 12/0.83 Primary switch mode power supply
Instructions and Manuals
Instruction Sheet / Manual - CP-D 12/0.83 and CP-D 24/0.42
Product Net Width
18 mm
Product Net Height
91 mm
Product Net Depth / Length
57.5 mm
Product Net Weight
0.066 kg
Package Level 1 Width
91 mm
Package Level 1 Depth / Length
134 mm
Package Level 1 Height
34 mm
Package Level 1 Gross Weight
0.111 kg
Package Level 1 EAN
4016779661201
Package Level 1 Units
box 1 piece
Function
Switch mode power supply
Number of Phases
1
Rated Input Voltage (UIN)
100 ... 240 V AC
Input Voltage (Uin)
90 ... 264 V AC | 120 ... 375 V DC
Rated Frequency (f)
50 / 60 Hz
Rated Frequency Limits
47 ... 63 Hz
Characteristic of Output
Hiccup-mode
Rated Output Power
10 W
Output Power
10 W
Rated Output Voltage
12 V DC
Output Voltage (Uout)
12 V DC
Rated Output Current
0.83 A
Output Current
0.83 A
Output Current Maximum (Iout)
0.83 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit / Output Circuit 3 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 300 V | Input Circuit / PE 300 V | Output Circuit / PE 50 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.2 ... 1.5 mm² | Rigid 0.2 ... 2.5 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 0.2 .... 2.5 mm² | Rigid 0.2 ... 2.5 mm²
Tightening Torque
Input Circuit 0.6 N·m | Output Circuit 0.6 N·m
Wire Stripping Length
Input Circuit 4 mm | Output Circuit 4 mm
Recommended Screw Driver
PH1
Minimum Mounting Distance
Electrical Conductive Board, Horizontal 25 mm | Electrical Conductive Board, Vertical 25 mm | Other Device Same Type, Horizontal 25 mm | Other Device Same Type, Vertical 25 mm
Mounting Position
1
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.107.1 | CAN/CSA C22.2 No.223 | CAN/CSA C22.2 No.60950 | IEC/EN 63000 | IEC 60950-1 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | UL 1310 | UL 508 | UL 60950
Connecting Capacity Input Circuit UL/CSA
Rigid 24-12 AWG
Connecting Capacity Output Circuit UL/CSA
Rigid 24-12 AWG
Tightening Torque UL/CSA
Input Circuit 5 in·lb | Output Circuit 5 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 8 kV | Level 4 Contact Discharge 4 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3
Level 3 10 V/m
Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4
Level 4 Power Supply Port Signal 4 kV
Surge Immunity acc. to IEC 61000-4-5
Level 3 Line-to-Line 2 kV
Conducted Disturbances Immunity acc. to IEC 61000-4-6
Level 3 10 V
Electromagnetic Compatibility (EMC)
Emission - Class B | Immunity - Class B
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
4850 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
RoHS Declaration of conformity for Power Supplies
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Power Supplies
WEEE B2C / B2B
Business To Consumer
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
cUL Certificate
cUL508_E174460
cUR Certificate
cUR60950_E196145 | cUR1310_E313203
Declaration of Conformity - CE
EU Declaration of conformity - CP-D 24/0.42; CP-D 12/0.83; CP-D 24/1.3 and CP-D 24/1.3; CP-D 12/2.1; CP-D 24/2.5; CP-D 24/2.5; BJE_CP-D_24/2.5; CP-D 24/2.5 Power supply units
Declaration of Conformity - UKCA
UK Declaration of conformity - CP-D 24/0.42; CP-D 12/0.83; CP-D 24/1.3 and CP-D 24/1.3; CP-D 12/2.1; CP-D 24/2.5; CP-D 24/2.5; BJE_CP-D_24/2.5; CP-D 24/2.5 Power supply units
UL Certificate
UL Certificate (UL 508) - CP-C, CP-D, CP-E, CP-S, and CP-T range power supply units, CP-ASI power supply units and DC/DC converter, CP-B range buffer modules and extension module, CC-E and CC-U range analog signal converters
UR Certificate
UR Certificate (UL 60950) - CP-C, CP-D, CP-E, CP-S, CP-T range power supply units, CP-A range accessories, and CP-ASI power supply units and DC/DC converter | UR Certificate (UL 1310) - CP-D, CP-E range power supply units
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
E-Number (Finland)
2712076
E-Number (Norway)
6609490
E-Number (Sweden)
5218727
Feature: Wide input range supports 90-264 V AC and 120-375 V DC, reducing the need for multiple supply variants. Business Impact: Simplifies global deployments and inventory management, lowering procurement complexity. Application: Ideal for worldwide automation panels where voltage rails vary. Feature: 12 V DC output at 0.83 A (10 W) provides sufficient headroom for PLCs, sensors, and small actuators. Business Impact: Improves system reliability and allows smaller cabinet footprints by eliminating oversized power units. Application: Control cabinets and compact automation enclosures. Feature: Hiccup-mode protection delivers fault-tolerant startup and safe shut-down during transients. Business Impact: Shields downstream devices from surges, reducing downtime and warranty costs. Application: Harsh factory floors with intermittent loads. Feature: Compact DIN-rail footprint (18 mm wide) and mounting on TH35-15 or TH35-7.5 rails. Business Impact: Saves panel space and simplifies installation, calibrations, and maintenance. Application: Space-constrained control panels and distributed I/O hardware. Feature: Wide operating temperature (-40 to +70 °C) and high altitude capability (up to 4850 m). Business Impact: Ensures consistent performance in factories, outdoors, or remote installations, lowering field service needs. Application: Industrial environments with temperature swings. Feature: Broad certification and compliance (CE, UL 508, UL/CSA, UR, RoHS, WEEE). Business Impact: Accelerates regulatory approvals and customer acceptance, reducing time-to-deploy. Application: Safety-critical automation systems and cross-border deployments.
Get a Quick Quote for a ABB 1SVR427041R1000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR427041R1000?
Enquire Now
FAQs
Install the CP-D 12/0.83 on a TH35-compatible DIN rail (TH35-15 or TH35-7.5) following the included manual. Use the recommended PH1 screwdriver, tighten input and output terminals to 0.6 N·m (UL/CSA ratings specify similar torque), and ensure flexible or rigid conductors meet 0.2–1.5 mm² or 0.2–2.5 mm² respectively. Keep a minimum 25 mm mounting distance from other devices to optimize heat dissipation.
Verify input voltage range of 100-240 V AC or 90-264 V AC plus 120-375 V DC, rated input frequency of 50/60 Hz, and a 12 V DC output with 0.83 A current (10 W). The unit uses hiccup-mode protection and supports IP20 protection, ensuring safe operation with CAN/CSA and UL-listed environments.
Yes. The CP-D 12/0.83 carries CE declarations and UL/CSA/UR certifications, including UL 508 compatibility. It is designed for industrial use with IP20 protection and wide operating temperatures, making it suitable for control panels, automation cabinets, and other safety-critical applications.
It operates from -40 to +70 °C and supports altitudes up to 4850 m, reducing field failures due to environmental stress. This robustness, combined with hiccup-mode protection and compact DIN-rail mounting, minimizes maintenance needs and ensures consistent performance across challenging factory floors.
The wide input tolerance minimizes spare part needs, while its compact form factor saves panel space and simplifies wiring, lowering installation time. Core benefits include reduced downtime from protective hiccup-mode behavior, compliance with multiple standards, and long-term reliability that lowers maintenance and replacement costs.
