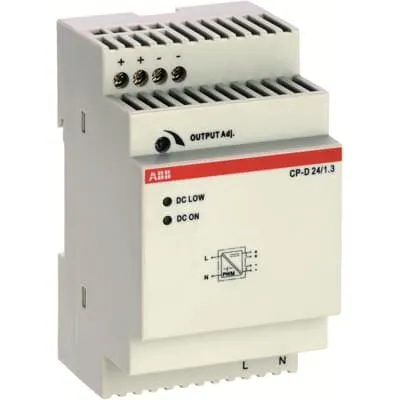

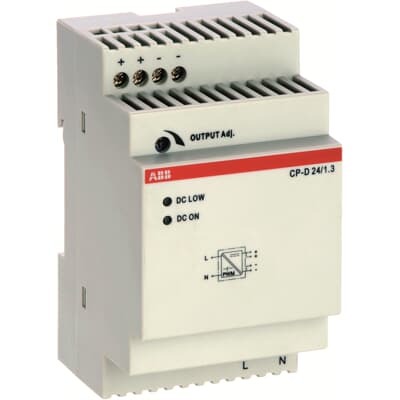

ABB CP-D 24/1.3 Power Supply - CE/UL Certified
Part Number: 1SVR427043R0100
Quick Summary
The ABB CP-D 24/1.3 power supply is a compact, 24 V DC, 1.3 A source designed for industrial control and automation panels. Operators often fight with power dips, wide input ranges, and maintenance-heavy downstream devices; this unit addresses those challenges with a robust 90-264 VAC / 120-375 V DC input window and a reliable 24 V DC output. This device carries UL 508, cUL, CE, and UKCA declarations, with strong EMC performance to Class B standards, helping you meet regulatory requirements. By simplifying procurement with a single, DIN-rail ready module, you gain predictable performance, reduced spare parts, and improved uptime, while maintaining compliance across global sites. It’s a practical choice for control cabinets, machine builders, and panel builders seeking dependable, standards-driven power for automation systems.
Product Information
Extended Description
1SVR427043R0100 ABB: The CP-D 24/1.3 is a power supply from the CP-D range. The primary switch mode power supply offers a wide range input of 90-264 V AC and 120-375 V DC, rated input voltage is 100-240 V AC. The rated output power is 30 W, rated output current is 1.3 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 24 to 28 V DC. The power supply provides a U/I output characteristic.
Minimum Order Quantity
1 piece
Customs Tariff Number
85044095
Data Sheet, Technical Information
Data sheet - CP-D 24/1.3 Primary switch mode power supply
Instructions and Manuals
Instruction Sheet / Manual - CP-D 12/2.1 and CP-D 24/1.3
Product Net Width
53 mm
Product Net Height
91 mm
Product Net Depth / Length
57.5 mm
Product Net Weight
0.196 kg
Package Level 1 Width
91 mm
Package Level 1 Depth / Length
134 mm
Package Level 1 Height
69 mm
Package Level 1 Gross Weight
0.249 kg
Package Level 1 EAN
4016779661171
Package Level 1 Units
box 1 piece
Function
Switch mode power supply
Number of Phases
1
Rated Input Voltage (UIN)
100 ... 240 V AC
Input Voltage (Uin)
90 ... 264 V AC | 120 ... 375 V DC
Rated Frequency (f)
50 / 60 Hz
Rated Frequency Limits
47 ... 63 Hz
Characteristic of Output
U/I characteristic curve
Rated Output Power
30 W
Output Power
30 W
Rated Output Voltage
24 V DC
Output Voltage (Uout)
24 V DC
Rated Output Current
1.3 A
Output Current
1.3 A
Output Current Maximum (Iout)
1.3 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit / Output Circuit 3 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 300 V | Input Circuit / PE 300 V | Output Circuit / PE 50 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.2 ... 2.5 mm² | Rigid 0.2 ... 2.5 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 0.2 .... 2.5 mm² | Rigid 0.2 ... 2.5 mm²
Tightening Torque
Input Circuit 0.7 N·m | Output Circuit 0.7 N·m
Wire Stripping Length
Input Circuit 7 mm | Output Circuit 7 mm
Recommended Screw Driver
PH1
Minimum Mounting Distance
Electrical Conductive Board, Horizontal 25 mm | Electrical Conductive Board, Vertical 25 mm | Other Device Same Type, Horizontal 25 mm | Other Device Same Type, Vertical 25 mm
Mounting Position
1
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.107.1 | CAN/CSA C22.2 No.223 | CAN/CSA C22.2 No.60950 | IEC/EN 63000 | IEC 60950-1 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | UL 1310 | UL 508 | UL 60950
Connecting Capacity Input Circuit UL/CSA
Rigid 24-12 AWG
Connecting Capacity Output Circuit UL/CSA
Rigid 24-12 AWG
Tightening Torque UL/CSA
Input Circuit 6 in·lb | Output Circuit 6 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 15 kV | Level 4 Contact Discharge 4 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3
Level 3 10 V/m
Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4
Level 4 Power Supply Port Signal 4 kV
Surge Immunity acc. to IEC 61000-4-5
Level 3 Line-to-Line 2 kV
Conducted Disturbances Immunity acc. to IEC 61000-4-6
Level 3 10 V
Electromagnetic Compatibility (EMC)
Emission - Class B | Immunity - Class B
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
4850 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
RoHS Declaration of conformity for Power Supplies
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Power Supplies
WEEE B2C / B2B
Business To Consumer
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
cUL Certificate
cUL508_E174460
cUR Certificate
cUR60950_E196145 | cUR1310_E313203
Declaration of Conformity - CE
EU Declaration of conformity - CP-D 24/0.42; CP-D 12/0.83; CP-D 24/1.3 and CP-D 24/1.3; CP-D 12/2.1; CP-D 24/2.5; CP-D 24/2.5; BJE_CP-D_24/2.5; CP-D 24/2.5 Power supply units
Declaration of Conformity - UKCA
UK Declaration of conformity - CP-D 24/0.42; CP-D 12/0.83; CP-D 24/1.3 and CP-D 24/1.3; CP-D 12/2.1; CP-D 24/2.5; CP-D 24/2.5; BJE_CP-D_24/2.5; CP-D 24/2.5 Power supply units
UL Certificate
UL Certificate (UL 508) - CP-C, CP-D, CP-E, CP-S, and CP-T range power supply units, CP-ASI power supply units and DC/DC converter, CP-B range buffer modules and extension module, CC-E and CC-U range analog signal converters
UR Certificate
UR Certificate (UL 60950) - CP-C, CP-D, CP-E, CP-S, CP-T range power supply units, CP-A range accessories, and CP-ASI power supply units and DC/DC converter | UR Certificate (UL 1310) - CP-D, CP-E range power supply units
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
E-Number (Finland)
2712079
E-Number (Norway)
6609493
E-Number (Sweden)
5218728
Feature: Wide input voltage range (90-264 VAC / 120-375 VDC) → Benefit: Flexible installation across regional electrical systems without additional adapters or converters → Application: Global automation installations, control panels in multi-site operations. The CP-D 24/1.3 accepts common mains without reconfiguration, reducing inventory complexity. Feature: 24 V DC output at 1.3 A (30 W) with adjustable 24–28 V DC → Benefit: Stable DC power for PLCs, sensors, and actuators with headroom for small voltage shifts → Application: Industrial controllers and I/O modules that require tight voltage control. Feature: Primary switch-mode architecture → Benefit: High efficiency, compact footprint, and cooler operation in cabinet spaces → Application: Space-constrained electrical enclosures and DIN-rail mounted power shelves. Feature: DIN rail mounting (TH35-15/TH35-7.5) and compact dimensions (53 mm W × 91 mm H × 57.5 mm D) → Benefit: Fast, secure installation with standardized rail mounting and minimal cabinet footprint → Application: Modern automation panels and machine builders seeking modular power before distribution. Feature: IP20 housing, 0.7 N·m tightening torque, and 7 mm wire stripping length → Benefit: Safe handling, reliable terminations, and compliant assembly in open cabinet environments → Application: Electrical cabinets with routine maintenance and service life considerations. Feature: Comprehensive certifications (UL 508, cUL, CE, UKCA) and EMC Class B → Benefit: Simplified regulatory compliance and dependable electromagnetic compatibility for sensitive equipment → Application: Safety-critical systems, robotics, and process control where standards matter. Feature: Output voltage stability with an adjustable range (24–28 V DC) and 1.3 A current limit → Benefit: Fine-tuned voltage provisioning for mixed I/O loads and scalable automation configurations → Application: PLCs, drives, and peripheral devices that tolerate minor voltage adjustments. Feature: Operating range -40 to +70 °C and 4,850 m altitude maximum → Benefit: Resistant performance in harsh environments and high-altitude installations → Application: Outdoor or sheltered industrial environments and high-elevation facilities. Feature: Data sheets and manuals readily available for quick commissioning → Benefit: Faster setup, fewer commissioning errors, and easier maintenance planning → Application: System integrators and maintenance teams seeking documented guidance and standard procedures.
Get a Quick Quote for a ABB 1SVR427043R0100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR427043R0100?
Enquire Now
FAQs
The CP-D 24/1.3 supports TH35-15 and TH35-7.5 DIN rails. Use the recommended 0.7 N·m tightening torque for input and output terminals and allow at least 25 mm mounting clearance around other devices to ensure proper ventilation and safety.
It accepts 90-264 V AC and 120-375 V DC, with a rated input of 100-240 V AC, enabling flexible installation across regions without additional converters.
The unit provides 24 V DC at 1.3 A (30 W rated). Output is adjustable from 24 to 28 V DC with a stable U/I characteristic to support varying load conditions in automation panels.
The CP-D 24/1.3 carries UL 508 and cUL listings, CE and UKCA declarations, and EMC Class B performance, helping you meet safety, EMI, and regional regulatory requirements.
With a compact, reliable switch-mode design, wide ambient operating range (-40 to +70 °C), IP20 protection, and DIN-rail mounting, you reduce downtime, simplify sourcing, and extend panel life while maintaining regulatory compliance across sites.
