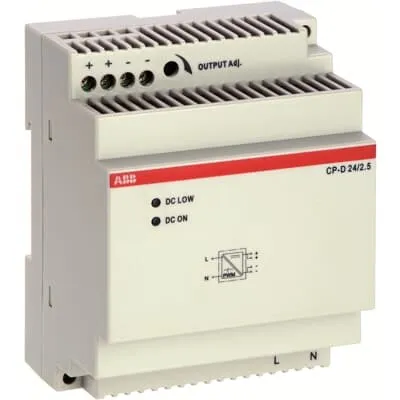

ABB CP-D 24/2.5 Power Supply 1SVR427044R0200 - UL/CE
Part Number: 1SVR427044R0200
Quick Summary
ABB CP-D 24/2.5 Power Supply is a compact 60 W DC power supply delivering stable 24 V DC at up to 2.5 A for industrial control panels. This unit simplifies panel design by accepting a wide input range, ensuring reliable operation from global mains. For engineers facing supply variability, its 90-264 VAC or 120-375 VDC input and adjustable 24–28 V output help maintain PLC and sensor performance across environments. The device carries CE and UKCA declarations, and UL/UL 508 and cUL certifications, along with RoHS and WEEE compliance, supporting safety and regulatory alignment. In practice, it reduces wiring complexity, speeds commissioning, and lowers spare-part needs, while offering robust operation on DIN rails in harsh factories and demanding environments.
Product Information
Extended Description
1SVR427044R0200 ABB: The CP-D 24/2.5 is a power supply from the CP-D range. The primary switch mode power supply offers a wide range input of 90-264 V AC and 120-375 V DC, rated input voltage is 100-240 V AC. The rated output power is 60 W, rated output current is 2.5 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 24 to 28 V DC. The power supply provides a U/I output characteristic.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
35 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Minimum Order Quantity
1 piece
Customs Tariff Number
85044095
Data Sheet, Technical Information
Data sheet - CP-D 24/2.5 Primary switch mode power supply
Instructions and Manuals
Instruction Sheet / Manual - CP-D 24/2.5
Product Net Width
71 mm
Product Net Height
91 mm
Product Net Depth / Length
57.5 mm
Product Net Weight
0.252 kg
Package Level 1 Width
91 mm
Package Level 1 Depth / Length
134 mm
Package Level 1 Height
87 mm
Package Level 1 Gross Weight
0.311 kg
Package Level 1 EAN
4016779661188
Package Level 1 Units
box 1 piece
Function
Switch mode power supply
Number of Phases
1
Rated Input Voltage (UIN)
100 ... 240 V AC
Input Voltage (Uin)
90 ... 264 V AC | 120 ... 375 V DC
Rated Frequency (f)
50 / 60 Hz
Rated Frequency Limits
47 ... 63 Hz
Characteristic of Output
U/I characteristic curve
Rated Output Power
60 W
Output Power
60 W
Rated Output Voltage
24 V DC
Output Voltage (Uout)
24 V DC
Rated Output Current
2.5 A
Output Current
2.5 A
Output Current Maximum (Iout)
2.5 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit / Output Circuit 3 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 300 V | Input Circuit / PE 300 V | Output Circuit / PE 50 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.2 ... 2.5 mm² | Rigid 0.2 ... 2.5 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 0.2 .... 2.5 mm² | Rigid 0.2 ... 2.5 mm²
Tightening Torque
Input Circuit 0.7 N·m | Output Circuit 0.7 N·m
Wire Stripping Length
Input Circuit 7 mm | Output Circuit 7 mm
Recommended Screw Driver
PH1
Minimum Mounting Distance
Electrical Conductive Board, Horizontal 25 mm | Electrical Conductive Board, Vertical 25 mm | Other Device Same Type, Horizontal 25 mm | Other Device Same Type, Vertical 25 mm
Mounting Position
1
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.107.1 | CAN/CSA C22.2 No.223 | CAN/CSA C22.2 No.60950 | IEC/EN 63000 | IEC 60950-1 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | UL 1310 | UL 508 | UL 60950
Connecting Capacity Input Circuit UL/CSA
Rigid 24-12 AWG
Connecting Capacity Output Circuit UL/CSA
Rigid 24-12 AWG
Tightening Torque UL/CSA
Input Circuit 6 in·lb | Output Circuit 6 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 15 kV | Level 4 Contact Discharge 4 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3
Level 3 10 V/m
Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4
Level 4 Power Supply Port Signal 4 kV
Surge Immunity acc. to IEC 61000-4-5
Level 3 Line-to-Line 2 kV
Conducted Disturbances Immunity acc. to IEC 61000-4-6
Level 3 10 V
Electromagnetic Compatibility (EMC)
Emission - Class B | Immunity - Class B
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
4850 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
RoHS Declaration of conformity for Power Supplies
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Power Supplies
WEEE B2C / B2B
Business To Consumer
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
cUL Certificate
cUL508_E174460
cUR Certificate
cUR60950_E196145 | cUR1310_E313203
Declaration of Conformity - CE
EU Declaration of conformity - CP-D 24/0.42; CP-D 12/0.83; CP-D 24/1.3 and CP-D 24/1.3; CP-D 12/2.1; CP-D 24/2.5; CP-D 24/2.5; BJE_CP-D_24/2.5; CP-D 24/2.5 Power supply units
Declaration of Conformity - UKCA
UK Declaration of conformity - CP-D 24/0.42; CP-D 12/0.83; CP-D 24/1.3 and CP-D 24/1.3; CP-D 12/2.1; CP-D 24/2.5; CP-D 24/2.5; BJE_CP-D_24/2.5; CP-D 24/2.5 Power supply units
UL Certificate
UL Certificate (UL 508) - CP-C, CP-D, CP-E, CP-S, and CP-T range power supply units, CP-ASI power supply units and DC/DC converter, CP-B range buffer modules and extension module, CC-E and CC-U range analog signal converters
UR Certificate
UR Certificate (UL 60950) - CP-C, CP-D, CP-E, CP-S, CP-T range power supply units, CP-A range accessories, and CP-ASI power supply units and DC/DC converter | UR Certificate (UL 1310) - CP-D, CP-E range power supply units
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
E-Number (Finland)
2712080
E-Number (Norway)
6609494
E-Number (Sweden)
5218729
Wide input range and adjustable output translate into tangible business gains: the CP-D 24/2.5 accepts 90-264 VAC or 120-375 VDC, isolating your control system from mains fluctuations and reducing the need for multiple supply variants. The 24 V DC output is rated at 2.5 A (60 W) with an adjustable 24-28 V range, letting you accommodate different PLCs, sensors, and actuators without rewiring. In practice, this means faster commissioning and fewer spare parts in the field, improving uptime for machine lines and packaging lines. Safety and compliance drive risk reduction: standard set includes IEC/UL 60950-1, UL 508, UL/cUL, CE, UKCA, RoHS, and WEEE; EMC/Class B; IP20 housing. These certifications streamline validation steps for system integrators, support regulatory approvals, and simplify customer audits. The unit's DIN-rail mounting capability (TH35-15 or TH35-7.5) enables consistent, space-efficient panel layouts across machines. Operational resilience: -40 to +70 C ambient, up to 4850 m altitude; robust to factory heat, dust, and vibration. The compact form factor (71 x 91 x 57.5 mm) and weight of 0.252 kg ease installation in tight cabinets and rail-mounted frames. Input/output wiring is straightforward: flexible 0.2-2.5 mm² conductors, 7 mm stripping length, and a recommended PH1 screwdriver, with tightening torques of 0.7 N·m. Lifecycle and serviceability: with data sheets and manuals available, warranty terms state that products under warranty must be returned; stock is maintained at multiple warehouses, with zero-day lead times shown for several suppliers, supporting fast replenishment and reduced downtime.
Get a Quick Quote for a ABB 1SVR427044R0200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR427044R0200?
Enquire Now
FAQs
The CP-D 24/2.5 is designed for DIN-rail mounting, supporting TH35-15 and TH35-7.5 rails. It fits standard control cabinets and enables consistent spacing for reliable venting and wiring. This makes retrofits and panel redesigns straightforward, with minimal additional hardware required.
Key specs include a 60 W output, 24 V DC at 2.5 A (adjustable to 24–28 V), input range of 90–264 VAC or 120–375 VDC, rated input 100–240 VAC, and an U/I characteristic. It operates at 50/60 Hz with IP20 protection, suitable for PLCs, sensors, and small actuators in mixed-supply environments.
Yes. It is rated for -40 to +70 C ambient temperatures and up to 4850 m altitude, making it appropriate for harsh factory floors and high-altitude installations. The IP20 enclosure and EMC Class B performance further support reliable operation in tough environments.
The unit carries CE and UKCA declarations, UL 508 and cUL certificates, UL/UR listings, IEC/EN 60950 compatibility, and RoHS/WEEE compliance. This broad certification set facilitates global regulatory acceptance, simplifies customer audits, and accelerates compliance during system integration.
The CP-D 24/2.5 is actively stocked across multiple warehouses, with supplier notes indicating 0 day lead time for some locations. For project planning, this generally translates to fast dispatch and minimal downtime when replacing or expanding control panels.
