ABB 1SVR427054R2000 CP-T power supply UL 508
Part Number: 1SVR427054R2000
Quick Summary
CP-T 48/5.0 power supply from ABB reliably delivers 48 V DC at 5 A for industrial control panels. Engineers often contend with voltage fluctuation, incomplete protection, and regulatory hurdles across equipment; this module provides stable output with built-in protection and straightforward integration. It carries CE and UKCA declarations, UL 508 certification, and compliance with IEC/EN EMC and safety standards, helping you meet global requirements with a single, robust solution. For panel builders and OEMs, the compact DIN-rail-friendly form factor and clear mounting guidelines reduce wiring time and spare parts. In short, it supports efficient, compliant automation while simplifying procurement and maintenance in demanding environments.
Product Information
Extended Description

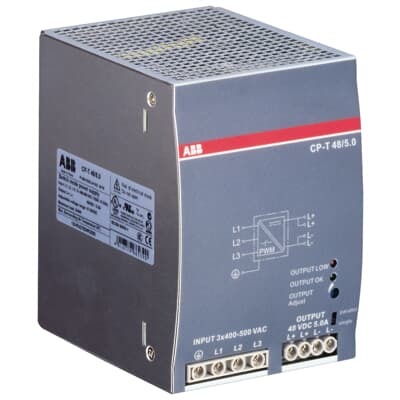

1SVR427054R2000 ABB: CP-T 48/5.0 Power supply In: 3x400-500VAC Out: 48VDC/5.0A
Minimum Order Quantity
1 piece
Customs Tariff Number
85044095
Data Sheet, Technical Information
Data sheet - CP-T 48/5.0 Primary switch mode power supply
Instructions and Manuals
Instruction Sheet / Manual - CP-T 24/10.0 and CP-T 48/5.0
Product Net Width
89 mm
Product Net Height
131 mm
Product Net Depth / Length
119 mm
Product Net Weight
1.045 kg
Package Level 1 Width
161 mm
Package Level 1 Depth / Length
106 mm
Package Level 1 Height
164 mm
Package Level 1 Gross Weight
1.158 kg
Package Level 1 EAN
4016779662390
Package Level 1 Units
box 1 piece
Function
Switch mode power supply
Number of Phases
3
Rated Input Voltage (UIN)
3x 400 ... 500 V AC
Input Voltage (Uin)
3 x 340 ... 575 V AC | 480 ... 820 V DC
Rated Frequency (f)
50 Hz
Rated Frequency Limits
47 ... 63 Hz
Characteristic of Output
Hiccup-mode
Rated Output Power
240 W
Output Power
240 W
Rated Output Voltage
48 V DC
Output Voltage (Uout)
48 V DC
Rated Output Current
5 A
Output Current
5 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit / Output Circuit 6 kV | Input Circuit / PE 4 kV | Input Circuit / Relay Contact 4 kV | Output Circuit / PE 0.8 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 500 V | Input Circuit / PE 500 V | Input Circuit / Relay Contact 500 V | Output Circuit / PE 60 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.2 ... 4 mm² | Rigid 0.2 ... 6 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 0.2 ... 4 mm² | Rigid 0.2 ... 6 mm²
Tightening Torque
Input Circuit 1 N·m | Output Circuit 0.6 N·m
Wire Stripping Length
Auxiliary Circuit 8 mm | Input Circuit 8 mm | Output Circuit 8 mm
Recommended Screw Driver
PH2
Minimum Mounting Distance
Electrical Conductive Board, Horizontal 25 mm | Electrical Conductive Board, Vertical 25 mm | Other Device Same Type, Horizontal 25 mm | Other Device Same Type, Vertical 25 mm
Mounting Position
1
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
ANSI/ISA-12.12 | CAN/CSA C22.2 No.107.1 | CAN/CSA C22.2 No.213 | CAN/CSA C22.2 No.60950 | IEC/EN 63000 | IEC 60950-1 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | UL 508 | UL 60950
Connecting Capacity Input Circuit UL/CSA
Rigid 24-10 AWG
Connecting Capacity Output Circuit UL/CSA
Rigid 24-10 AWG
Tightening Torque UL/CSA
Input Circuit 9 in·lb | Output Circuit 5.5 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 15 kV | Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3
Level 3 10 V/m
Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4
Level 4 Power Supply Port Signal 4 kV
Surge Immunity acc. to IEC 61000-4-5
Level 3 Line-to-Line 2 kV | Level 4 Line-to-Line 4 kV
Conducted Disturbances Immunity acc. to IEC 61000-4-6
Level 3 10 V
Electromagnetic Compatibility (EMC)
Immunity - Class B | Emission - Environment B
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
5000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
RoHS Declaration of conformity for Power Supplies
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Power Supplies
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CQC Certificate
CQC_10001047454
cUL Certificate
cUL508_E174460
cUR Certificate
cUR60950_E196145 | cUR_ANSI_E317914
Declaration of Conformity - CE
EU Declaration of conformity - CP-T 24/5.0; CP-T 48/5.0 and CP-T 24/10.0 Power supply units
Declaration of Conformity - UKCA
UK Declaration of conformity - CP-T 24/5.0; CP-T 48/5.0 and CP-T 24/10.0 Power supply units
UL Certificate
UL Certificate (UL 508) - CP-C, CP-D, CP-E, CP-S, and CP-T range power supply units, CP-ASI power supply units and DC/DC converter, CP-B range buffer modules and extension module, CC-E and CC-U range analog signal converters
UR Certificate
UR Certificate (UL 60950) - CP-C, CP-D, CP-E, CP-S, CP-T range power supply units, CP-A range accessories, and CP-ASI power supply units and DC/DC converter | UR Certificate (ANSI/ISA-12.12) - CP-D, CP-T range power supply units
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
E-Number (Finland)
2712070
E-Number (Norway)
6609474
E-Number (Sweden)
5218718
Feature: 3-phase input and 48 V DC output provide a clean, isolated supply for PLCs and field devices. Business impact: reduces risk of voltage droop across loads and simplifies wiring topology in automation cabinets. Application: ideal for 3-phase control panels and machine builds requiring stable 48 V DC power. Feature: 240 W rated output with 5 A maximum current. Business impact: affords headroom for multiple sensors and actuator modules, improving reliability and reducing the need for serial power supplies. Application: panel assemblies and distributed control provisions in manufacturing lines. Feature: Wide input range 3x 400…500 VAC and 480…820 V DC; 50 Hz nominal (47–63 Hz). Business impact: global compatibility, streamlined procurement, and fewer voltage mismatches during system expansion. Application: worldwide industrial installations and OEM equipment. Feature: Hiccup-mode protection and robust overcurrent handling. Business impact: maintains uptime by limiting shutdowns during transient faults while protecting downstream devices. Application: critical loads with varying startup currents. Feature: IP20 enclosure, 500 V insulation, and comprehensive EMC/EMI immunity. Business impact: safer cabinet integration and compliance with harsh environments, reducing rework and warranty risk. Application: factory automation, robotics, and control panels with stringent safety requirements. Feature: DIN rail mounting compatibility (TH35-15 and TH35-7.5), compact footprint, and clear mechanical dimensions. Business impact: ease of installation, faster commissioning, and modular scalability. Application: retrofits and new builds on standard European DIN rails for streamlined maintenance and serviceability.
Get a Quick Quote for a ABB 1SVR427054R2000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR427054R2000?
Enquire Now
FAQs
Yes. The CP-T 48/5.0 is designed for DIN rail mounting according to TH35-15 and TH35-7.5 standards. It supports horizontal or vertical placement on a conductive board with a minimum clearance of 25 mm, and uses a 1 N·m tightening torque on the input terminals and 0.6 N·m on the output terminals, ensuring secure, compliant installation in control panels.
The unit is a 3-phase input switch-mode power supply with 48 V DC output at 5 A (240 W). Rated input is 3×400–500 VAC, with input range 3×340–575 VAC or 480–820 V DC. It operates at 50 Hz (47–63 Hz range) and provides 48 V DC output with 5 A maximum current, suitable for PLCs and field devices.
Absolutely. It supports operation from -40 to +70 °C and up to 5000 m altitude. With IP20 protection, surge and ESD immunity per IEC 61000-4-x standards, and EMI/EMC robustness, it remains reliable in noisy factories and under demanding loads typical of automation installations.
The CP-T 48/5.0 carries CE and UKCA declarations, UL 508 certification, and UL/UR listings, along with RoHS/REACH declarations. This broad certification set supports regulatory compliance across Europe and North America for industrial automation projects.
With 240 W output and a robust hiccup-mode protection, the supply minimizes downtime from short circuits and overloads. Its DIN-rail compatibility reduces installation time, while durable EMC and temperature specs lower service costs. Expected ROI improves through higher MTBF, reduced spare parts, and simpler procurement for automation panels.
