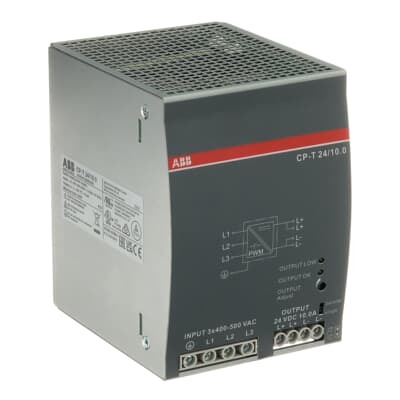

ABB 1SVR427055R0000 Power Supply - UL 508 CE
Part Number: 1SVR427055R0000
Quick Summary
ABB 1SVR427055R0000 Power Supply is a 24 VDC, 10 A switch-mode unit designed for demanding industrial control and automation panels. In practice, engineers struggle with reliability and downtime when supplies fail in harsh environments or from mismatched mains; this device helps mitigate that risk. It carries UL 508, CE, and UKCA certifications, plus cUL/cUR listings and strong EMC compliance, supporting regulatory alignment across markets. The compact DIN-rail mount, 240 W output, and wide input range simplify panel wiring, reduce BOM costs, and improve overall equipment availability for modern automation deployments.
Product Information
Extended Description
1SVR427055R0000 ABB: CP-T 24/10.0 Power supply In: 3x400-500VAC Out: 24VDC/10.0A
Minimum Order Quantity
1 piece
Customs Tariff Number
85044095
Data Sheet, Technical Information
Data sheet - CP-T 24/10.0 Primary switch mode power supply
Instructions and Manuals
Instruction Sheet / Manual - CP-T 24/10.0 and CP-T 48/5.0
Product Net Width
89 mm
Product Net Height
131 mm
Product Net Depth / Length
119 mm
Product Net Weight
1.045 kg
Package Level 1 Width
161 mm
Package Level 1 Depth / Length
106 mm
Package Level 1 Height
164 mm
Package Level 1 Gross Weight
1.158 kg
Package Level 1 EAN
4016779662369
Package Level 1 Units
box 1 piece
Function
Switch mode power supply
Number of Phases
3
Rated Input Voltage (UIN)
3x 400 ... 500 V AC
Input Voltage (Uin)
3 x 340 ... 575 V AC | 480 ... 820 V DC
Rated Frequency (f)
50 Hz
Rated Frequency Limits
47 ... 63 Hz
Characteristic of Output
Hiccup-mode
Rated Output Power
240 W
Output Power
240 W
Rated Output Voltage
24 V DC
Output Voltage (Uout)
24 V DC
Rated Output Current
10 A
Output Current
10 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit / Output Circuit 6 kV | Input Circuit / PE 4 kV | Input Circuit / Relay Contact 4 kV | Output Circuit / PE 0.8 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 500 V | Input Circuit / PE 500 V | Input Circuit / Relay Contact 500 V | Output Circuit / PE 50 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.2 ... 4 mm² | Rigid 0.2 ... 6 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 0.2 ... 4 mm² | Rigid 0.2 ... 6 mm²
Tightening Torque
Input Circuit 1 N·m | Output Circuit 0.6 N·m
Wire Stripping Length
Auxiliary Circuit 8 mm | Input Circuit 8 mm | Output Circuit 8 mm
Recommended Screw Driver
PH2
Minimum Mounting Distance
Electrical Conductive Board, Horizontal 25 mm | Electrical Conductive Board, Vertical 25 mm | Other Device Same Type, Horizontal 25 mm | Other Device Same Type, Vertical 25 mm
Mounting Position
1
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
ANSI/ISA-12.12 | CAN/CSA C22.2 No.107.1 | CAN/CSA C22.2 No.213 | CAN/CSA C22.2 No.60950 | IEC/EN 63000 | IEC 60950-1 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | UL 508 | UL 60950
Connecting Capacity Input Circuit UL/CSA
Rigid 24-10 AWG
Connecting Capacity Output Circuit UL/CSA
Rigid 24-10 AWG
Tightening Torque UL/CSA
Input Circuit 9 in·lb | Output Circuit 5.5 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 15 kV | Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3
Level 3 10 V/m
Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4
Level 4 Power Supply Port Signal 4 kV
Surge Immunity acc. to IEC 61000-4-5
Level 3 Line-to-Line 2 kV | Level 4 Line-to-Line 4 kV
Conducted Disturbances Immunity acc. to IEC 61000-4-6
Level 3 10 V
Electromagnetic Compatibility (EMC)
Immunity - Class B | Emission - Environment B
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
5000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
RoHS Declaration of conformity for Power Supplies
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Power Supplies
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
cUL Certificate
cUL508_E174460
cUR Certificate
cUR60950_E196145 | cUR_ANSI_E317914
Declaration of Conformity - CE
EU Declaration of conformity - CP-T 24/5.0; CP-T 48/5.0 and CP-T 24/10.0 Power supply units
Declaration of Conformity - UKCA
UK Declaration of conformity - CP-T 24/5.0; CP-T 48/5.0 and CP-T 24/10.0 Power supply units
UL Certificate
UL Certificate (UL 508) - CP-C, CP-D, CP-E, CP-S, and CP-T range power supply units, CP-ASI power supply units and DC/DC converter, CP-B range buffer modules and extension module, CC-E and CC-U range analog signal converters
UR Certificate
UR Certificate (UL 60950) - CP-C, CP-D, CP-E, CP-S, CP-T range power supply units, CP-A range accessories, and CP-ASI power supply units and DC/DC converter | UR Certificate (ANSI/ISA-12.12) - CP-D, CP-T range power supply units
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
E-Number (Finland)
2712071
E-Number (Norway)
6609471
E-Number (Sweden)
5218719
Feature → Business Impact → Application: Wide 3x400-500 VAC input (50 Hz, 47-63 Hz) lets you standardize on a single PSU across regional grids, reducing stock complexity and installation time in global machines. The result is faster commissioning and lower spare-part overhead for machine builders and OEMs deploying automation racks. Feature → Hiccup-mode with 24 VDC at 10 A output (240 W) provides robust short-circuit protection, minimizing downtime and protecting sensitive PLC I/O during fault events. This supports more reliable machine uptime in high-density control panels and safety-rated environments. Feature → Isolation up to 500 V Ui and high impulse withstand ratings improve safety margins between input, output, and earth, enabling safer integration with drives and sensors in multi-cabinet systems. Application examples include packaging lines and material handling systems where fault robustness reduces repair cycles. Feature → EMC immunity and emissions per IEC 61000-4 and -6, Class B emissions, and rugged environmental specs translate to compliant operation in factory floors with heavy electrical noise. Ideal for robotic stations and conveyor controls that demand predictable performance. Feature → IP20 protection, operating range -40 to +70 °C, and 5000 m altitude enable reliable operation in unconditioned or space-limited enclosures, aligning with industrial standards for harsh environments. These specs fit control panels in automotive, food-and-beverage, and aerospace ecosystems where reliability is mission-critical. Feature → DIN rail mounting TH35-15/TH35-7.5 and tightness torque values support quick installation and repeatable maintenance, reducing commissioning time and ensuring mechanical integrity in crowded cabinets. Application domains include OEM control panels and machine builders seeking scalable, code-compliant power solutions. Feature → Comprehensive certifications (UL 508, cUL, UR, CE, UKCA, RoHS, REACH) provide cross-market approvals, simplifying procurement and compliance workflows for global projects. These credentials are critical for regulated industries like machinery, packaging, and process automation. The combination of compact size, high reliability, and broad approvals addresses common objections about fit, safety, and lifecycle costs, delivering a strong total-cost-of-ownership advantage.
Get a Quick Quote for a ABB 1SVR427055R0000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR427055R0000?
Enquire Now
FAQs
Install the unit on TH35 DIN rails (TH35-15 or TH35-7.5) in upright orientation. Use flexible ferrule 0.2–4 mm² or rigid 0.2–6 mm² conductors for both input and output; tighten input to 1 N·m and output to 0.6 N·m. Wire-stripping length is 8 mm for all connections. This configuration ensures secure mounting, reliable connections, and maintains electrical clearances in dense panels.
The unit accepts 3×400–500 V AC input (50 Hz, 47–63 Hz) and delivers 24 V DC at up to 10 A (240 W). It features hiccup-mode protection, an input/output insulation rating of up to 500 V, and suitable for 3-phase panels. This makes it ideal for centralized control cabinets and machine feeders requiring steady DC power.
Yes. It operates from -40 to +70 °C and tolerates up to 5000 m altitude, with IP20 protection for housing and terminals. It holds multiple safety certifications (UL 508, CE, UKCA, cUL/cUR) and robust EMC performance, making it suitable for safety-critical automation applications in manufacturing lines and process controls.
Certifications include UL 508, cUL, UR, CE, UKCA, RoHS, REACH, and WEEE for B2B use. DoC declarations cover CE and UKCA compliance, and additional EMC/industrial standards are listed, ensuring broad market acceptance and streamlined regulatory approvals for global machinery projects.
The switched-mode design delivers reliable 24 VDC at 10 A with short-circuit protection, reducing downtime from power faults. Its wide input range minimizes panel wiring variations, and compact DIN-rail form saves enclosure space, lowering installation costs and facilitating easier maintenance in high-density control panels.
