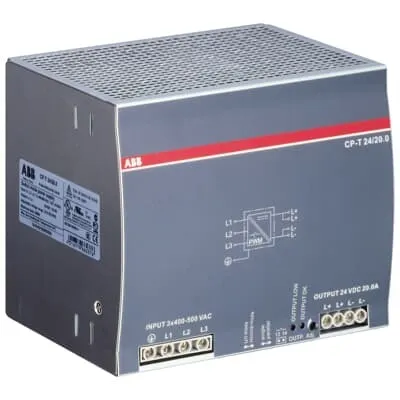

ABB 1SVR427056R0000 DC Power Supply - 24V 20A IP20
Part Number: 1SVR427056R0000
Quick Summary
ABB CP-T 24/20.0 power supply provides 24 VDC at 20 A for control cabinets. In many panels, inconsistent rails cause resets and downtime; this unit minimizes those risks. Critical certificates include CE, UKCA, and UL 508 safety listings, plus UL/CSA recognition for North American use. Its IP20 enclosure and 3x400-500 VAC input offer reliability and installation flexibility across industrial facilities. Business value comes from consistent 24 V rails, simplified sourcing, and proven compliance across global markets. Designed for DIN rail mounting and easy field wiring, it supports rapid deployment in new builds or retrofit projects. The unit's 480 W output capacity covers most control panels with headroom for future expansion.
Product Information
Extended Description
1SVR427056R0000 ABB: CP-T 24/20.0 Power supply In: 3x400-500VAC Out: 24VDC/20.0A
Lead Time
28 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USSVCEXPU
Warranty Return
Product under warranty must be returned
Minimum Order Quantity
1 piece
Customs Tariff Number
85044095
Data Sheet, Technical Information
Data sheet - CP-T 24/20.0 Primary switch mode power supply
Instructions and Manuals
Instruction Sheet / Manual - CP-T 24/20.0 and CP-T 48/10.0
Product Net Width
150 mm
Product Net Height
131 mm
Product Net Depth / Length
119 mm
Product Net Weight
1.657 kg
Package Level 1 Width
200 mm
Package Level 1 Depth / Length
190 mm
Package Level 1 Height
190 mm
Package Level 1 Gross Weight
1.922 kg
Package Level 1 EAN
4016779662376
Package Level 1 Units
box 1 piece
Function
Switch mode power supply
Number of Phases
3
Rated Input Voltage (UIN)
3x 400 ... 500 V AC
Input Voltage (Uin)
3 x 340 ... 575 V AC | 480 ... 820 V DC
Rated Frequency (f)
50 Hz
Rated Frequency Limits
47 ... 63 Hz
Characteristic of Output
U/I characterisitc curve or Hiccup-mode selectable
Rated Output Power
480 W
Output Power
480 W
Rated Output Voltage
24 V DC
Output Voltage (Uout)
24 V DC
Rated Output Current
20 A
Output Current
20 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit / Output Circuit 6 kV | Input Circuit / PE 4 kV | Input Circuit / Relay Contact 4 kV | Output Circuit / PE 0.8 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 500 V | Input Circuit / PE 500 V | Input Circuit / Relay Contact 500 V | Output Circuit / PE 50 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.2 ... 4 mm² | Rigid 0.2 ... 6 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 0.2 ... 4 mm² | Rigid 0.2 ... 6 mm²
Tightening Torque
Input Circuit 1 N·m | Output Circuit 0.6 N·m
Wire Stripping Length
Auxiliary Circuit 8 mm | Input Circuit 8 mm | Output Circuit 8 mm
Recommended Screw Driver
PH2
Minimum Mounting Distance
Electrical Conductive Board, Horizontal 25 mm | Electrical Conductive Board, Vertical 25 mm | Other Device Same Type, Horizontal 25 mm | Other Device Same Type, Vertical 25 mm
Mounting Position
1
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
ANSI/ISA-12.12 | CAN/CSA C22.2 No.107.1 | CAN/CSA C22.2 No.213 | CAN/CSA C22.2 No.60950 | IEC/EN 63000 | IEC 60950-1 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | UL 508 | UL 60950
Connecting Capacity Input Circuit UL/CSA
Rigid 24-10 AWG
Connecting Capacity Output Circuit UL/CSA
Rigid 24-10 AWG
Tightening Torque UL/CSA
Input Circuit 9 in·lb | Output Circuit 5.5 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 15 kV | Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3
Level 3 10 V/m
Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4
Level 4 Power Supply Port Signal 4 kV
Surge Immunity acc. to IEC 61000-4-5
Level 3 Line-to-Line 2 kV | Level 4 Line-to-Line 4 kV
Conducted Disturbances Immunity acc. to IEC 61000-4-6
Level 3 10 V
Electromagnetic Compatibility (EMC)
Immunity - Class B | Emission - Environment B
Ambient Air Temperature
Operation -30 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
5000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
RoHS Declaration of conformity for Power Supplies
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Power Supplies
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
cUL Certificate
cUL508_E174460
cUR Certificate
cUR60950_E196145 | cUR_ANSI_E317914
Declaration of Conformity - CE
EU Declaration of conformity - CP-T 48/10.0 and CP-T 24/20.0 Power supply units
Declaration of Conformity - UKCA
UK Declaration of conformity - CP-T 48/10.0 and CP-T 24/20.0 Power supply units
UL Certificate
UL Certificate (UL 508) - CP-C, CP-D, CP-E, CP-S, and CP-T range power supply units, CP-ASI power supply units and DC/DC converter, CP-B range buffer modules and extension module, CC-E and CC-U range analog signal converters
UR Certificate
UR Certificate (UL 60950) - CP-C, CP-D, CP-E, CP-S, CP-T range power supply units, CP-A range accessories, and CP-ASI power supply units and DC/DC converter | UR Certificate (ANSI/ISA-12.12) - CP-D, CP-T range power supply units
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
E-Number (Finland)
2712073
E-Number (Norway)
6609472
E-Number (Sweden)
5218721
The CP-T 24/20.0 delivers a stable 24 VDC output up to 20 A, ensuring PLCs and motor controllers receive reliable power with minimal ripple. This means fewer nuisance faults and smoother automation cycles, especially in high-load cabinet environments where sudden voltage dips can crash processes. Designed for 3x400-500 VAC input at 50 Hz, it simplifies global installation by accommodating common European and international electrical standards. Operators benefit from reduced wiring complexity and lower total cost of ownership when replacing legacy supplies or integrating new machines in mixed-voltage facilities. The unit offers selectable U/I characteristic curves or hiccup-mode operation, enabling controlled response to overloads. This provides predictable shutdown behavior that protects connected equipment and minimizes downtime during fault conditions, while allowing quick recovery after transient events. The CP-T 24/20.0 delivers up to 480 W of continuous power and is compatible with a wide range of sensors and actuators, facilitating turnkey control panel design. With IP20 housing and robust EMC immunity, it is suited for common control cabinets in factory floors, and compliance with UL 508, CE, and UKCA reduces regulatory risk. Its DIN rail mounting and compact footprint simplify installation in dense panels, while the 131 mm height and 150 mm width optimize space planning. Operating in a wide temperature range of -30 to +70 °C and up to 5000 m altitude, the supply maintains performance in harsh environments. The unit’s RoHS, REACH, and WEEE declarations support sustainable asset management and end-of-life planning.
Get a Quick Quote for a ABB 1SVR427056R0000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR427056R0000?
Enquire Now
FAQs
The CP-T 24/20.0 is designed for DIN rail mounting with TH35-15 or TH35-7.5 rails, aligning with standard European panel hardware. It measures 150 mm in width and 131 mm in height, with a depth of 119 mm and a product weight of 1.657 kg, making it suitable for dense control cabinets. Installation is straightforward using standard terminal connections and a 1 N·m tightening torque on inputs.
Key specs include a 480 W rated output power, 24 VDC output at up to 20 A, input voltage of 3x 400–500 VAC (also listed for 340–575 VAC inputs), 50 Hz nominal frequency with 47–63 Hz tolerance, and an IP20 enclosure. It supports U/I curves or hiccup-mode for overload protection, delivering reliable performance in automation cabinets.
The CP-T 24/20.0 carries UL 508 and UL/CSA recognition, along with CE and UKCA declarations of conformity. These certifications cover safety and electromagnetic compatibility, facilitating regulatory compliance in North American and European markets. RoHS and REACH declarations further support environmental compliance, while WEEE classification helps with end-of-life responsibilities.
Yes. The unit operates from -30 to +70 °C and supports use at altitudes up to 5000 m, providing resilience in challenging industrial settings. IP20 protection guards against incidental finger contact, and EMC immunity levels meet Class B/industrial environment expectations. This makes it a robust choice for machine controls, automation panels, and process instrumentation in demanding facilities.
The CP-T 24/20.0 is designed for long service life with a 480 W continuous output, minimizing downtime from voltage fluctuations. Its compact DIN-rail form factor reduces panel space costs, while UL/CE/UKCA compliance lowers regulatory risk. With standard wiring practices and straightforward field wiring, maintenance is simplified, contributing to lower total cost of ownership in control cabinets over the asset lifecycle.
