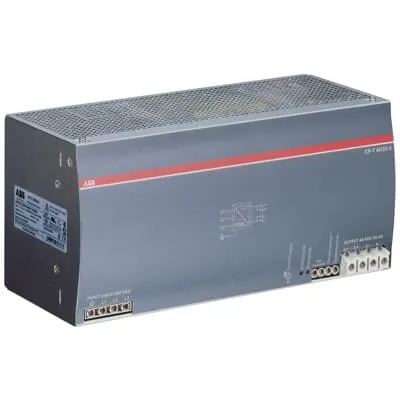

ABB 1SVR427056R2000 Power Supply - CE/UL Certifications
Part Number: 1SVR427056R2000
Quick Summary
ABB 1SVR427056R2000 power supply is a 48 V DC, 20 A output unit designed for 3-phase industrial automation and control systems. It delivers reliable, regulated power from 3x400–500 VAC mains, reducing panel wiring complexity and minimizing downtime from power faults. This device carries CE and UL certifications, plus UKCA declarations and EMC immunity, helping you meet global safety and compliance requirements. With DIN rail mounting and a robust 960 W rating, it provides generous headroom for future expansion while keeping installation compact and cost-efficient for modern control cabinets.
Product Information
Extended Description
1SVR427056R2000 ABB: CP-T 48/20.0 Power supply In: 3x400-500VAC Out: 48VDC/20.0A
Country of Origin
Switzerland (CH)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHABB001EXPU
Warranty Return
Product under warranty must be returned
Minimum Order Quantity
1 piece
Customs Tariff Number
85044095
Data Sheet, Technical Information
Data sheet - CP-T 48/20.0 Primary switch mode power supply
Instructions and Manuals
Instruction Sheet / Manual - CP-T 24/40.0 and CP-T 48/20.0
Product Net Width
276 mm
Product Net Height
131 mm
Product Net Depth / Length
121 mm
Product Net Weight
3.275 kg
Package Level 1 Width
170 mm
Package Level 1 Depth / Length
342 mm
Package Level 1 Height
165 mm
Package Level 1 Gross Weight
3.8 kg
Package Level 1 EAN
4016779697873
Package Level 1 Units
box 1 piece
Function
Switch mode power supply
Number of Phases
3
Rated Input Voltage (UIN)
3x 400 ... 500 V AC
Input Voltage (Uin)
3 x 340 ... 575 V AC | 480 ... 820 V DC
Rated Frequency (f)
50 Hz
Rated Frequency Limits
47 ... 63 Hz
Characteristic of Output
Hiccup-mode
Rated Output Power
960 W
Output Power
960 W
Rated Output Voltage
48 V DC
Output Voltage (Uout)
48 V DC
Rated Output Current
20 A
Output Current
20 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit / Output Circuit 6 kV | Input Circuit / PE 4 kV | Input Circuit / Relay Contact 4 kV | Output Circuit / PE 0.8 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 500 V | Input Circuit / PE 500 V | Input Circuit / Relay Contact 500 V | Output Circuit / PE 60 V
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.2 ... 4 mm² | Rigid 0.2 ... 6 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 0.5 ... 10 mm² | Rigid 0.5 ... 16 mm²
Tightening Torque
Auxiliary Circuit 0.6 N·m | Input Circuit 1 N·m | Output Circuit 1.8 N·m
Wire Stripping Length
Auxiliary Circuit 8 mm | Input Circuit 8 mm | Output Circuit 10 mm
Recommended Screw Driver
PH2
Minimum Mounting Distance
Electrical Conductive Board, Horizontal 25 mm | Electrical Conductive Board, Vertical 25 mm | Other Device Same Type, Horizontal 25 mm | Other Device Same Type, Vertical 25 mm
Mounting Position
1
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
ANSI/ISA-12.12 | CAN/CSA C22.2 No.107.1 | CAN/CSA C22.2 No.213 | CAN/CSA C22.2 No.60950 | IEC/EN 63000 | IEC 60950-1 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | UL 508 | UL 60950
Connecting Capacity Input Circuit UL/CSA
Rigid 24-10 AWG
Connecting Capacity Output Circuit UL/CSA
Rigid 20-6 AWG
Tightening Torque UL/CSA
Input Circuit 9 in·lb | Output Circuit 15.6 in·lb
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
Level 4 Air Discharge 15 kV | Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3
Level 3 10 V/m
Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4
Level 4 Power Supply Port Signal 4 kV
Surge Immunity acc. to IEC 61000-4-5
Level 3 Line-to-Line 2 kV | Level 4 Line-to-Line 4 kV
Conducted Disturbances Immunity acc. to IEC 61000-4-6
Level 3 10 V
Electromagnetic Compatibility (EMC)
Immunity - Class B | Emission - Environment B
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
5000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
RoHS Declaration of conformity for Power Supplies
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Power Supplies
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CQC Certificate
CQC_10001048916
cUL Certificate
cUL508_E174460
cUR Certificate
cUR60950_E196145 | cUR_ANSI_E317914
Declaration of Conformity - CE
EU Declaration of conformity - CP-T 48/20.0 and CP-T 24/40.0 Power supply units
Declaration of Conformity - UKCA
UK Declaration of conformity - CP-T 48/20.0 and CP-T 24/40.0 Power supply units
UL Certificate
UL Certificate (UL 508) - CP-C, CP-D, CP-E, CP-S, and CP-T range power supply units, CP-ASI power supply units and DC/DC converter, CP-B range buffer modules and extension module, CC-E and CC-U range analog signal converters
UR Certificate
UR Certificate (UL 60950) - CP-C, CP-D, CP-E, CP-S, CP-T range power supply units, CP-A range accessories, and CP-ASI power supply units and DC/DC converter | UR Certificate (ANSI/ISA-12.12) - CP-D, CP-T range power supply units
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
E-Number (Finland)
2712074
E-Number (Norway)
6609476
E-Number (Sweden)
5218722
The CP-T 48/20.0 accepts a wide 3x400–500 VAC input range, enabling flexible sourcing across international sites and reducing the need for local transformers. This translates to lower wiring costs and simpler commissioning in multi-site deployments, with reliable 48 V DC output at 20 A (960 W) feeding PLCs, drives, and I/O modules. Hiccup-mode protection minimizes disturbance during transient faults, protecting downstream equipment and easing fault diagnosis with faster recovery. DIN rail mounting on TH35 profiles (TH35-15 and TH35-7.5) delivers rapid installation and standardized cabinet layouts, saving installation time and space in crowded panels. The unit operates from -40 to +70 °C and is rated IP20 for housing and terminals, enabling dependable performance in factory environments while maintaining compliance with EMC and safety standards. EMC immunity and broad standard certifications provide confidence for global deployments across machinery, packaging, and process automation.
Get a Quick Quote for a ABB 1SVR427056R2000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR427056R2000?
Enquire Now
FAQs
The unit mounts on TH35 DIN rails (TH35-15 or TH35-7.5) and is designed for standard enclosure spaces. Use a PH2 screwdriver, tighten input and output terminals to 1 N·m and 1.8 N·m respectively, and maintain the recommended 25 mm mounting clearance. It supports flexible wire sizes (0.2–6 mm² input, 0.5–16 mm² output) for reliable, code-compliant installations.
Input is three-phase 3x400–500 VAC (with a flexible range for DC operation 480–820 VDC). Output is 48 V DC at up to 20 A (960 W). The device uses hiccup-mode protection to handle overloads gracefully, ensuring the rest of the system remains powered while fault conditions are cleared.
Yes. The CP-T 48/20.0 supports 480–820 V DC input ranges, making it adaptable to DC-bus powered installations. Its 48 V DC output is ideal for PLCs, servo drives, and peripheral modules, with a robust 960 W rating that accommodates peak load requirements in automation panels.
The unit carries CE and UKCA declarations, UL 508 and cUR certifications, and UL/CSA references for multiple configurations. It also meets IEC/EN 61000 EMC standards for immunity and emission, UL 60950 safety requirements, and IP20 protection. These certifications support global deployments in regulated environments.
With a 960 W output, 3x input capability, and rugged IEC/UL compliance, you gain reliable control power with reduced downtime and fewer faults. Hiccup-mode protection limits stress on connected loads, potentially lowering maintenance costs. The device’s DIN-rail form factor also reduces cabinet space and installation time, contributing to faster commissioning and long-term operational efficiency.
