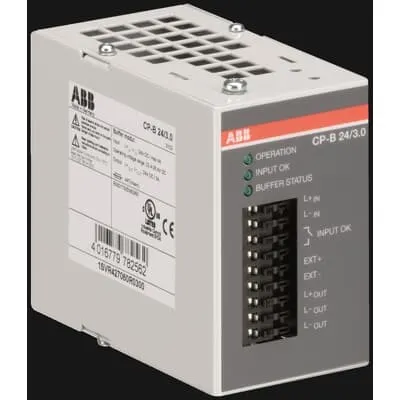

ABB 1SVR427060R0300 Buffer module - UL 508
Part Number: 1SVR427060R0300
Quick Summary
Buffer module is designed to provide emergency energy storage for PLCs and control circuits in automation systems. During voltage dips or brief power interruptions, it helps prevent unplanned downtime and data loss. It carries CE and UKCA declarations and UL 508 listing, ensuring safety and compliance across major markets. Featuring a compact DIN rail-friendly form and 1000 Ws energy storage, it delivers reliable hold-up for demanding industrial applications while aligning with common automation architectures and 24 V DC systems.
Product Information
Extended Description
1SVR427060R0300 ABB: CP-B 24/3.0 Buffer module 24 V / 3 A, energy storage 1000 Ws
Minimum Order Quantity
1 piece
Customs Tariff Number
85044083
Data Sheet, Technical Information
Data sheet - CP-B 24/3.0 Buffer module, ultra-capacitor based
Instructions and Manuals
Instruction Sheet / Manual - CP-B 24/3.0 Buffer module
Product Net Width
60 mm
Product Net Height
100 mm
Product Net Depth / Length
126.2 mm
Product Net Weight
0.594 kg
Package Level 1 Width
170 mm
Package Level 1 Depth / Length
220 mm
Package Level 1 Height
85 mm
Package Level 1 Gross Weight
0.794 kg
Package Level 1 EAN
4016779782562
Package Level 1 Units
box 1 piece
Function
Buffer module
Number of Phases
1
Input Voltage (Uin)
24 V DC
Rated Frequency (f)
DC
Output Power
69 W
Output Voltage (Uout)
24 V DC
Output Current
3 A
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.08 ... 1.0 mm² | Flexible 0.08 ... 1.0 mm² | Rigid 0.08 ... 1.5 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 0.08 ... 1.0 mm² | Flexible 0.08 ... 1.0 mm² | Rigid 0.08 ... 1.5 mm²
Wire Stripping Length
Input Circuit 6 mm | Output Circuit 6 mm
Minimum Mounting Distance
Other Device Same Type, Vertical 40 mm
Mounting Position
1
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.107.1 | IEC/EN 63000 | EN 55011 | IEC/EN 61000-6-2 | IEC/EN 61000-6-4 | IEC/EN 62040-2 | UL 508
Connecting Capacity Input Circuit UL/CSA
Flexible with Ferrule 28-18 AWG | Flexible 28-18 AWG | Rigid 28-16 AWG
Connecting Capacity Output Circuit UL/CSA
Flexible with Ferrule 28-18 AWG | Flexible 28-18 AWG | Rigid 28-16 AWG
Ambient Air Temperature
Operation -40 ... +60 °C | Storage -40 ... +60 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
RoHS Declaration of conformity for Power Supplies
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
cUL Certificate
cUL508_E174460
Declaration of Conformity - CE
EU Declaration of conformity - CP-B Buffer modules
Declaration of Conformity - UKCA
UK Declaration of conformity - CP-B Buffer modules
UL Certificate
UL Certificate (UL 508) - CP-C, CP-D, CP-E, CP-S, and CP-T range power supply units, CP-ASI power supply units and DC/DC converter, CP-B range buffer modules and extension module, CC-E and CC-U range analog signal converters
Object Classification Code
C
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
E-Number (Finland)
2712387
E-Number (Norway)
6609480
The 24 V DC input and 24 V DC output with a 3 A rating delivers a predictable hold-up solution, reducing unplanned outages and safeguarding critical control logic. This translates to measurable business benefits like improved line uptime, stable PLC performance, and lower risk of data loss during transient events. The CP-B buffer module’s energy storage of 1000 Ws enables longer hold-up times for essential loads, supporting safe shutdown sequences and orderly process stabilization in automation cabinets. Its IP20 protection, flexible connection options (0.08 to 1.5 mm² wire range), and DIN rail mounting (TH35-15 or TH35-7.5) simplify installation and maintenance, reducing commissioning time and spare part needs. Industry-grade standards ensure compatibility with CAN/CSA, IEC 61000 series, and UL 508 environments, addressing common compliance concerns. In practice, engineers gain a compact, scalable solution that integrates with existing 24 V automation ecosystems, improving overall system resilience and return on investment.
Get a Quick Quote for a ABB 1SVR427060R0300
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR427060R0300?
Enquire Now
FAQs
Install on TH35-15 or TH35-7.5 DIN rails per ABB instructions, ensuring secure mechanical mounting and proper clearance. Use flexible ferrule or rigid wire 0.08–1.5 mm² on input and output terminals, tighten to recommended torque, and observe IP20 protection when panel doors are closed.
It delivers 24 V DC hold-up with 1000 Ws energy storage, supports operation from -40 to +60 °C, and mounts on standard DIN rails, enabling compact, robust integration in control cabinets while meeting industrial standards such as UL 508 and EN/IEC noise immunity requirements.
Yes. The module carries UL 508 certification and CE/UKCA declarations, aligning with US/Canada safety requirements and European market conformity for reliable deployment in mixed regulatory environments.
Typical use cases include PLC hold-up during short power dips, safe machine shutdown sequencing, and interference-free control of equipment in automation cells, workstations, and distributed control systems that rely on stable 24 V power to preserve process data.
With a compact form factor and solid-state energy storage, maintenance typically centers on ensuring proper terminal connections, verifying DIN rail integrity, and periodic inspection of the enclosure for dust ingress. Benefits include reduced downtime, longer equipment lifecycle, and lower risk of unscheduled outages.
