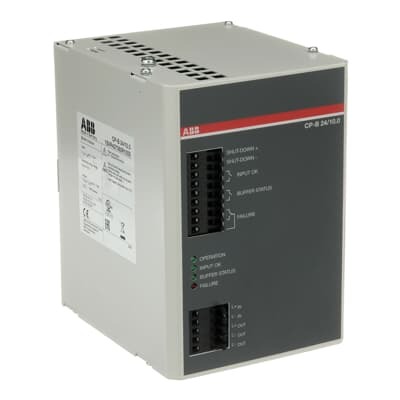

ABB 1SVR427060R1000 Buffer Module - cUL508_E174460
Part Number: 1SVR427060R1000
Quick Summary
The ABB 1SVR427060R1000 Buffer Module is a 24 V DC energy storage solution for PLC power stability. Voltage dips during startup or heavy loads cause downtime and unreliable automation. It carries cUL 508 listing, CE and UKCA declarations, and a robust IP20 housing for indoor installations. Designed for seamless DC power integration, it reduces waste and extends cabinet life, while ultra-capacitor energy storage delivers rapid transient protection and higher uptime. Ideal for servo drives, PLCs, and HMI panels in automation lines. With 24/10.0 specifications, it provides 240 W output and 10 A for reliable current support. Its compact 116 x 168 x 151 mm footprint fits standard DIN rails.
Product Information
Extended Description
1SVR427060R1000 ABB: CP-B 24/10.0 Buffer module 24 V / 10 A, energy storage 10000 Ws
Minimum Order Quantity
1 piece
Customs Tariff Number
85044083
Data Sheet, Technical Information
Data sheet - CP-B 24/10.0 Buffer module, ultra-capacitor based
Instructions and Manuals
Instruction Sheet / Manual - CP-B 24/10.0 Buffer module
Product Net Width
116 mm
Product Net Height
168 mm
Product Net Depth / Length
151 mm
Product Net Weight
2.1 kg
Package Level 1 Width
210 mm
Package Level 1 Depth / Length
260 mm
Package Level 1 Height
175 mm
Package Level 1 Gross Weight
2.5 kg
Package Level 1 EAN
4016779782593
Package Level 1 Units
box 1 piece
Function
Buffer module
Number of Phases
1
Input Voltage (Uin)
24 V DC
Rated Frequency (f)
DC
Output Power
240 W
Output Voltage (Uout)
24 V DC
Output Current
10 A
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.08 ... 1.5 mm² | Flexible 0.08 ... 1.5 mm² | Rigid 0.08 ... 4.0 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 0.08 ... 1.5 mm² | Flexible 0.08 ... 1.5 mm² | Rigid 0.08 ... 4.0 mm²
Wire Stripping Length
Input Circuit 6 mm | Output Circuit 6 mm
Minimum Mounting Distance
Other Device Same Type, Vertical 40 mm
Mounting Position
1
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.107.1 | IEC/EN 63000 | EN 55011 | IEC/EN 61000-6-2 | IEC/EN 61000-6-4 | IEC/EN 62040-2 | UL 508 | IEC/EN 61010-1
Connecting Capacity Input Circuit UL/CSA
Flexible with Ferrule 28-16 AWG | Flexible 28-16 AWG | Rigid 28-12 AWG
Connecting Capacity Output Circuit UL/CSA
Flexible with Ferrule 28-16 AWG | Flexible 28-16 AWG | Rigid 28-12 AWG
Ambient Air Temperature
Operation -40 ... +60 °C | Storage -40 ... +60 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
RoHS Declaration of conformity for Power Supplies
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
cUL Certificate
cUL508_E174460
Declaration of Conformity - CE
EU Declaration of conformity - CP-B Buffer modules
Declaration of Conformity - UKCA
UK Declaration of conformity - CP-B Buffer modules
UL Certificate
UL Certificate (UL 508) - CP-C, CP-D, CP-E, CP-S, and CP-T range power supply units, CP-ASI power supply units and DC/DC converter, CP-B range buffer modules and extension module, CC-E and CC-U range analog signal converters
Object Classification Code
C
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
E-Number (Finland)
2712388
E-Number (Norway)
6609481
The 24 V DC input and 24 V DC output with 10 A capability deliver a stable DC rail during load changes, reducing controller resets and machining interruptions. This feature translates to measurable uptime gains on production lines and lower maintenance costs for drives and input modules. In practice, you can deploy this module to back up PLC power rails, servo drives, and high-precision automation panels, ensuring smooth operation during transient events while maintaining regulatory compliance. The ultra-capacitor energy storage bank stores up to 10000 Ws, enabling rapid energy release to support short-term surges without oversizing the main power supply. This improves response time to transient disturbances and protects critical loads from voltage sag, translating into fewer fault trips and longer equipment life in robotics and packaging lines. IP20 housing and DIN-rail mounting provide safe, convenient installation in standard control panels, reducing enclosure footprint and easing field retrofit. The device supports flexible wiring options—input and output circuits accept ferrule or rigid conductors and offer clear stripping guidance—simplifying panel wiring and reducing installation time. Compliance with CAN/CSA, IEC/EN, and UL/CSA standards reduces regulatory risk for equipment in North America and Europe, while RoHS and REACH declarations reassure customers about material integrity. Overall, these attributes help manufacturers improve efficiency, reduce total cost of ownership, and accelerate project timelines when upgrading power protection in automated systems.
Get a Quick Quote for a ABB 1SVR427060R1000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR427060R1000?
Enquire Now
FAQs
This buffer module is designed for DIN-rail mounting (TH35-15 or TH35-7.5) with IP20 protection, making it suitable for standard control cabinets in factory automation. It supports flexible wiring for input and output circuits and fits compactly in crowded panels. The module’s dimensions and mounting options simplify retrofits in existing systems while maintaining safety and EMC compatibility.
Key specs include 24 V DC input, 24 V DC output, 10 A output current, 240 W rated power, and 10000 Ws energy storage. This enables stable DC rails during transient loads, reducing voltage sags that can cause controller faults. The device is designed for single-phase operation and supports UL/CSA, CE, and UKCA compliance, ensuring regulatory alignment for global deployments.
Yes. It carries cUL 508 listing, CE and UKCA declarations, and UL certification as part of the CP-B range. Standards coverage also includes EN/IEC 61000-6-2 and 61000-6-4 for immunity and emissions, along with RoHS and REACH declarations. This combination minimizes compliance risk in mixed North American and European deployments.
It is commonly used to stabilize DC power for PLCs, servo drives, HMI panels, and other automation components that require a reliable DC rail. Ideal for manufacturing lines with frequent load transients, it protects critical equipment, reduces nuisance faults, and supports smoother start-up sequences in packaging, material handling, and robotics applications.
The energy storage capability reduces cycling stress on primary power supplies, lowering wear and replacement costs. Its rapid response to voltage transients minimizes downtime and fault trips, improving overall equipment availability. With compact form factor and DIN-rail mounting, installation and future upgrades are straightforward, accelerating time-to-value in capital projects.
