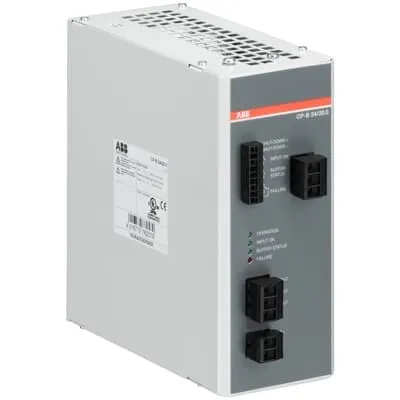

ABB 1SVR427060R2000 Buffer Module - UL/CE Certified
Part Number: 1SVR427060R2000
Quick Summary
ABB 1SVR427060R2000 Buffer Module is a compact DC energy storage unit for industrial control systems. Control panels often suffer voltage dips during peak loads, triggering downtime and reduced throughput. The module carries CE and UKCA declarations, UL 508 certification, and an IP20 housing rating, ensuring safe, compliant operation in machine rooms and control cabinets. Built around ultracapacitor energy storage, it accepts a 24 V DC input and delivers 24 V DC output at up to 20 A, enabling fast power recovery and extended uptime for essential equipment. This solution supports high-availability applications in machining, material handling, and process automation, delivering measurable improvements in reliability and total cost of ownership.
Product Information
Extended Description
1SVR427060R2000 ABB: CP-B 24/20.0 Buffer module 24 V / 20 A, energy storage 8000 Ws
Minimum Order Quantity
1 piece
Customs Tariff Number
85044083
Data Sheet, Technical Information
Data sheet - CP-B 24/20.0 Buffer module, ultra-capacitor based
Instructions and Manuals
Instruction Sheet / Manual - CP-B 24/20.0 Buffer module
Product Net Width
84 mm
Product Net Height
198 mm
Product Net Depth / Length
216 mm
Product Net Weight
2.2 kg
Package Level 1 Width
320 mm
Package Level 1 Depth / Length
335 mm
Package Level 1 Height
150 mm
Package Level 1 Gross Weight
3 kg
Package Level 1 EAN
4016779782579
Package Level 1 Units
box 1 piece
Function
Buffer module
Number of Phases
1
Input Voltage (Uin)
24 V DC
Rated Frequency (f)
DC
Output Power
480 W
Output Voltage (Uout)
24 V DC
Output Current
20 A
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Flexible with Ferrule 0.2 ... 4 mm² | Flexible 0.2 ... 4.0 mm² | Rigid 0.2 ... 6 mm²
Connecting Capacity Output Circuit
Flexible with Ferrule 0.2 ... 4 mm² | Flexible 0.2 ... 4.0 mm² | Rigid 0.2 ... 6 mm²
Wire Stripping Length
Input Circuit 7 mm | Output Circuit 7 mm
Minimum Mounting Distance
Other Device Same Type, Vertical 80 mm
Mounting Position
1
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.107.1 | IEC/EN 63000 | EN 55011 | IEC/EN 61000-6-2 | IEC/EN 61000-6-4 | IEC/EN 62040-2 | UL 508
Connecting Capacity Input Circuit UL/CSA
Flexible with Ferrule 24-12 AWG | Flexible 24-12 AWG | Rigid 24-10 AWG
Connecting Capacity Output Circuit UL/CSA
Flexible with Ferrule 24-12 AWG | Flexible 24-12 AWG | Rigid 24-10 AWG
Ambient Air Temperature
Operation -40 ... +60 °C | Storage -40 ... +60 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Power Supplies
RoHS Information
RoHS Declaration of conformity for Power Supplies
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
cUL Certificate
cUL508_E174460
Declaration of Conformity - CE
EU Declaration of conformity - CP-B Buffer modules
Declaration of Conformity - UKCA
UK Declaration of conformity - CP-B Buffer modules
UL Certificate
UL Certificate (UL 508) - CP-C, CP-D, CP-E, CP-S, and CP-T range power supply units, CP-ASI power supply units and DC/DC converter, CP-B range buffer modules and extension module, CC-E and CC-U range analog signal converters
Object Classification Code
C
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
E-Number (Finland)
2712389
E-Number (Norway)
6609482
Feature → Business Impact → Application: Ultracapacitor energy storage (8000 Ws) provides rapid transient support, reducing voltage dips and extending uptime for critical loads like servo drives and CNCs, improving throughput and reducing unplanned downtime in manufacturing lines. Feature → Business Impact → Application: 24 V DC input/output with 20 A maximum output (480 W) supports peak currents during motor starts and load transients, smoothing supply rails and protecting controllers in conveyors and packaging lines. Feature → Business Impact → Application: Compact 84 × 198 × 216 mm footprint and 2.2 kg weight allow easy DIN-rail integration in existing panels, lowering enclosure redesign costs and enabling rapid deployment in OEM machines. Feature → Business Impact → Application: IP20 housing and pollution degree 2 operation enable safe cabinet mounting in standard indoor environments, reducing risk and maintenance while meeting common industry practices. Feature → Business Impact → Application: CE, UKCA, UL 508 certifications with RoHS/REACH/WEEE compliance provide global procurement confidence, simplifying cross-border sourcing for OEMs and integrators working on multi-region projects. Feature → Business Impact → Application: DIN-rail mounting compatibility with TH35-15 or TH35-7.5 Rails streamlines installation in new builds and retrofits, minimizing wiring errors and installation time.
Get a Quick Quote for a ABB 1SVR427060R2000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR427060R2000?
Enquire Now
FAQs
Install on TH35 DIN rails (TH35-15 or TH35-7.5) inside a compliant control cabinet. Mount the unit vertically with input and output terminals rated for 0.2–6 mm2. Ensure IP20 protection is maintained and allow the minimum mounting distance from other devices. Connect 24 V DC supply and load wiring per the data sheet to ensure safe operation.
Inputs: 24 V DC; Outputs: 24 V DC up to 20 A (480 W); Energy storage: 8000 Ws; Phase: 1; Operating range: -40 to +60 °C; Mounting: DIN rail TH35-15/TH35-7.5; Protection: IP20; Wire capacity: 0.2–6 mm2; Ideal for fast transient support and hold-up during power events.
Yes. The module carries CE and UKCA declarations and UL 508 certification, along with cUL recognition, RoHS and REACH compliance, and WEEE B2B classification. These certifications support global deployment and regulatory alignment for manufacturers and integrators across regions.
Applications include CNC machines, servo-driven conveyors, robotic cells, and other critical automation where rapid voltage recovery reduces downtime. The 8000 Ws energy reserve and 24 V–24 V power path help protect controllers and drives during transient dips, improving overall line throughput and machine availability.
Ultracapacitor-based modules offer high cycle life with minimal maintenance. Regular visual inspections, terminal torque verification, and periodic firmware or documentation reviews are advised. The module is designed for long service life in harsh environments, but proper disposal of energy storage components should follow local regulations at end-of-life.
