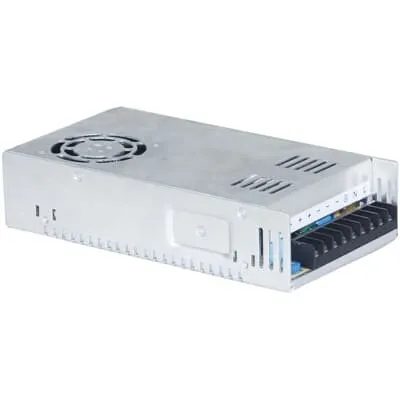

ABB 1SVR427091R0060 Power Supply - 250W, 24V DC, CE
Part Number: 1SVR427091R0060
Quick Summary
The ABB CP-PX 24/10.5 power supply is a reliable 24 V DC source designed for industrial automation and control panels. It addresses common downtime caused by wide input voltage swings and mismatched supplies by offering a single, robust solution for global deployments. The unit carries CE conformity with EMC and safety standards, RoHS compliance, and EN/IEC-related certifications, ensuring regulatory alignment in diverse markets. Its parallel-operation capability, optional redundancy accessory, and compact footprint deliver business value by reducing wiring complexity, improving uptime, and simplifying panel designs. For engineers and procurement teams, this translates into lower lifecycle costs and faster project commissioning while maintaining stringent safety and performance expectations.
Product Information
Extended Description
1SVR427091R0060 ABB: The CP-PX 24/10.5 is a power supply from the CP-PX range. The primary switch mode power supply offers a wide range input of 90-132/180-264 V AC, rated input voltage is 115/230 V AC, selectable by a switch. The rated output power is 250 W, rated output current is 10.5 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 21.6 to 26.4 V DC. The output characteristic is hiccup-mode. The power supply allows parallel operation to enable redundancy. A redundancy unit is available as accessory.
Minimum Order Quantity
1 piece
Customs Tariff Number
85044095
Data Sheet, Technical Information
Data sheet (.PDF) [ZH] CP-PX 24/10.5, CP-PX 24/14.6
Instructions and Manuals
Instruction (.PDF) [ZH] CP-PX 24/10.5 & CP-PX 24/14.6
Product Net Width
50 mm
Product Net Height
115 mm
Product Net Depth / Length
215 mm
Product Net Weight
0.9 kg
Package Level 1 Width
235 mm
Package Level 1 Depth / Length
55 mm
Package Level 1 Height
120 mm
Package Level 1 Gross Weight
0.95 kg
Package Level 1 EAN
4016779010863
Package Level 1 Units
box 1 piece
Function
Switch mode power supply
Number of Phases
1
Rated Input Voltage (UIN)
115 / 230 V AC
Input Voltage (Uin)
90 ... 132 V AC | 180 ... 264 V AC
Hold-up Time
(230 V AC) min. 20 ms
Rated Frequency (f)
50 / 60 Hz
Rated Frequency Limits
47 ... 63 Hz
Characteristic of Output
U/I characteristic curve
Rated Output Power
250 W
Output Power
250 W
Rated Output Voltage
24 V DC
Output Voltage (Uout)
24 V DC
Rated Output Current
-20 °C ... +50 °C 10.5 A
Output Current
10.5 A
Output Current Maximum (Iout)
10.5 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit / Output Circuit 1.5 kV | Input Circuit / PE 1.5 kV
Degree of Protection
Housing IP20
Pollution Degree
2
Connecting Capacity Input Circuit
Rigid 0.3 ... 4 mm²
Connecting Capacity Output Circuit
Rigid 0.3 ... 4 mm²
Tightening Torque
Input Circuit 1.2 N·m | Output Circuit 1.2 N·m
Wire Stripping Length
Input Circuit 10 mm | Output Circuit 10 mm
Minimum Mounting Distance
Other Device Same Type, Horizontal 25 mm | Other Device Same Type, Vertical 25 mm
Mounting on DIN Rail
No
Standards
IEC/EN 63000 | EN 55024 | EN 55032 | IEC 60950-1
Ambient Air Temperature
Operation -25 ... +60 °C | Storage -40 ... +85 °C
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of conformity - CP-PX Power supply units
RoHS Status
Following EU Directive 2011/65/EU
WEEE Category
Product Not in WEEE Scope
Declaration of Conformity - CE
EU Declaration of conformity - CP-PX Power supply units
Object Classification Code
T
ETIM 7
EC002540 - DC-power supply
ETIM 8
EC002540 - DC-power supply
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
The CP-PX 24/10.5 is a one-phase, switch-mode power supply that accepts a broad input range of 90-132 V AC and 180-264 V AC, with a rated input of 115/230 V AC, enabling seamless operation across regions and installations without multiple inventory variants. This flexibility directly translates to lower regional spares and streamlined procurement for multinational facilities. Its 24 V DC output delivers up to 10.5 A (250 W), with an adjustable range from 21.6 to 26.4 V DC to match DC bus requirements for PLCs, drives, and peripheral sensors, reducing the need for additional regulation hardware and edge-case rewrites. The hiccup-mode protection helps limit fault currents during short circuits, minimizing device stress and preventing cascading outages in busy control panels. The option to run in parallel with a redundancy unit enhances uptime for mission-critical applications such as lines, presses, and packaging systems, where unplanned downtime is costly. Built to meet IEC/EN and CE standards, it provides solid EMC and safety performance for factory floors, while RoHS ensures responsible material composition. Its compact form factor (50 mm wide, 115 mm high, 215 mm deep) and 0.9 kg weight simplify installation, cabling, and cabinet layout, enabling denser, cleaner control rooms. The IP20-rated housing offers basic protection from solid objects, supporting installation in typical indoor industrial environments. For installers, the device is user-friendly with straightforward wiring for input and output (0.3-4 mm² cables) and a comfortable tightening torque of 1.2 N·m for both circuits, helping ensure durable connections over time. Overall, the CP-PX 24/10.5 delivers predictable performance, easier compliance, and tangible operational efficiency gains in automation systems, PLC racks, and control cabinets.
Get a Quick Quote for a ABB 1SVR427091R0060
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR427091R0060?
Enquire Now
FAQs
The CP-PX 24/10.5 is designed for panel mounting with a compact 50x115x215 mm footprint and a weight of 0.9 kg. Input and output cables should use rigid 0.3–4 mm² conductors, tightened to 1.2 N·m. Maintain a minimum 25 mm clearance to other devices, and note that DIN rail mounting is not supported to ensure proper ventilation and compliance with IP20 housing guidelines.
Key specs include a wide input range of 90–132 V AC and 180–264 V AC with a rated input of 115/230 V AC, 50/60 Hz, and a 24 V DC output capable of 10.5 A (250 W). Output voltage is adjustable from 21.6 to 26.4 V DC, with a U/I characteristic curve and hiccup-mode protection for overload events.
Yes. It provides a stable 24 V DC supply for PLCs, sensors, and drives, with a wide operating temperature range of -25 to +60 °C and IP20 protection. Its parallel operation option supports redundancy, which is ideal for critical processes in manufacturing and packaging lines, reducing risk of unexpected downtime.
The unit carries CE conformity with EU DoC and EMC safety compliance, RoHS status, and EN/IEC standards including EN 55024 and EN 55032. It adheres to IEC 60950-1 safety requirements, supporting compliant integration into regulated industrial environments and helping with customer audits.
Redundancy via an optional accessory allows parallel operation, reducing unplanned downtime for critical lines and machines. With a compact footprint and straightforward wiring, field maintenance is minimized, resulting in lower lifecycle costs, faster mean time to repair, and greater system reliability across automation racks and control cabinets.
