ABB 1SVR430029R0100 ADP.01 Adapter - CE/UKCA
Part Number: 1SVR430029R0100
Quick Summary
ABB 1SVR430029R0100 ADP.01 Adapter for screw mounting enables panel or wall mounting of ABB S housings. Engineers often contend with limited mounting flexibility in compact control spaces, which can slow commissioning and complicate wiring. This accessory delivers CE and UKCA declarations, RoHS compliance, and REACH information to meet regulatory demands while simplifying procurement. With a small footprint and clear documentation, it supports faster design-in and consistent installation across projects. The ADP.01 reduces rework and helps maintain robust, serviceable enclosures in demanding environments, supporting reliable operation and lower total cost of ownership for panel-mounted control systems.
Product Information
Extended Description

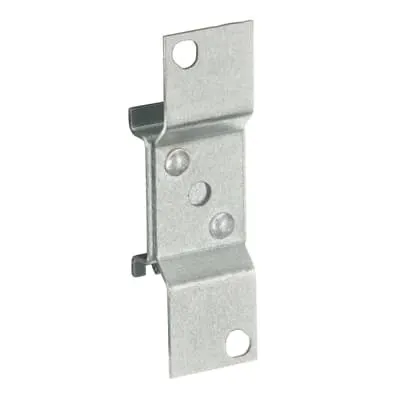

1SVR430029R0100 ABB: The ADP.01 adapter for screw mounting is an accessory. The adapter allows the screw mounting of a S housing on panel or wall.
EAN
4013614346774
Minimum Order Quantity
1 piece
Customs Tariff Number
73269098
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Measuring and Monitoring Relays
Instructions and Manuals
2CDC110004C0209
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
20 mm
Product Net Height
70 mm
Product Net Depth / Length
11.5 mm
Product Net Weight
0.018 kg
Function
11 Accessory
Sub-Function
none
Time Range
none
Output
none
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
REACh Info for Electronic Relays and Controls
Declaration of Conformity - CE
EU Declaration of Conformity - ADP.xx ; MAR.xx ; COV.xx ; OPR.01 Accessory
Declaration of Conformity - UKCA
UK Declaration of Conformity - ADP.xx ; MAR.xx ; COV.xx ; OPR.01 Accessory
Package Level 1 Units
bag 1 piece
Package Level 1 Width
21 mm
Package Level 1 Depth / Length
12 mm
Package Level 1 Height
71 mm
Package Level 1 Gross Weight
0.021 kg
Package Level 1 EAN
4013614346774
ETIM 7
EC002498 - Accessories for low-voltage switch technology
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.0 : 27371392
UNSPSC
39122221
E-Number (Finland)
2712876
E-Number (Norway)
4187752
The ADP.01 adapter is purpose-built to enable screw mounting of ABB S housing on panels or walls, delivering a compact 20 mm wide, 70 mm high, and 11.5 mm deep footprint that minimizes panel cutouts and wiring congestion. This translates to measurable space savings and cleaner installations in control cabinets and enclosures, with a lighter assembly that speeds commissioning. It supports 22.5 mm mounting modules, allowing technicians to standardize mounting approaches across multiple relays and controls, reducing training time and error rates in the field. As an ABB accessory, it integrates seamlessly with existing ABB components, improving reliability and interchangeability for service and maintenance. The adapter ships with CAD drawings and product data sheets, enabling precise layout planning and rapid BOM creation. Compliance and traceability are reinforced through CMRT, REACH, and RoHS declarations, easing supplier audits and regulatory reporting. ETIM and eClass classifications further simplify online cataloging and integration into procurement workflows. Overall, the ADP.01 delivers installation efficiency, reduced lifecycle costs, and improved consistency for low-voltage switch technology environments.
Get a Quick Quote for a ABB 1SVR430029R0100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR430029R0100?
Enquire Now
FAQs
The ADP.01 adapter is designed to enable screw mounting of ABB S housings on panels or walls, compatible with 22.5 mm modular devices to standardize mounting across ABB manifolds and relays.
Product Net Width is 20 mm, Net Height 70 mm, Net Depth 11.5 mm, and Net Weight 0.018 kg, with packaging in a 1 piece unit per bag as indicated by the data sheet.
The ADP.01 carries CE and UKCA declarations, RoHS compliance, REACH information, and CMRT data, supporting regulatory compliance and responsible sourcing across regions.
Datasheets and CAD drawings are available through ABB documentation references: Data Sheet and CAD Dimensional Drawing sections, plus Information for 2D/3D CAD formats to simplify design-in.
Minimum Order Quantity is 1 piece, enabling flexible stocking and incremental deployment for small or large projects.
