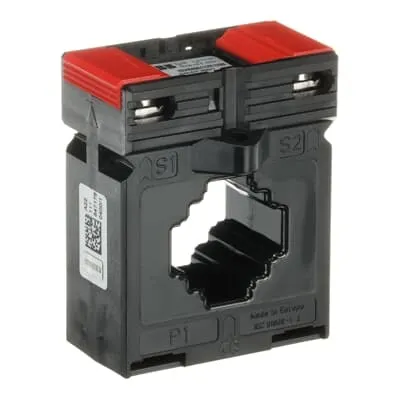

ABB 1SVR450117R1200 Current Transformer - 5VA Class 1
Part Number: 1SVR450117R1200
Quick Summary
ABB CM-CT 400/1 current transformer delivers precise measurement for protection relays and metering in switchgear and motor control centers. Engineers often struggle to source a compact, reliable CT that pairs high accuracy with easy installation and scalable DIN-rail mounting. This device meets IEC/EN 61869-1 and IEC/EN 61869-2 standards alongside IEC/EN 63000 for safety declarations, and carries CE and UKCA declarations for European markets. With a small footprint of 61 mm wide, 78.5 mm high, and 48 mm deep, it minimizes panel intrusion while supporting a 400 A primary and 1 A secondary at a 5 VA burden. The included foot angle, insulating protective cap, and bar-fastening screws simplify mounting, while an optional snap-on DIN-rail accessory accelerates installation in new or retrofit builds.
Product Information
Extended Description
1SVR450117R1200 ABB: The CM-CT 400/1 is a plug-in current transformer from the CM-CT range. The current transformer has a rated primary current of 400 A and a secondary rated current of 1 A. The burden of the current transformer is 5 VA and its precision is according to class 1. The CM-CT 400/1 will be delivered with foot angle, insulating protective cap and bar fastening screws. A snap-on mounting for DIN rail is avaiable as accessory.
EAN
4013614376894
Minimum Order Quantity
1 piece
Customs Tariff Number
85043129
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Measuring and Monitoring Relays
Instructions and Manuals
Instructions - CM-CT Current transformers
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
61 mm
Product Net Height
78.5 mm
Product Net Depth / Length
48 mm
Product Net Weight
0.27 kg
Function
Current transformer
Standards
IEC/EN 63000 | IEC/EN 61869-1 | IEC/EN 61869-2
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
REACh Info for Electronic Relays and Controls
Declaration of Conformity - CE
EU Declaration of Conformity - CM-CT Current transformers
Declaration of Conformity - UKCA
UK Declaration of Conformity - CM-CT Current transformers
Package Level 1 Units
box 1 piece
Package Level 1 Width
62 mm
Package Level 1 Depth / Length
90 mm
Package Level 1 Height
52 mm
Package Level 1 Gross Weight
0.275 kg
Package Level 1 EAN
4013614376894
Object Classification Code
T
ETIM 7
EC002048 - Current transformer
ETIM 8
EC002048 - Current transformer
ETIM 9
EC002048 - Current transformer
eClass
V11.0 : 27210902
UNSPSC
39121032
E-Number (Norway)
4187316
The CM-CT 400/1 delivers a 400 A primary, 1 A secondary with a 5 VA burden and Class 1 accuracy, enabling protection relays and metering systems to calculate fault currents with confidence. This precision reduces nuisance trips and improves protection scheme reliability, translating to lower maintenance costs and higher equipment uptime. Its plug-in design with a foot angle, insulating protective cap, and bar-fastening screws simplifies field installation, while the optional DIN-rail snap-on mounting accelerates retrofits and new builds in dense panels. Compliance with IEC/EN 61869-1/2 and IEC/EN 63000, plus CE and UKCA marks, ensures regulatory readiness across European projects, streamlining procurement and audits. The compact footprint (61 mm x 78.5 mm x 48 mm) and light 0.27 kg weight fit modern switchgear without sacrificing performance, making it ideal for MCCs and compact control panels. Documentation and compatibility are enhanced by available CAD files, data sheets, and packaging clarity for OEMs and integrators.
Get a Quick Quote for a ABB 1SVR450117R1200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR450117R1200?
Enquire Now
FAQs
Installers benefit from the CM-CT 400/1’s plug-in design, foot angle, insulating protective cap, and bar fastening screws, which simplify orientation and secure mounting. For retrofits, the optional snap-on DIN-rail accessory reduces panel rewiring time and enables rapid integration with existing protection relays and metering modules. Ensure panel clearance and verify DIN-rail compatibility with your enclosure before mounting.
Key specs include a primary rating of 400 A, a secondary rating of 1 A, a burden of 5 VA, and accuracy class 1. Standards compliance encompasses IEC/EN 61869-1 and 61869-2, plus IEC/EN 63000 safety declarations. Dimensions are 61 mm width, 78.5 mm height, 48 mm depth, and weight around 0.27 kg, suitable for compact control panels.
Yes. The CM-CT 400/1 is designed for plug-in installation with an optional snap-on DIN-rail mounting accessory and a DIN-friendly footprint. The kit simplifies retrofits in existing MCCs and switchgear, enabling fast commissioning and reduced field wiring. Its compact size helps conserve panel space without compromising measurement accuracy or reliability.
The transformer complies with IEC/EN 61869-1 and 61869-2 for current transformers, IEC/EN 63000 for safety declarations, and carries CE and UKCA markings for European deployment. These certifications support regulatory alignment, ease procurement across regions, and help with compliance documentation during audits and OEM handovers.
The CM-CT 400/1 offers stable, accurate current measurements that improve protection settings and reduce mistripping, leading to lower maintenance costs and higher uptime. Its compact form factor minimizes panel redesign, while DIN-rail compatibility and clear documentation shorten commissioning time. Over the life cycle, you can expect improved reliability in MCCs and switchgear with fewer field service interventions.
