ABB 1SVR450117R5300 Current Transformer - IEC 61869-2
Part Number: 1SVR450117R5300
Quick Summary
ABB 1SVR450117R5300 current transformer enables precise current measurement in electrical distribution panels and control cabinets. Designers and technicians often face installation delays, limited space, and the challenge of maintaining accuracy under varying load conditions. This CM-CT current transformer meets IEC/EN 61869-1 and 61869-2, plus CE and UKCA declarations, ensuring compliant integration in global projects. With a 500 A primary and 5 A secondary, a 5 VA burden, and a compact plug-in footprint, it delivers reliable sensing while minimizing panel real estate. The product is compatible with DIN rail mounting accessories, reducing installation time and improving maintainability in modern power management and protection schemes.
Product Information
Extended Description

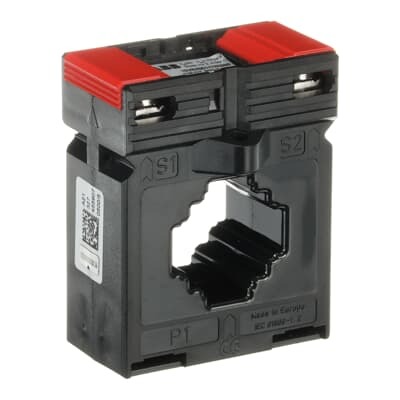

1SVR450117R5300 ABB: The CM-CT 500/5 is a plug-in current transformer from the CM-CT range. The current transformer has a rated primary current of 500 A and a secondary rated current of 5 A. The burden of the current transformer is 5 VA and its precision is according to class 1. The CM-CT 500/5 will be delivered with foot angle, insulating protective cap and bar fastening screws. A snap-on mounting for DIN rail is avaiable as accessory.
EAN
4013614376948
Minimum Order Quantity
1 piece
Customs Tariff Number
85043129
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Measuring and Monitoring Relays
Instructions and Manuals
Instructions - CM-CT Current transformers
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
61 mm
Product Net Height
78.5 mm
Product Net Depth / Length
48 mm
Product Net Weight
0.208 kg
Function
Current transformer
Standards
IEC/EN 63000 | IEC/EN 61869-1 | IEC/EN 61869-2
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
REACh Info for Electronic Relays and Controls
Declaration of Conformity - CE
EU Declaration of Conformity - CM-CT Current transformers
Declaration of Conformity - UKCA
UK Declaration of Conformity - CM-CT Current transformers
Package Level 1 Units
box 1 piece
Package Level 1 Width
62 mm
Package Level 1 Depth / Length
90 mm
Package Level 1 Height
52 mm
Package Level 1 Gross Weight
0.213 kg
Package Level 1 EAN
4013614376948
Object Classification Code
T
ETIM 7
EC002048 - Current transformer
ETIM 8
EC002048 - Current transformer
ETIM 9
EC002048 - Current transformer
eClass
V11.0 : 27210902
UNSPSC
39121032
E-Number (Norway)
4187326
Feature: Plug-in CM-CT current transformer with foot angle, insulating protective cap and bar fastening screws enables fast, safe panel installations. Benefit: Reduces commissioning time and improves safety during maintenance. Application: Electrical switchgear and panel boards where rapid retrofit or replacement is required. Measurable outcome: lower labor costs and minimized downtime in power distribution. Feature: Primary 500 A, secondary 5 A, 5 VA burden with class 1 accuracy. Benefit: High-precision sensing across typical distribution and protection circuits. Application: Monitoring relays and protection relays in control cabinets. Measurable outcome: improved monitoring accuracy and protection reliability. Feature: Compact dimensions (61 mm wide, 78.5 mm high, 48 mm deep) and lightweight design. Benefit: Easy fit in tight enclosures and reduces overall panel weight. Application: Modern control panels with space constraints. Measurable outcome: enhanced integration density and reduced material costs. Feature: DIN rail snap-on mounting option as accessory. Benefit: Flexible installation with minimal disruption and scalable configurations. Application: Retrofit projects in existing panels and modular automation architectures. Measurable outcome: faster deployment and easier future upgrades. Feature: Standards compliance IEC/EN 63000, IEC/EN 61869-1, IEC/EN 61869-2 plus RoHS and REACH declarations. Benefit: Simplified regulatory acceptance and supply chain due diligence. Application: Global deployments requiring compliant measurement devices. Measurable outcome: reduced certification risk and smoother cross-border deployments.
Get a Quick Quote for a ABB 1SVR450117R5300
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR450117R5300?
Enquire Now
FAQs
The CM-CT 500/5 is a plug-in current transformer designed for straightforward DIN-rail installation. It ships with foot angle, insulating protective cap, and bar fastening screws; a snap-on DIN-rail mounting accessory is available separately to simplify retrofits in existing cabinets.
Key specs include a 500 A primary and 5 A secondary, 5 VA burden, and class 1 accuracy. It conforms to IEC/EN 61869-1 and 61869-2, with CE and UKCA declarations for compliance in global installations.
Yes. The CM-CT 500/5 is designed for measuring in ABB CM-CT related environments, meeting ETIM EC002048 standards and supporting measuring and monitoring relays in power management applications with DIN rail compatibility.
It carries CE and UKCA declarations, IEC/EN 61869-1 and 61869-2 compliance, IEC/EN 63000, and RoHS/REACH declarations. These documents support regulatory approvals and safer cross-border deployments.
Expect improved sensing accuracy and faster installation, reducing commissioning time and maintenance costs. The 5 VA burden supports stable measurements under load, while DIN-rail mounting and compact dimensions enable higher integration density and scalable protection strategies.
