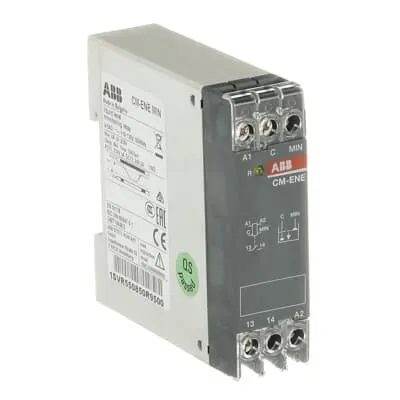

ABB 1SVR550850R9500 Liquid Level Relay - CE/UL Listed
Part Number: 1SVR550850R9500
Quick Summary
ABB CM-ENE MIN Liquid Level Relay protects pumps from dry running in water handling systems. This compact monitor is ideal where uptime is critical and unexpected pump damage must be avoided. It uses a two-electrode sensing technique with a 0-100 kΩ range and operates from 110-130 V AC, delivering 1 NO output for straightforward control. The device carries CE and UL 508 certifications, supports UKCA readiness, and is housed in IP50 for robust indoor operation, with wiring simplified by screw terminals, and TH35 DIN-rail mounting for fast integration. These features translate into safer operation and measurable cost savings across water treatment, irrigation, and process cooling applications.
Product Information
Extended Description
1SVR550850R9500 ABB: The CM-ENE MIN belongs to the CM liquid level monitoring relay range. It operates with a rated control supply voltage of 110-130 V AC and has a 1 n/o output contact. It protects pumps against dry running. The output relay works according to the open-circuit principle. The sensitivity is 0-100 kOhm fixed. The device offers screw connection terminals.
EAN
4013614348068
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Measuring and Monitoring Relays
Instructions and Manuals
Installation instructions - CM-xxE range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
22.5 mm
Product Net Height
78 mm
Product Net Depth / Length
78.5 mm
Product Net Weight
0.106 kg
Function
Draining monitoring
Sub-Function
Dry running protection
Number of Electrodes
2
Measuring Range
0 ... 100 kΩ
Rated Control Supply Voltage (Us)
110 ... 130 V AC
Rated Frequency (f)
Supply Circuit 50/60 Hz
Output
1 n/o contact
Terminal Type
Screw Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 4 A
Rated Operational Current AC-15 (Ie)
(230 V) 3 A
Rated Operational Current DC-12 (Ie)
(24 V) 4 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A
Rated Impulse Withstand Voltage (Uimp)
Measuring Circuit / Output Circuit 4 kV | Supply Circuit / Measuring Circuit 4 kV | Supply Circuit / Output Circuit 4 kV
Rated Insulation Voltage (Ui)
Measuring Circuit / Output Circuit 250 V | Supply Circuit / Measuring Circuit 250 V | Supply Circuit / Output Circuit 250 V
Degree of Protection
Housing IP50 | Terminals IP20
Short-Circuit Protective Devices
Output Circuit NO - F Type Fuses 10 A
Connecting Capacity
Flexible with Ferrule 2x 0.75 ... 1.5 mm² | Flexible 2x 1 ... 1.5 mm² | Rigid 2x 0.75 ... 1.5 mm²
Tightening Torque
0.6 ... 0.8 N·m
Wire Stripping Length
10 mm
Mounting Position
1 ... 6
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | UL 508
Maximum Operating Voltage UL/CSA
Output Circuit 300 V AC
Contact Rating UL/CSA
B300
Connecting Capacity UL/CSA
Flexible with Ferrule 2x 18-16 AWG | Flexible 2x 18-16 AWG | Rigid 2x 18-16 AWG
Tightening Torque UL/CSA
7.08 in·lb
Ambient Air Temperature
Operation -20 ... +60 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
667e80f9-dcc6-4d48-a0f8-792cb25f5614 Germany (DE)
Simplified SCIP
c6157497-950f-418b-87a7-03e1831f32e9 Bulgaria (BG) | 4396b637-cbac-43d3-beb4-a51c0081d20a France (FR) | 3d6424d4-8806-4fc7-b9ff-270d37d5ce2c Hungary (HU) | b7f5e505-e327-4a9e-9d05-cf8e68e7c544 Belgium (BE) | 1c6cd452-1138-4a61-9a8e-d0189498d8c5 Germany (DE) | a2c2ae7b-0adf-401f-a370-8297c1713a0f Czech Republic (CZ) | d384edc1-1c7e-40ac-a5e3-01d02d9bba2b Germany (DE) | f2331ec6-ecbc-460b-98ff-e5f222d45d27 Denmark (DK) | 2f6ff324-b75a-414f-9f45-e31d80dd9f05 Hungary (HU) | bb215159-b91a-4908-9f18-1de006a7da21 Poland (PL) | f72bad55-6620-44ac-8610-783d84f31ed8 Italy (IT) | 3c279a53-9305-496c-9d26-62ae442c2798 Germany (DE) | 1ea5d937-ecd0-4559-9fe9-4dc38df96611 Estonia (EE) | 023d825f-b2a3-4d5f-a718-1161ced66291 Netherlands (NL) | cc124eb7-8bb2-4e2d-9405-74d797f4f1ff Greece (GR) | e0420150-375e-41cd-9436-79411c7bca3d Sweden (SE) | 8e20c20b-8afe-4cb2-9932-61b3f7925cc8 France (FR) | e8a67dd6-a6fa-4b14-827d-98de732a9ccb Spain (ES) | fceed05d-ce01-4234-9462-7898df6ff20e Croatia (HR) | 6523b815-2c68-4303-8ae2-605f6d02a81d Norway (NO) | 630f06eb-628a-4754-8bd2-f2fb4707afd5 Portugal (PT) | 07edfdb5-fc89-4d19-bb53-51d576e83815 Sweden (SE) | 9a30dbc5-f9c2-4e75-9457-0b677b114712 Poland (PL) | 92483407-8edc-442a-99c8-b7144dc697ce Belgium (BE) | 820365c8-0139-4fb0-a9a4-cdf24360f58f Poland (PL) | 72574a5e-7a6e-4e83-ba43-f1b800681c6e Germany (DE) | c19ecd4e-8600-4fb8-82b4-eafaa8f44f26 Finland (FI)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
CB Certificate
CB_DK-8880
CCC Certificate
CCC Certificate - Measuring and Monitoring Relays CM-E range
CQC Certificate
CQC Certificate, Electronic Measuring and Monitoring Relays, CM-PFE, CM-PVE, CM-PBE, CM-MSE, CM-ENE MAX, CM-ENE MIN, Made in Bulgaria
cUL Certificate
cUL508_E140448
Declaration of Conformity - CCC
CCC Declaration of Conformity, Electronic Measuring and Monitoring Relays, CM-PFE, CM-PVE, CM-PBE, CM-MSE, CM-ENE MAX, CM-ENE MIN, Made in Bulgaria
Declaration of Conformity - CE
EU Declaration of Conformity - CM-ENE MIN, CM-ENE MAX Liquid level monitoring relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CM-ENE MIN, CM-ENE MAX Liquid level monitoring relay
UL Certificate
UL Certificate (UL 508) - CT-E, CT-S range time relays, CM and C51x range measuring and monitoring relays , C57x and C67xx range safety relays, CC-U range analog signal converters with relay output
Package Level 1 Units
box 1 piece
Package Level 1 Width
23 mm
Package Level 1 Depth / Length
82 mm
Package Level 1 Height
82 mm
Package Level 1 Gross Weight
0.118 kg
Package Level 1 EAN
4013614348068
Object Classification Code
B
ETIM 7
EC001447 - (Fill) level monitoring relay
ETIM 8
EC001447 - (Fill) level monitoring relay
ETIM 9
EC001447 - (Fill) level monitoring relay
eClass
V11.0 : 27371813
UNSPSC
39122331
E-Number (Finland)
2712848
E-Number (Norway)
4187267
E-Number (Sweden)
3860804
With a rated control supply voltage of 110-130 V AC and a single normally open output, the CM-ENE MIN fits neatly into standard pump control circuits, reducing design complexity and parts count. This compatibility translates into faster commissioning and lower errors during wiring in OEM and retrofit projects. The 0-100 kΩ measuring range provides flexible sensing for a wide variety of liquids, enabling reliable dry-run protection across water, wastewater, and process fluids. The fixed sensitivity ensures predictable triggering and consistent pump protection without adjustments in the field. Two electrodes deliver accurate level detection while the screw-terminal connection supports robust terminations in industrial enclosures. IP50 housing protects the electronics from dust ingress, while compliance with CAN/CSA, IEC/EN standards ensures safe operation in demanding environments. DIN-rail mounting options TH35-15 or TH35-7.5 and a compact footprint streamline installation inside existing control cabinets. These features translate into safer operation and measurable cost savings across water treatment, irrigation, and process cooling applications.
Get a Quick Quote for a ABB 1SVR550850R9500
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR550850R9500?
Enquire Now
FAQs
The CM-ENE MIN is designed for DIN-rail mounting TH35-15 or TH35-7.5. Install the relay by snapping it onto the rail in the control cabinet, then terminate the two electrode cables to your liquid level probes using the screw terminals. Ensure the enclosure is closed and tighten the terminal screws to the recommended torque for reliable operation.
The unit operates from 110 to 130 V AC with a single normally open (NO) output. In AC-12 terms, it supports up to 4 A at 230 V, and up to 3 A for AC-15, making it suitable for direct control of pumps and other actuator loads in typical industrial panels.
Yes. It is specifically designed for dry-running protection with two electrodes and a 0–100 kΩ measuring range. Its 1 NO contact provides a straightforward control signal to stop or start pumps, helping prevent seal damage and motor burnout in pumping systems.
The CM-ENE MIN supports CE and UL 508 certifications, with UKCA readiness. It also carries IP50 housing protection for indoor use and is compatible with CAN/CSA C22.2 No.14 and IEC/EN standards, ensuring safe operation within industrial control environments.
By preventing dry-running, the relay reduces unplanned downtime and extends pump life, lowering maintenance costs. Its screw terminals and DIN-rail mounting simplify installation and future retrofits, delivering faster commissioning and a lower total cost of ownership in municipal, industrial, and process cooling applications.
