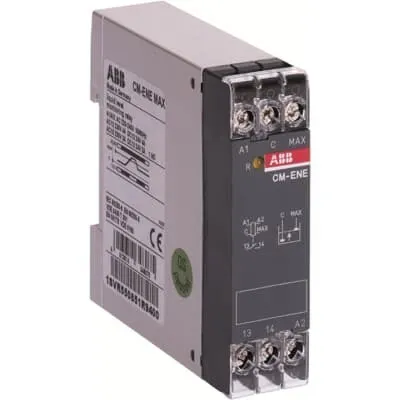

ABB 1SVR550855R9400 CM-ENE MAX Liquid Level Relay - CE/UL
Part Number: 1SVR550855R9400
Quick Summary
The ABB CM-ENE MAX Liquid Level Relay is a 24 V AC powered device that monitors conductive liquids to prevent overflow. Operators often face overflow risks, sensor drift, and unplanned downtime when level sensing fails. This device carries CE and UL 508 certifications, plus IP50 housing and UL/CSA safety approvals, helping you meet regulatory and safety requirements. With screw terminals and mounting on TH35 DIN rails, installation is straightforward in both new builds and retrofits, while the fixed 0–100 kΩ range matches most conductive liquids. The 24 V AC control supply aligns with standard control circuits, reducing wiring complexity and potential compatibility issues. In short, it combines rugged reliability with straightforward installation to support compliance, efficiency, and maintenance excellence.
Product Information
Extended Description
1SVR550855R9400 ABB: The CM-ENE MAX belongs to the CM liquid level monitoring relay range. It operates with a rated control supply voltage of 24 V AC and has a 1 n/o output contact. It monitors liquid levels of conductive fluids and protects tanks against overflow. The output relay works according to the closed-circuit principle. The sensitivity is 0-100 kOhm fixed. The device offers screw connection terminals.
EAN
4013614348099
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Measuring and Monitoring Relays
Instructions and Manuals
Installation instructions - CM-xxE range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
22.5 mm
Product Net Height
78 mm
Product Net Depth / Length
78.5 mm
Product Net Weight
0.106 kg
Function
Filling monitoring
Sub-Function
Overflow protection
Number of Electrodes
2
Measuring Range
0 ... 100 kΩ
Rated Control Supply Voltage (Us)
24 V AC
Rated Frequency (f)
Supply Circuit 50/60 Hz
Output
1 n/o contact
Terminal Type
Screw Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 4 A
Rated Operational Current AC-15 (Ie)
(230 V) 3 A
Rated Operational Current DC-12 (Ie)
(24 V) 4 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A
Rated Impulse Withstand Voltage (Uimp)
Measuring Circuit / Output Circuit 4 kV | Supply Circuit / Measuring Circuit 4 kV | Supply Circuit / Output Circuit 4 kV
Rated Insulation Voltage (Ui)
Measuring Circuit / Output Circuit 250 V | Supply Circuit / Measuring Circuit 250 V | Supply Circuit / Output Circuit 250 V
Degree of Protection
Housing IP50 | Terminals IP20
Short-Circuit Protective Devices
Output Circuit NO - F Type Fuses 10 A
Connecting Capacity
Flexible with Ferrule 2x 0.75 ... 1.5 mm² | Flexible 2x 1 ... 1.5 mm² | Rigid 2x 0.75 ... 1.5 mm²
Tightening Torque
0.6 ... 0.8 N·m
Wire Stripping Length
10 mm
Mounting Position
1 ... 6
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | UL 508
Maximum Operating Voltage UL/CSA
Output Circuit 300 V AC
Contact Rating UL/CSA
B300
Connecting Capacity UL/CSA
Flexible with Ferrule 2x 18-16 AWG | Flexible 2x 18-16 AWG | Rigid 2x 18-16 AWG
Tightening Torque UL/CSA
7.08 in·lb
Ambient Air Temperature
Operation -20 ... +60 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
df7a7df7-a3ec-429d-b9cb-42d0691c9aff Germany (DE)
Simplified SCIP
2c275e2e-db45-4a4c-8eaa-140d21521fbe Finland (FI) | 2eba3e89-6b14-468d-b01e-76cfbb0481df Poland (PL) | 3bcd618a-e453-489f-9553-0fb7f3ee248d Belgium (BE) | bd1b2a1c-a4f3-45ec-9a30-b04ec4cae04e Germany (DE) | eb782991-dcd9-4148-9b8a-57c82ab74052 France (FR) | 6d455b36-1f87-42d2-a073-52afc8421177 Belgium (BE) | a1390a09-54d5-4ccb-b282-4262d5d75695 Hungary (HU) | b4ffcb99-b679-4194-b493-e0ddc78fa2aa Bulgaria (BG) | 982f0590-1fea-4fa6-9c9c-d1b5a561edbb Poland (PL) | a628b384-6e77-4dc3-9fa3-6393c0f38123 Denmark (DK) | 4822f126-0a2f-4283-ab02-b99e0d16af55 Czech Republic (CZ) | cfc4aa6c-0cb1-4be3-8626-6dac34ecd0d0 Germany (DE) | 0e4f546a-f61b-4b42-ad2e-d62cc7bf06bf Italy (IT) | 1ae65619-72fe-4d4c-aa08-ef2cd0978a3b Germany (DE) | be072f75-3808-4f51-bc44-042d14ff0fae Sweden (SE) | 737feabc-152d-4d84-8bad-7d167d964517 Poland (PL) | a4128b97-3179-4850-a30f-e82d53707bb6 Norway (NO) | d09cbf6f-a7a7-4051-9794-ab229061449b Hungary (HU) | 5053860e-d27e-41a4-a4db-7255b5f4188a Spain (ES) | 5e6593e7-810c-4ab6-9081-60539ceeaee4 Croatia (HR) | 49484e80-6df3-47ad-b075-40c3b29898fb Sweden (SE) | 9fc1bffa-26a0-46b4-be5b-db41df6a0221 France (FR) | 61541c68-ecf4-41b2-ab91-8c43f27ab583 Netherlands (NL) | ff816bbe-20ff-40a9-b753-6ba4ab9157d5 Greece (GR) | 52613f35-d3dc-4261-b78b-0c942f4b67b9 Portugal (PT) | 18bf7405-fd2a-4fc4-ae7e-edf5925f7050 Estonia (EE) | 73a36fd5-787c-42b7-b651-ef2afa704326 Germany (DE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
CB Certificate
CB_DK-8880
CCC Certificate
CCC Certificate - Measuring and Monitoring Relays CM-E range
CQC Certificate
CQC Certificate, Electronic Measuring and Monitoring Relays, CM-PFE, CM-PVE, CM-PBE, CM-MSE, CM-ENE MAX, CM-ENE MIN, Made in Bulgaria
cUL Certificate
cUL508_E140448
Declaration of Conformity - CCC
CCC Declaration of Conformity, Electronic Measuring and Monitoring Relays, CM-PFE, CM-PVE, CM-PBE, CM-MSE, CM-ENE MAX, CM-ENE MIN, Made in Bulgaria
Declaration of Conformity - CE
EU Declaration of Conformity - CM-ENE MIN, CM-ENE MAX Liquid level monitoring relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CM-ENE MIN, CM-ENE MAX Liquid level monitoring relay
UL Certificate
UL Certificate (UL 508) - CT-E, CT-S range time relays, CM and C51x range measuring and monitoring relays , C57x and C67xx range safety relays, CC-U range analog signal converters with relay output
Package Level 1 Units
box 1 piece
Package Level 1 Width
23 mm
Package Level 1 Depth / Length
82 mm
Package Level 1 Height
82 mm
Package Level 1 Gross Weight
0.118 kg
Package Level 1 EAN
4013614348099
Object Classification Code
B
ETIM 7
EC001447 - (Fill) level monitoring relay
ETIM 8
EC001447 - (Fill) level monitoring relay
ETIM 9
EC001447 - (Fill) level monitoring relay
eClass
V11.0 : 27371813
UNSPSC
39122331
E-Number (Finland)
2712851
E-Number (Norway)
4187269
E-Number (Sweden)
3860806
24 V AC control supply aligns with standard control panels, reducing wiring complexity and commissioning time. This simplifies PLC or PLC/HMI integration and minimizes control-supply mismatches in new builds or retrofits. Business impact: faster setup, lower risk of wiring errors, and improved reliability across process lines. Application: control with pumps, valves, or alarms in tanks and processing vessels. The unit provides one normally open contact, enabling direct control of actuators and reducing interface hardware costs. This design lowers assembly time and simplifies diagnostics. Measured capacity of 0–100 kΩ supports a broad range of conductive liquids, delivering consistent trip points and reducing recalibration needs. Application: level sensing in water/wastewater, chemical processing, and food/beverage lines. With two electrodes, the sensing is robust across tank geometries, helping prevent false overflow signals in noisy environments. Installation is straightforward with screw terminals and TH35 DIN-rail mounting options, which keeps panel space and wiring tidy. Compatibility with DIN rails TH35-15 or TH35-7.5 enables quick integration into existing control cabinets. IP50 housing protects electronics from dust and incidental contact, while standardized safety and performance approvals (UL 508, CE) help ensure compliance. The device supports a wide operating temperature range, enabling deployment across diverse sites, from low-temperature facilities to high-heat production lines. These features drive improved uptime, safer operations, and clearer maintenance planning in demanding industrial environments.
