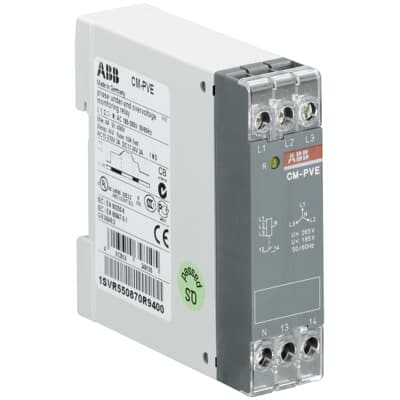

ABB CM-PVE Phase Monitoring Relay 1SVR550870R9400 - CE UL
Part Number: 1SVR550870R9400
Quick Summary
The CM-PVE phase monitoring relay protects motor circuits by detecting phase loss and voltage faults in three-phase and single-phase mains. When voltage disturbances trigger nuisance trips or uneven load sharing, production slows and maintenance costs rise. It carries CE and UKCA declarations for European markets and UL 508 certification for North American installs, with CAN/CSA compatibility aiding broader adoption. Designed for DIN rail mounting with screw terminals, it speeds wiring and simplifies retrofits in industrial automation projects. With fixed thresholds and robust protection features, it delivers reliable, predictable behavior across demanding environments. The device is compatible with single- and three-phase with neutral mains, making it versatile for mixed motor circuits. This balance of protection, simplicity, and certification helps engineers meet safety and uptime targets.
Product Information
Extended Description
1SVR550870R9400 ABB: The CM-PVE relay is from the CM three-phase monitors range. This relay operates with a rated control supply voltage / three-phase measuring voltage of 185-265 V AC and has a 1 n/o output (closed circuit principle) with contacts rated at 250 V / 4 A. The CM-PVE monitors the phase loss, overvoltage and undervoltage. The corresponding threshold values are fixed. The relay is suitable for monitoring of single- or three phase with neutral mains.
EAN
4013614348105
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Data sheet - CM-PVE Three-phase monitoring relays
Instructions and Manuals
Instruction Sheet / Manual - CM-PBE, CM-PFE, CM-PFE.2, CM-PVE Three-phase sequence monitoring relay
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
22.5 mm
Product Net Height
78 mm
Product Net Depth / Length
78.5 mm
Product Net Weight
0.069 kg
Function
Phase failure detection | Over- and undervoltage monitoring | Interrupted neutral monitoring
Sub-Function
Phase loss
Sub-Function 2
02 Over- and undervoltage (fixed)
Measuring Range
(L-L) 320 ... 460 V AC | (L-N) 185 ... 265 V AC
Time Range
500 ms start-up delay | 500 ms tripping delay
Rated Control Supply Voltage (Us)
(L-L) 320 ... 460 V AC | (L-N) 185 ... 265 V AC
Rated Frequency (f)
Supply Circuit 50/60 Hz
Output
1 n/o contact
Terminal Type
Screw Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 4 A
Rated Operational Current AC-15 (Ie)
(230 V) 3 A
Rated Operational Current DC-12 (Ie)
(24 V) 4 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit 4 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 400 V
Degree of Protection
Housing IP50 | Terminals IP20
Overvoltage Category
III
Pollution Degree
3
Short-Circuit Protective Devices
Output Circuit NC - F Type Fuses 10 A | Output Circuit NO - F Type Fuses 10 A
Connecting Capacity
Flexible with Ferrule 2x 0.75 ... 1.5 mm² | Flexible 2x 1 ... 1.5 mm² | Rigid 2x 0.75 ... 1.5 mm²
Tightening Torque
0.6 ... 0.8 N·m
Wire Stripping Length
10 mm
Mounting Position
1 ... 6
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | UL 508
Maximum Operating Voltage UL/CSA
Output Circuit 250 V AC
Contact Rating UL/CSA
B300
Connecting Capacity UL/CSA
Flexible with Ferrule 2x 18-16 AWG | Flexible 2x 18-16 AWG | Rigid 2x 18-16 AWG
Tightening Torque UL/CSA
7.08 in·lb
Pilot Duty UL/CSA
B300
Ambient Air Temperature
Operation -20 ... +60 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
CB Certificate
CB_DK-8880
CCC Certificate
CCC Certificate - Measuring and Monitoring Relays CM-E range
CQC Certificate
CQC Certificate, Electronic Measuring and Monitoring Relays, CM-PFE, CM-PVE, CM-PBE, CM-MSE, CM-ENE MAX, CM-ENE MIN, Made in Bulgaria
cUL Certificate
cUL508_E140448
Declaration of Conformity - CCC
CCC Declaration of Conformity, Electronic Measuring and Monitoring Relays, CM-PFE, CM-PVE, CM-PBE, CM-MSE, CM-ENE MAX, CM-ENE MIN, Made in Bulgaria
Declaration of Conformity - CE
EU Declaration of Conformity - CM-PBE, CM-PVE Three-phase monitoring relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CM-PBE, CM-PVE Three-phase monitoring relay
UL Certificate
UL Certificate (UL 508) - CT-E, CT-S range time relays, CM and C51x range measuring and monitoring relays , C57x and C67xx range safety relays, CC-U range analog signal converters with relay output
Package Level 1 Units
box 1 piece
Package Level 1 Width
23 mm
Package Level 1 Depth / Length
82 mm
Package Level 1 Height
82 mm
Package Level 1 Gross Weight
0.08 kg
Package Level 1 EAN
4013614348105
Object Classification Code
B
ETIM 7
EC001441 - Phase monitoring relay
ETIM 8
EC001441 - Phase monitoring relay
ETIM 9
EC001441 - Phase monitoring relay
eClass
V11.0 : 27371803
UNSPSC
39122332
E-Number (Finland)
2712601
E-Number (Norway)
4187170
E-Number (Sweden)
3860174
Feature: Measuring ranges (L-L) 320-460 VAC and (L-N) 185-265 VAC with fixed thresholds. Business Impact: Ensures stable phase condition detection, reducing unexpected shutdowns and enabling consistent motor control. Application: Ideal for single- or three-phase with neutral mains in conveyors and pumps. Feature: Output configuration of 1 normally open contact with 4 A at 230 VAC rating. Business Impact: Simplifies control wiring and allows direct drive of contactors or PLC inputs, lowering panel complexity. Application: Typical motor starters and machine control circuits. Feature: Fixed startup and tripping delays of 500 ms each. Business Impact: Prevents false trips during normal startup surges, improving machine availability. Application: Pump and fan circuits where transients are common. Feature: Protective ratings including 4 kV impulse withstand and 400 V insulation between input and output. Business Impact: Enhances reliability in environments with electrical noise and transient events. Application: Harsh manufacturing lines and power distribution boards. Feature: Durable DIN rail mounting (TH35-15/ TH35-7.5) and screw terminals. Business Impact: Speeds installation, reduces wiring errors, and supports easy retrofits. Application: Modern control panels and retrofits in industrial automation projects. Feature: Compliance and documentation suite (CE/UKCA, UL 508, RoHS, REACH, CAN/CSA). Business Impact: Streamlines procurement, audits, and regulatory alignment. Application: Suitable for regulated industries and multi-region deployments.
Get a Quick Quote for a ABB 1SVR550870R9400
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR550870R9400?
Enquire Now
FAQs
Begin by mounting the unit on a standard TH35 DIN rail, ensuring proper alignment and clearance for screw terminals. Connect the input conductors using the specified flexible ferrule or rigid 0.75-1.5 mm2 wires, tightening to 0.6-0.8 N·m. Attach the load wiring to the 1 n/o output and secure with 0.75-1.5 mm2 conductors as noted. Verify impedance and ensure supply voltage falls within (L-L) 320-460 VAC or (L-N) 185-265 VAC, then power up and test the trip/start delays. This minimizes wiring errors and accelerates commissioning in new installations or retrofits.
The CM-PVE monitors (L-L) 320-460 VAC and (L-N) 185-265 VAC with fixed thresholds for phase loss, overvoltage, and undervoltage. It provides a 1 n/o output and startup/tripping delays of 500 ms each. The device can carry 4 A at 230 VAC, with input-output insulation rated at 400 V and a 4 kV impulse withstand, suitable for typical motor control circuits.
Yes. The CM-PVE is designed for monitoring phase loss and voltage anomalies in both single-phase with neutral and three-phase systems. Its fixed thresholds and robust output make it a versatile protection relay for mixed motor circuits found in packaging lines, conveyors, and process equipment, simplifying control logic and improving reliability.
The CM-PVE carries CE and UKCA declarations for European markets and UL 508 certification for North American installations. Additional compatibility includes CAN/CSA considerations and RoHS/REACH compliance, with documentation such as datasheets and instructional manuals to support audits, procurement, and regulatory affairs.
By preventing nuisance trips and premature motor shutdowns, CM-PVE reduces unplanned downtime and extends motor life. Its easy DIN rail installation lowers commissioning costs, while fixed thresholds simplify maintenance. Over time, you gain higher line availability, lower energy waste from transient faults, and faster troubleshooting, contributing to a favorable return on investment in continuous manufacturing environments.
