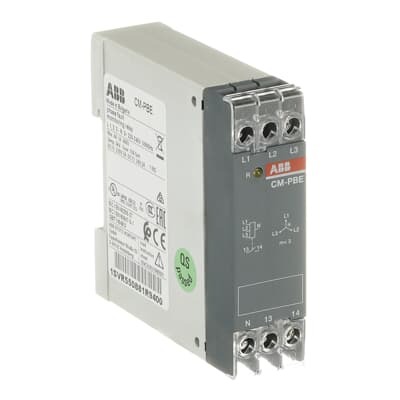

ABB 1SVR550881R9400 Phase Loss Monitoring Relay - UL 508
Part Number: 1SVR550881R9400
Quick Summary
Phase loss monitoring relay ABB 1SVR550881R9400 detects phase loss in three‑phase and single‑phase mains for industrial controls. Engineers often struggle with undetected undervoltage triggering unexpected trips and equipment damage. UL 508, CE and UKCA certifications support compliant integration in modern panels and global operations. Coupled with DIN rail mounting and screw-terminal wiring, it delivers reliable phase monitoring without complexity. This translates to reduced downtime, safer motor control, and faster compliance across industrial environments. Designed for 220-240 V AC control and 50/60 Hz supply, it aligns with most modern automation architectures. With fixed thresholds and a compact 22.5 mm width, installation fits densely packed control cabinets.
Product Information
Extended Description
1SVR550881R9400 ABB: The CM-PBE relay is from the CM three-phase monitors range. This relay operates with a rated control supply voltage / three-phase measuring voltage of 220-240 V AC and has a 1 n/o output (closed circuit principle) with contacts rated at 250 V / 4 A. The CM-PBE monitors the phase loss and undervoltage. The corresponding threshold values are fixed. The relay is suitable for monitoring of single- or three phase with neutral mains.
EAN
4013614350498
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Data sheet - CM-PBE Three-phase monitoring relays
Instructions and Manuals
Instruction Sheet / Manual - CM-PBE, CM-PFE, CM-PFE.2, CM-PVE Three-phase sequence monitoring relay
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
22.5 mm
Product Net Height
78 mm
Product Net Depth / Length
78.5 mm
Product Net Weight
0.066 kg
Function
Phase failure detection | Interrupted neutral monitoring
Sub-Function
Phase loss
Measuring Range
(L-L) 380 ... 440 V AC | (L-N) 220 ... 240 V AC
Time Range
500 ms start-up delay | 150 ms tripping delay
Rated Control Supply Voltage (Us)
(L-L) 380 ... 440 V AC | (L-N) 220 ... 240 V AC
Rated Frequency (f)
Supply Circuit 50/60 Hz
Output
1 n/o contact
Terminal Type
Screw Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 4 A
Rated Operational Current AC-15 (Ie)
(230 V) 3 A
Rated Operational Current DC-12 (Ie)
(24 V) 4 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit 4 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 400 V
Degree of Protection
Housing IP50 | Terminals IP20
Overvoltage Category
III
Pollution Degree
3
Short-Circuit Protective Devices
Output Circuit NC - F Type Fuses 10 A | Output Circuit NO - F Type Fuses 10 A
Connecting Capacity
Flexible with Ferrule 2x 0.75 ... 1.5 mm² | Flexible 2x 1 ... 1.5 mm² | Rigid 2x 0.75 ... 1.5 mm²
Tightening Torque
0.6 ... 0.8 N·m
Wire Stripping Length
10 mm
Mounting Position
1 ... 6
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | UL 508
Maximum Operating Voltage UL/CSA
Output Circuit 250 V AC
Contact Rating UL/CSA
B300
Connecting Capacity UL/CSA
Flexible with Ferrule 2x 18-16 AWG | Flexible 2x 18-16 AWG | Rigid 2x 18-16 AWG
Tightening Torque UL/CSA
7.08 in·lb
Pilot Duty UL/CSA
B300
Ambient Air Temperature
Operation -20 ... +60 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
b3388d08-0e78-4c87-916b-2857dd9f20f7 Germany (DE)
Simplified SCIP
f405e86b-a0e7-46c0-9e84-a31083eddd0d Germany (DE) | 40b08846-17e3-4c2e-b3ef-117be45f751b Poland (PL) | 05d40a35-4f8d-47d7-92f2-e61413942b25 Denmark (DK) | f24e031d-1c00-4eb8-99b6-938fbba3bea5 Germany (DE) | 8674d20a-8138-4db3-a912-eabaf267e9a5 Finland (FI) | 2a40256d-88c5-4f69-86c0-7fa9e96af47e Czech Republic (CZ) | b2fa228b-66cc-40aa-8b60-8c180239c815 Poland (PL) | e68a1ace-24fd-45fd-a326-ee9248297841 France (FR) | 6350685f-5690-4751-8911-93353e219179 Germany (DE) | 6240ceb2-b1cc-4d16-a265-69fdeda7b024 Hungary (HU) | b924531f-26f2-4eed-86f0-708d820f7528 Spain (ES) | bf675e2f-fc07-44fb-865a-5b65c1996f2d Estonia (EE) | e309ca6c-d9de-4c11-92a7-856be7c625b4 Sweden (SE) | b1a17e79-34e9-42bc-b582-fe5bb57f8b56 Italy (IT) | d11296b2-081d-4bbb-aecd-1628830c034d Germany (DE) | 2c4d1109-5288-4eb9-810f-7c12e29dacd4 Netherlands (NL) | a80ef049-d958-4ca8-8f01-924438cbe1af Norway (NO) | 9644bad3-42f6-4467-be9e-019c5c5264d2 Croatia (HR) | db3a0a69-fbd8-49ae-91d9-f66b1fe58cb7 Sweden (SE) | cceae64b-c968-4aa0-8966-84a9cb8671ad France (FR) | b42bce03-4c05-4c0b-ae0d-91e30c832300 Greece (GR) | 7011d538-a265-41c4-b40f-2a2ebf3ca0ba Portugal (PT) | 4d3cf70c-c755-4870-90e2-4bb83dbfcff0 Hungary (HU) | 3a05fc70-9670-4bd4-80c6-15c7f7f1b588 Belgium (BE) | 4f5ea56e-2a1b-4097-949c-a0242c24ee2e Belgium (BE) | 40c3198c-7492-4d66-8da3-e9ab4ac807e8 Bulgaria (BG) | f8eefe35-1a12-4521-b8e3-bb741a80f262 Poland (PL)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
CB Certificate
CB_DK-8880
CCC Certificate
CCC Certificate - Measuring and Monitoring Relays CM-E range
CQC Certificate
CQC Certificate, Electronic Measuring and Monitoring Relays, CM-PFE, CM-PVE, CM-PBE, CM-MSE, CM-ENE MAX, CM-ENE MIN, Made in Bulgaria
cUL Certificate
cUL508_E140448
Declaration of Conformity - CCC
CCC Declaration of Conformity, Electronic Measuring and Monitoring Relays, CM-PFE, CM-PVE, CM-PBE, CM-MSE, CM-ENE MAX, CM-ENE MIN, Made in Bulgaria
Declaration of Conformity - CE
EU Declaration of Conformity - CM-PBE, CM-PVE Three-phase monitoring relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CM-PBE, CM-PVE Three-phase monitoring relay
UL Certificate
UL Certificate (UL 508) - CT-E, CT-S range time relays, CM and C51x range measuring and monitoring relays , C57x and C67xx range safety relays, CC-U range analog signal converters with relay output
Package Level 1 Units
box 1 piece
Package Level 1 Width
23 mm
Package Level 1 Depth / Length
82 mm
Package Level 1 Height
82 mm
Package Level 1 Gross Weight
0.078 kg
Package Level 1 EAN
4013614350498
Object Classification Code
B
ETIM 7
EC001441 - Phase monitoring relay
ETIM 8
EC001441 - Phase monitoring relay
ETIM 9
EC001441 - Phase monitoring relay
eClass
V11.0 : 27371803
UNSPSC
39122332
E-Number (Finland)
2712853
E-Number (Norway)
4187168
E-Number (Sweden)
3860175
