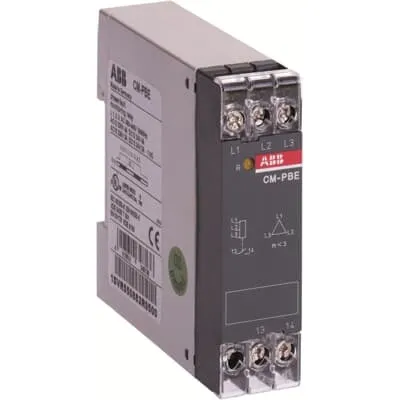

ABB 1SVR550882R9500 Phase loss monitoring relay - UL 508
Part Number: 1SVR550882R9500
Quick Summary
Phase loss monitoring relay CM-PBE detects phase absence in three‑phase systems to protect motors and drives in industrial automation. Engineers often face undetected phase loss that leads to motor stalls, nuisance trips, and costly downtime; this device provides reliable protection with fixed thresholds. The ABB CM-PBE carries UL 508 certification, as well as CE and UKCA marks, ensuring robust compliance across global facilities. With a compact DIN-rail form factor, screw-terminal wiring, and a straightforward install, it delivers predictable protection while simplifying panel design and maintenance workflows. In short, it combines precise monitoring with ease of integration for electrical protection and reliability in production environments.
Product Information
Extended Description
1SVR550882R9500 ABB: The CM-PBE relay is from the CM three-phase monitors range. This relay operates with a rated control supply voltage / three-phase measuring voltage of 380-440 V AC and has a 1 n/o output (closed circuit principle) with contacts rated at 250 V / 4 A. The CM-PBE monitors the phase loss and undervoltage. The corresponding threshold values are fixed. The relay is suitable for monitoring of three phase mains.
EAN
4013614348136
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Data sheet - CM-PBE Three-phase monitoring relays
Instructions and Manuals
Instruction Sheet / Manual - CM-PBE, CM-PFE, CM-PFE.2, CM-PVE Three-phase sequence monitoring relay
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
22.5 mm
Product Net Height
78 mm
Product Net Depth / Length
78.5 mm
Product Net Weight
0.066 kg
Function
Phase failure detection
Sub-Function
Phase loss
Measuring Range
(L-L) 380 ... 440 V AC
Time Range
500 ms start-up delay | 150 ms tripping delay
Rated Control Supply Voltage (Us)
(L-L) 380 ... 440 V AC
Rated Frequency (f)
Supply Circuit 50/60 Hz
Output
1 n/o contact
Terminal Type
Screw Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 4 A
Rated Operational Current AC-15 (Ie)
(230 V) 3 A
Rated Operational Current DC-12 (Ie)
(24 V) 4 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A
Rated Impulse Withstand Voltage (Uimp)
Input Circuit 4 kV
Rated Insulation Voltage (Ui)
Input Circuit / Output Circuit 400 V
Degree of Protection
Housing IP50 | Terminals IP20
Overvoltage Category
III
Pollution Degree
3
Short-Circuit Protective Devices
Output Circuit NC - F Type Fuses 10 A | Output Circuit NO - F Type Fuses 10 A
Connecting Capacity
Flexible with Ferrule 2x 0.75 ... 1.5 mm² | Flexible 2x 1 ... 1.5 mm² | Rigid 2x 0.75 ... 1.5 mm²
Tightening Torque
0.6 ... 0.8 N·m
Wire Stripping Length
10 mm
Mounting Position
1 ... 6
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61000-6-2 | IEC/EN 61000-6-3 | UL 508
Maximum Operating Voltage UL/CSA
Output Circuit 250 V AC
Contact Rating UL/CSA
B300
Connecting Capacity UL/CSA
Flexible with Ferrule 2x 18-16 AWG | Flexible 2x 18-16 AWG | Rigid 2x 18-16 AWG
Tightening Torque UL/CSA
7.08 in·lb
Pilot Duty UL/CSA
B300
Ambient Air Temperature
Operation -20 ... +60 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
RoHS Declaration of conformity for Electronic Relays and Controls
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
c27962c6-0ecc-44d6-be23-41778211e40c Germany (DE)
Simplified SCIP
ebd985f6-f937-45f1-965d-4df01c29ab55 Germany (DE) | 60d975d2-e128-468f-9516-8ec56120001a Bulgaria (BG) | e9345811-c7f3-49c7-a1bd-e6bf721262d2 Hungary (HU) | 29ba1a64-5b51-43b1-9d56-3bf50944d7b8 Netherlands (NL) | bdbe4ebd-16cb-4235-805e-e482ba214b6a Greece (GR) | 1f6b0bb7-212d-4700-88b8-6ad8354a64bd Germany (DE) | cdb69ebf-07e8-46de-9ca8-b267acc7be56 Italy (IT) | 689fdce6-053c-4d2b-8584-a6896cad5ac3 Denmark (DK) | e1227712-6383-4546-a608-5f89c49063bc Poland (PL) | 0afde915-c050-4952-9eea-fc636cd36ac2 Germany (DE) | c69aa0f0-7469-4915-9acd-ce10100704df Czech Republic (CZ) | 633fccb8-6bac-45b0-a220-2fc08bd657ac Poland (PL) | 545ebc09-b771-436f-be12-1c4c5dbd1917 Sweden (SE) | f30ab1da-3277-441e-bd70-bb3ca3267f67 Estonia (EE) | f26b97f8-4c3c-4fa5-9e26-44f588a3aacb Poland (PL) | 658e29a8-a12a-4e84-8481-9381f8c904c2 Norway (NO) | 5a179cbb-314e-48af-8cf6-80420fee3dd8 Spain (ES) | 015aadc8-9924-405b-9406-1a83b426420c France (FR) | 890fb0bd-ba9b-475d-b298-7102b0ac12cc Sweden (SE) | 5159f9fa-6b89-42d2-9ebd-a07a67bbb7af Croatia (HR) | b6b5a4c8-354e-4d1b-85c7-d284f4eec54d Hungary (HU) | 1856a9dc-ce18-4260-9d80-e08f7b4bda6d Belgium (BE) | 3e91dba8-a90f-4589-9663-b42fe383c03f France (FR) | 7ec23466-0c34-49a9-9124-73ff60ee6421 Portugal (PT) | d66fe3c5-1023-4d8f-8f86-d8a1ddeb7217 Germany (DE) | b5f9ea9b-d8fa-402c-99e6-65715dd3cbb3 Belgium (BE) | 32f2beeb-1caa-405a-8cea-c61dd97794d0 Finland (FI)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Electronic Relays and Controls
CB Certificate
CB_DK-8880
CCC Certificate
CCC Certificate - Measuring and Monitoring Relays CM-E range
CQC Certificate
CQC Certificate, Electronic Measuring and Monitoring Relays, CM-PFE, CM-PVE, CM-PBE, CM-MSE, CM-ENE MAX, CM-ENE MIN, Made in Bulgaria
cUL Certificate
cUL508_E140448
Declaration of Conformity - CCC
CCC Declaration of Conformity, Electronic Measuring and Monitoring Relays, CM-PFE, CM-PVE, CM-PBE, CM-MSE, CM-ENE MAX, CM-ENE MIN, Made in Bulgaria
Declaration of Conformity - CE
EU Declaration of Conformity - CM-PBE, CM-PVE Three-phase monitoring relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CM-PBE, CM-PVE Three-phase monitoring relay
UL Certificate
UL Certificate (UL 508) - CT-E, CT-S range time relays, CM and C51x range measuring and monitoring relays , C57x and C67xx range safety relays, CC-U range analog signal converters with relay output
Package Level 1 Units
box 1 piece
Package Level 1 Width
23 mm
Package Level 1 Depth / Length
82 mm
Package Level 1 Height
82 mm
Package Level 1 Gross Weight
0.078 kg
Package Level 1 EAN
4013614348136
Object Classification Code
B
ETIM 7
EC001441 - Phase monitoring relay
ETIM 8
EC001441 - Phase monitoring relay
ETIM 9
EC001441 - Phase monitoring relay
eClass
V11.0 : 27371803
UNSPSC
39122332
E-Number (Finland)
2712854
E-Number (Norway)
4187169
Feature: Phase failure detection with fixed thresholds detects phase loss and undervoltage in 380-440 V AC networks. Business Impact: Early fault detection reduces motor damage and unplanned downtime. Application: Three-phase mains protection in pumps, conveyors, and fans. Feature: 1 normally open output with 250 V / 4 A rating. Business Impact: Simple integration with PLCs and contactors reduces wiring complexity and improves fault signaling. Application: Control circuits for motor starters in automation panels. Feature: Measuring and control voltage range (L-L) 380-440 V AC and rated frequency 50/60 Hz. Business Impact: Fits common industrial power networks, minimizing configuration and risk. Application: Mains monitoring across diverse facilities. Feature: Compact DIN-rail mounting (TH35-15 or TH35-7.5) and screw terminals. Business Impact: Fast installation with reliable retention and clean panel layouts. Application: OEM panels and retrofit projects in automation environments. Feature: Rugged construction with IP50 housing and 0.6–0.8 N·m terminal torque. Business Impact: Enhanced environmental resilience and long service life in harsh factory settings. Application: Harsh production floors requiring dependable protection. Feature: Certifications and compliance (UL 508, CE, UKCA, RoHS). Business Impact: Ensures regulatory conformity and smoother audits, enabling faster time-to-production. Application: European and North American manufacturing lines seeking comprehensive compliance. Feature: Electrical protection features (impulse withstand 4 kV, insulation 400 V). Business Impact: Improved safety margins and reduced risk of secondary faults. Application: High-energy environments with strict electrical protection needs. Feature: Small footprint (22.5 mm width, 78 mm height) and lightweight (0.066 kg). Business Impact: Minimal cabinet intrusion and easier thermal management. Application: Replacement in crowded control panels and retrofits.
