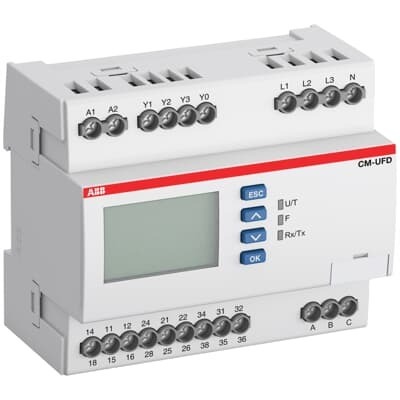

ABB 1SVR560731R3703 Grid feeding monitoring relay - DRRG
Part Number: 1SVR560731R3703
Quick Summary
ABB 1SVR560731R3703 Grid feeding monitoring relay protects renewables by disconnecting from the grid on abnormal voltages or frequencies. Engineers often battle grid instability and unexpected outages; this device provides automatic protection without manual intervention. It is CE and UKCA certified and aligned with DEWA DRRG requirements, with RoHS and TÜV references. By enabling Modbus RTU communications and cloud-enabled monitoring, it delivers measurable business value through improved reliability, faster fault diagnosis, and easier compliance across solar and wind projects.
Product Information
Extended Description
1SVR560731R3703 ABB: The CM-UFD.M34M is a multi-functional grid feeding monitoring relay with Modbus RTU communication interface, which provides interface protection and is to be installed between a renewable energy system and the public grid. This innovative relay guarantees grid stability and seeks to prevent blackouts. If the voltage or frequency magnitudes of the public grid are outside the permited range, then the device changes status and acts to disconnect the renewable energy system from the public grid by sending a signal to a decoupling unit (e.g. contactor, switch disconnector or circuit breaker). As soon as the grid is stable again, the system may automatically reconnected. The CM-UFD.M34M provides different monitoring functions including over-/undervoltage and over-/underfrequency as well as rate of change of frequency (RoCoF) and vector shift monitoring functions, which detect a loss of mains event. This grid feed monitoring relay is certified in accordance to DEWA requirements and may be connected to the state-of-the-art cloud solution, ABB Ability Energy and Asset Manager.
EAN
4013614521140
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Data sheet - CM-UFD.M34M and CM-UFD.M34 Grid feeding monitoring relay acc. to DEWA DRRG standard
Instructions and Manuals
Instruction Sheet / Manual - CM-UFD.M34(M) Grid feeding monitoring relay
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
108 mm
Product Net Height
90 mm
Product Net Depth / Length
67 mm
Product Net Weight
0.312 kg
Function
Over- and undervoltage monitoring | Interrupted neutral monitoring | Over- and underfrequency monitoring | 10 minutes average value monitoring | Vector shift detection | ROCOF monitoring
Measuring Range
0 ... 540 V AC
Rated Control Supply Voltage (Us)
24 ... 240 V AC/DC
Output
3 c/o (SPDT) contacts
Terminal Type
Screw Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 4 A
Rated Operational Current AC-15 (Ie)
(230 V) 3 A
Rated Operational Current DC-12 (Ie)
(24 V) 4 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A
Minimum Switching Capacity
24 V | 10 mA
Degree of Protection
Housing IP20 | Terminals IP20
Pollution Degree
3
Short-Circuit Protective Devices
Output Circuit NC - F Type Fuses 10 A | Output Circuit NO - F Type Fuses 10 A
Electrical Durability
AC-12 100000 cycle
Mechanical Durability
Nr. Operations 30000000 cycle
Connecting Capacity
Flexible with Ferrule 1x 0.25 ... 4.0 mm² | Flexible with Ferrule 2x 0.25 ... 0.75 mm² | Flexible with Insulated Ferrule 1x 0.25 ... 4.0 mm² | Flexible with Insulated Ferrule 2x 0.25 ... 0.75 mm² | Flexible 1x 0.2 ... 4.0 mm² | Flexible 2x 0.2 ... 1.5 mm² | Rigid 1x 0.2 ... 6.0 mm² | Rigid 2x 0.2 ... 1.5 mm²
Tightening Torque
0.5 ... 0.6 N·m
Wire Stripping Length
8 mm
Mounting Position
1 ... 6
Mounting on DIN Rail
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Standards
IEC/EN 63000 | IEC/EN 60255-26 | IEC/EN 60255-27 | IEC/EN 61000-6-3 | DRRG Standard (DEWA)
Connecting Capacity UL/CSA
Flexible with Ferrule 1x 24-12 AWG | Flexible with Ferrule 2x 24-18 AWG | Flexible with Insulated Ferrule 1x 24-12 AWG | Flexible with Insulated Ferrule 2x 24-18 AWG | Flexible 1x 24-12 AWG | Flexible 2x 24-16 AWG | Rigid 1x 24-10 AWG | Rigid 2x 24-16 AWG
Tightening Torque UL/CSA
4.4 ... 5.3 in·lb
Ambient Air Temperature
Operation -20 ... +60 °C | Storage -25 ... +50 °C
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Electronic Relays and Controls
RoHS Information
EU Declaration of Conformity - CM-UFD.M22M, CM-UFD.M31M, CM-UFD.M34M Grid feeding monitoring relays
RoHS Status
Following EU Directive 2011/65/EU
Declaration of Conformity - CE
EU Declaration of Conformity - CM-UFD.M22M, CM-UFD.M31M, CM-UFD.M34M Grid feeding monitoring relays
Declaration of Conformity - UKCA
UK Declaration of Conformity - CM-UFD.M22M, CM-UFD.M31M and CM-UFD.M34M Grid feeding monitoring relays
TÜV Certificate
TUEV_AoC_44254-14805-02
Package Level 1 Units
box 1 piece
Package Level 1 Width
121 mm
Package Level 1 Depth / Length
71 mm
Package Level 1 Height
99 mm
Package Level 1 Gross Weight
0.365 kg
Package Level 1 EAN
4013614521140
Object Classification Code
B
ETIM 7
EC001438 - Voltage monitoring relay
ETIM 8
EC001438 - Voltage monitoring relay
ETIM 9
EC001438 - Voltage monitoring relay
eClass
V11.0 : 27371801
The product combines multi-function voltage and frequency monitoring with ROCOF and vector shift detection to safeguard grid interfacing between renewable energy sources and the public grid. This feature-set reduces blackout risk and helps utilities maintain grid stability, which translates to higher energy availability and lower outage-related penalties in utility-scale plants. The Modbus RTU interface enables remote supervision and data integration with ABB Ability Energy and Asset Manager, supporting proactive maintenance and operational analytics for asset-intensive installations. Automatic disconnect and reconnection when grid conditions change ensures safety and compliance with grid codes while minimizing downtime for solar and wind assets. Its 0 … 540 V AC measuring range and 24 … 240 V control supply voltage simplify integration into existing control panels and control circuitry, reducing engineering time and wiring complexity. Built for DIN rail mounting (TH35), it fits standard panel designs, supports modular expansion, and streamlines retrofits in mature installations. The device’s robust durability specs—IP20 housing, 100,000 AC-12 cycles, and 30,000,000 mechanical cycles—provide long-term reliability in demanding environments and lower total cost of ownership. RoHS, CE, UKCA, and DRRG (DEWA) certifications reinforce regulatory compliance and risk mitigation for critical infrastructure projects.
Get a Quick Quote for a ABB 1SVR560731R3703
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR560731R3703?
Enquire Now
FAQs
Installation is straightforward on standard TH35 DIN rails. The unit supports mounting on TH35-7.5 and TH35-15 rails, with screw terminals and a 0.5-0.6 N·m tightening torque. Ensure proper wire sizing (0.2-6.0 mm² depending on conductor type) and follow the terminal stripping length of 8 mm. This simplifies retrofits and minimizes cabinet space impact while maintaining reliable electrical connection.
The relay monitors over- and undervoltage, over- and underfrequency, RoCoF, and vector shift, along with 10-minute average value monitoring. When the public grid deviates outside permitted ranges, it commands a decoupling unit to disconnect the renewable source, and it can automatically reclose once grid conditions normalize, ensuring grid stability and compliance with DRRG standards.
Yes, the CM-UFD.M34M family provides a Modbus RTU communication interface for remote supervision. This enables integration with ABB Ability Energy and Asset Manager, SCADA, and other industrial systems, allowing operators to monitor voltage, frequency, and device status remotely, collect performance data, and trigger maintenance alerts without onsite visits.
This relay carries CE and UKCA declarations of conformity, is RoHS compliant, and aligns with DRRG DEWA requirements. It also includes TÜV reference and supports IEC/EN standards such as IEC/EN 63000, IEC/EN 60255-26, and IEC/EN 61000-6-3, ensuring regulatory compliance and reliability in utility-scale and industrial environments.
By preventing grid instability and enabling automatic disconnection/reconnection, the relay reduces downtime, protects critical energy assets, and lowers outage penalties. Its long mechanical and electrical durability, combined with remote monitoring via Modbus RTU, reduces maintenance visits and enables predictive service, improving overall asset availability and lowering total cost of ownership.
